Product description
Technical Specification

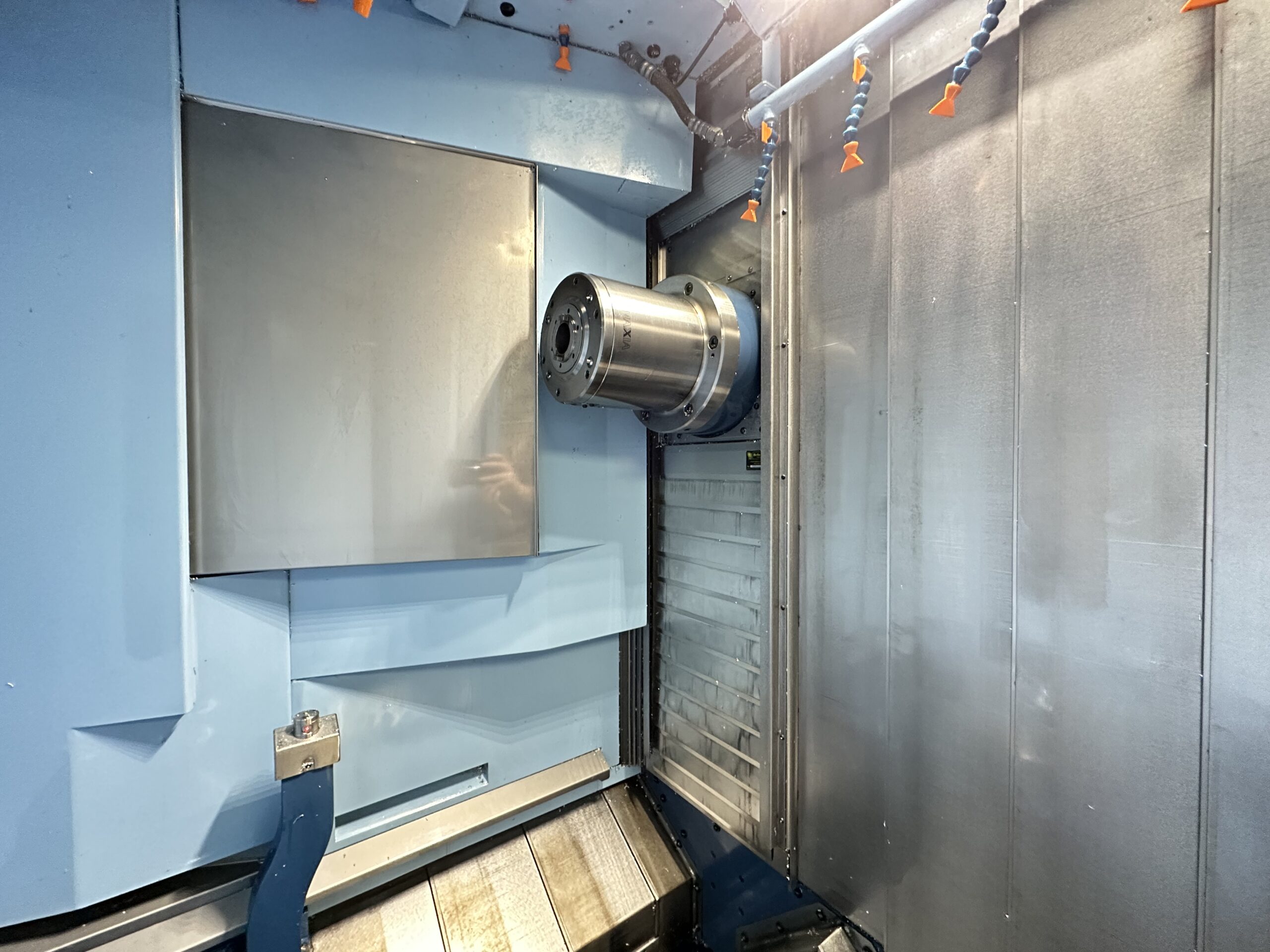

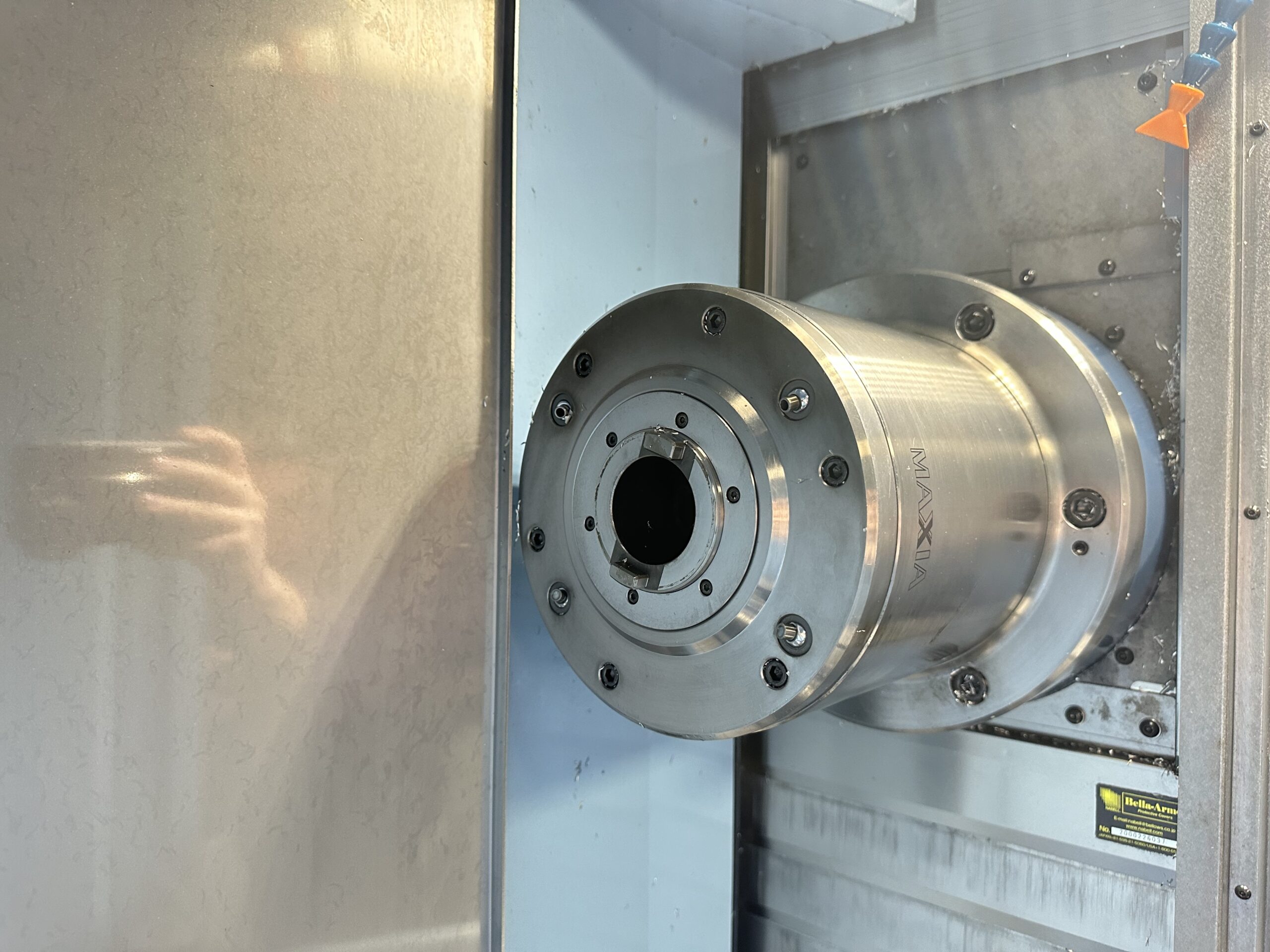

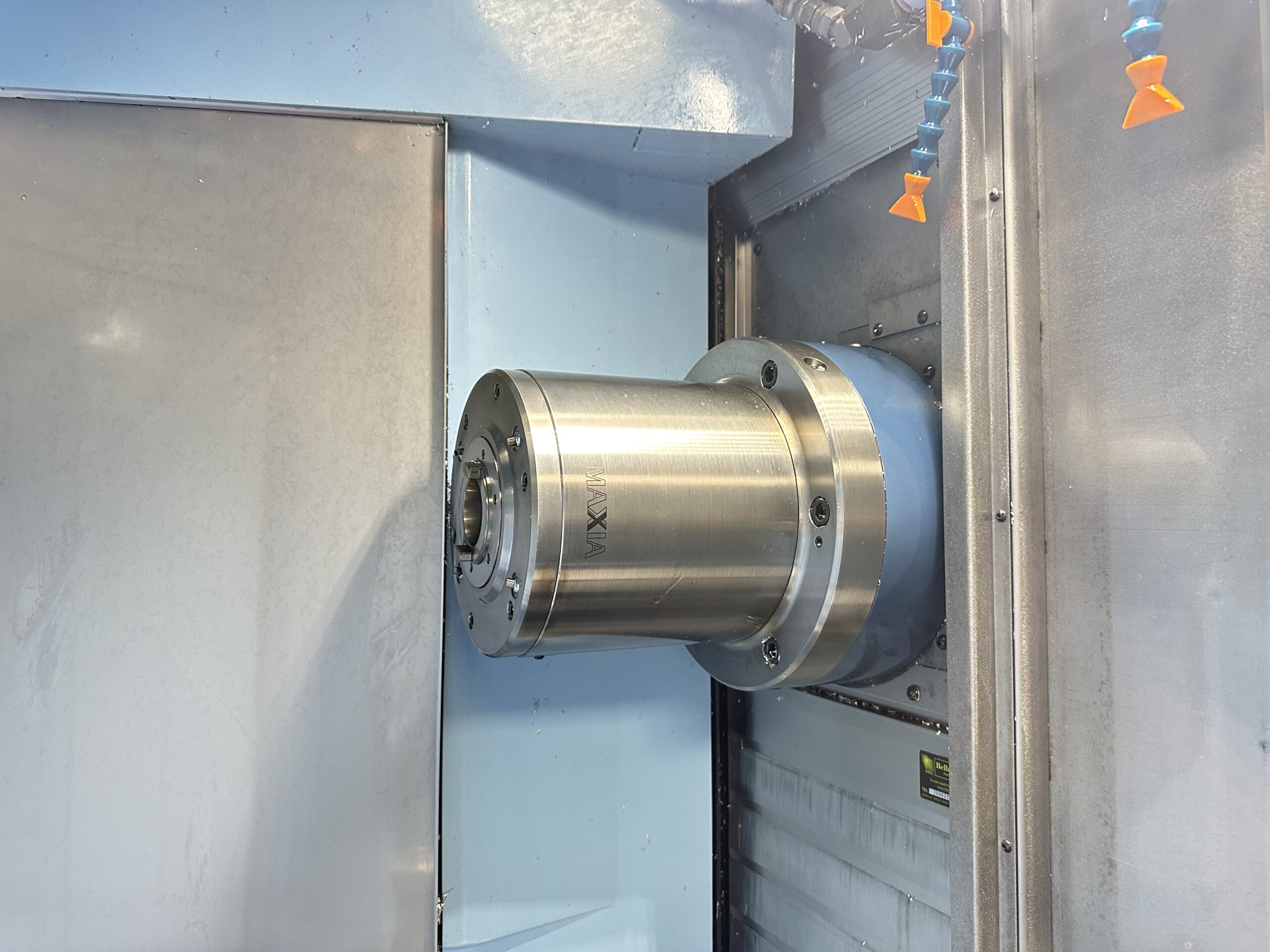

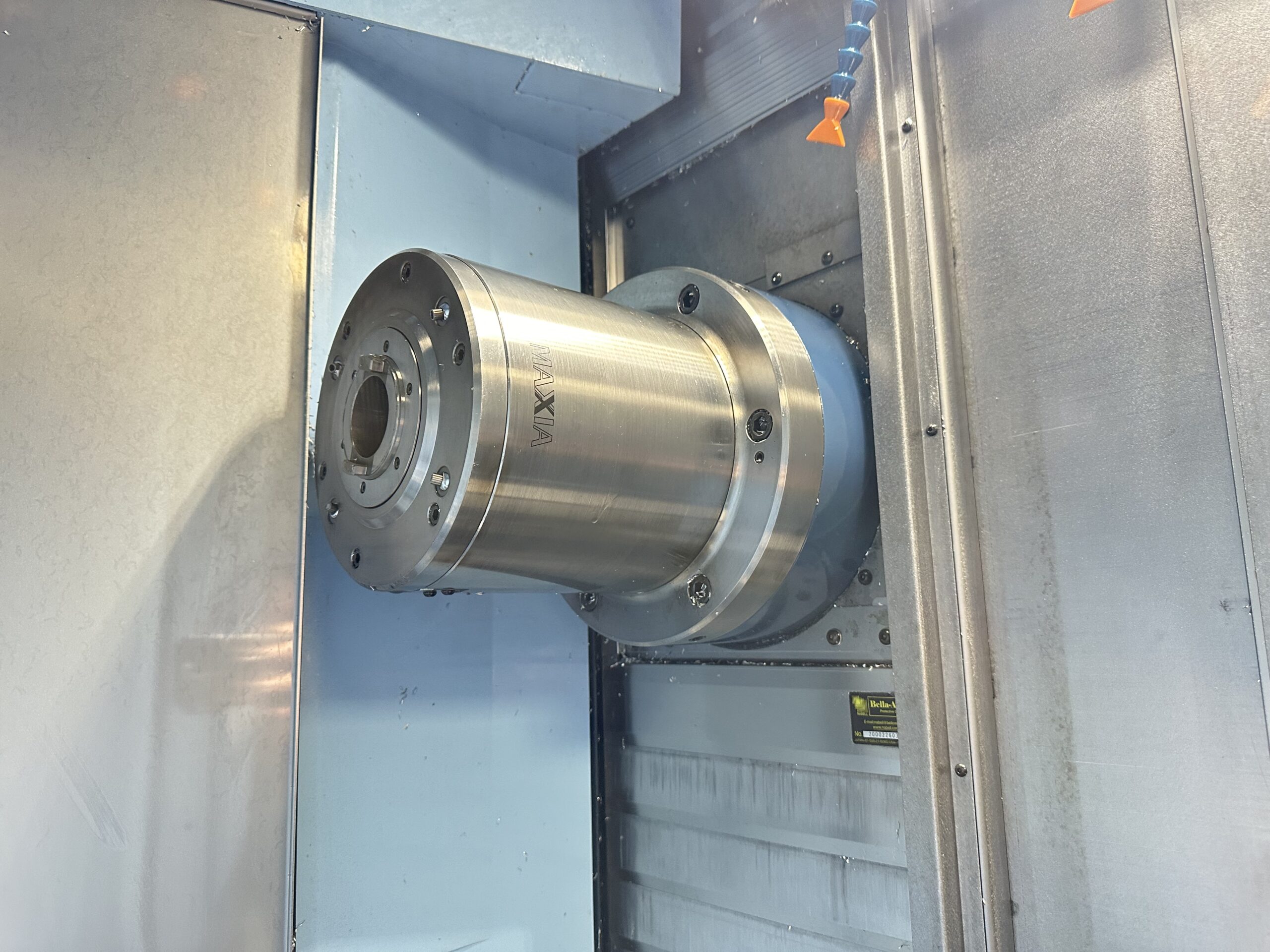

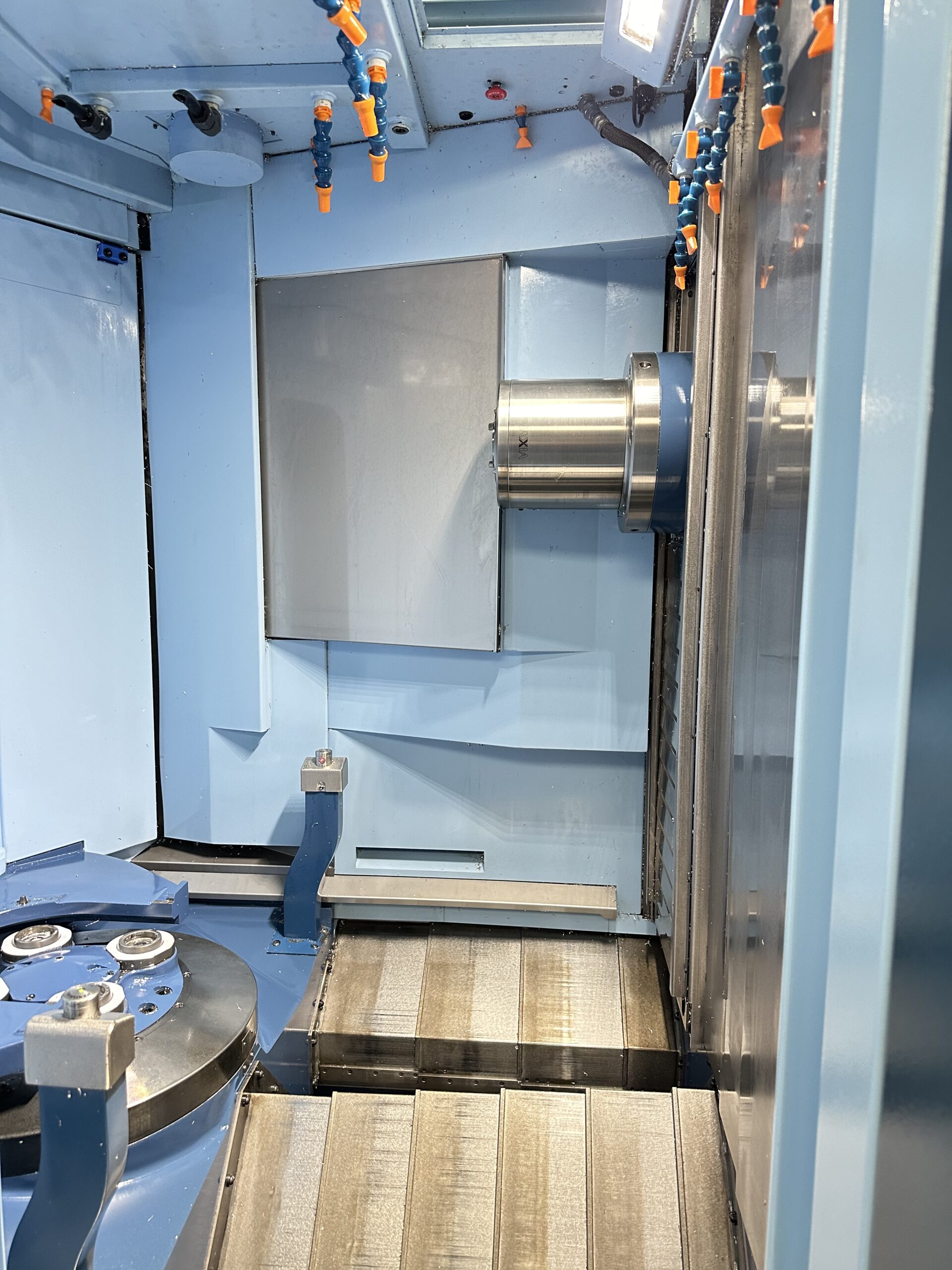

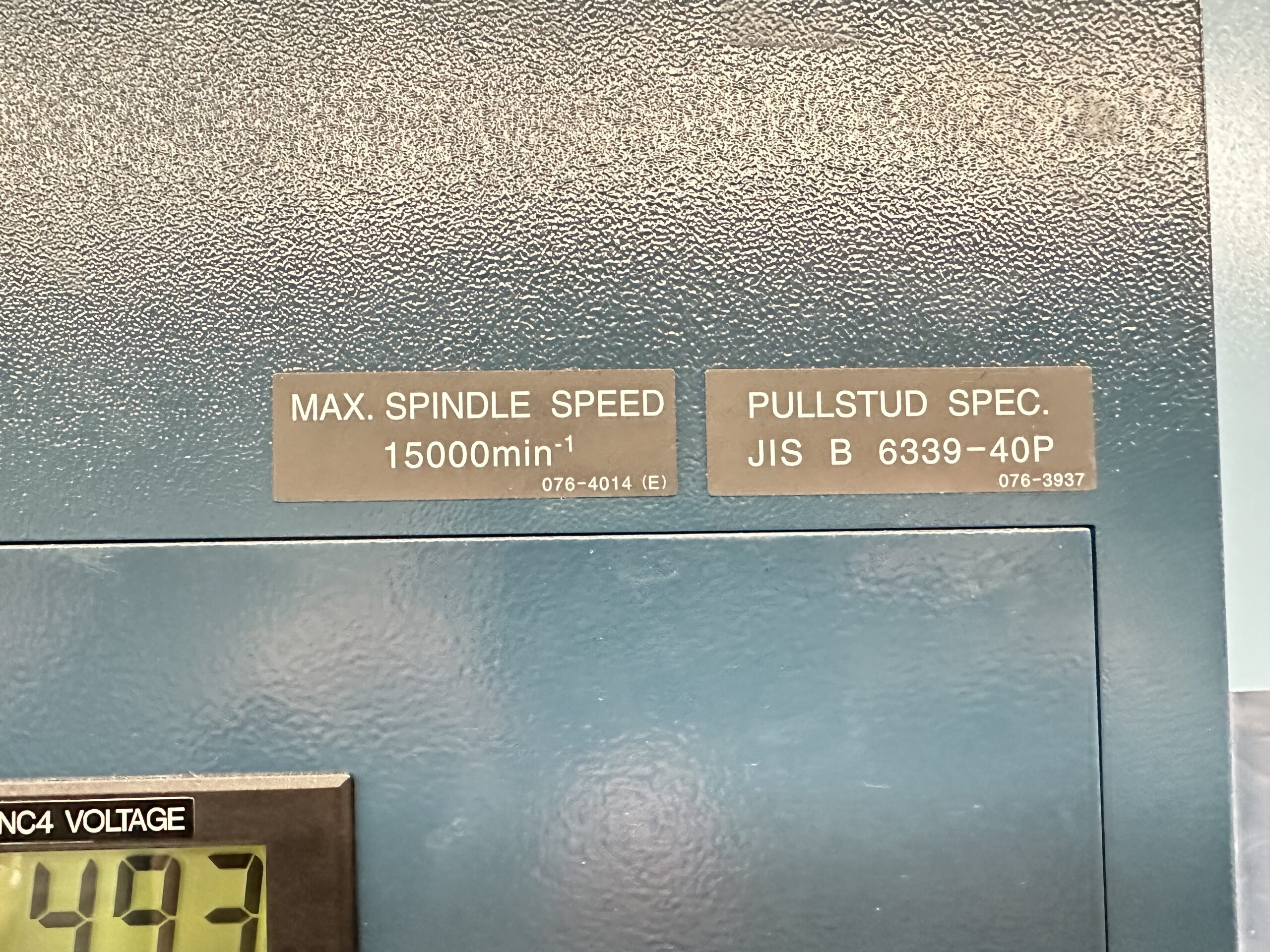

15000rpm BT40

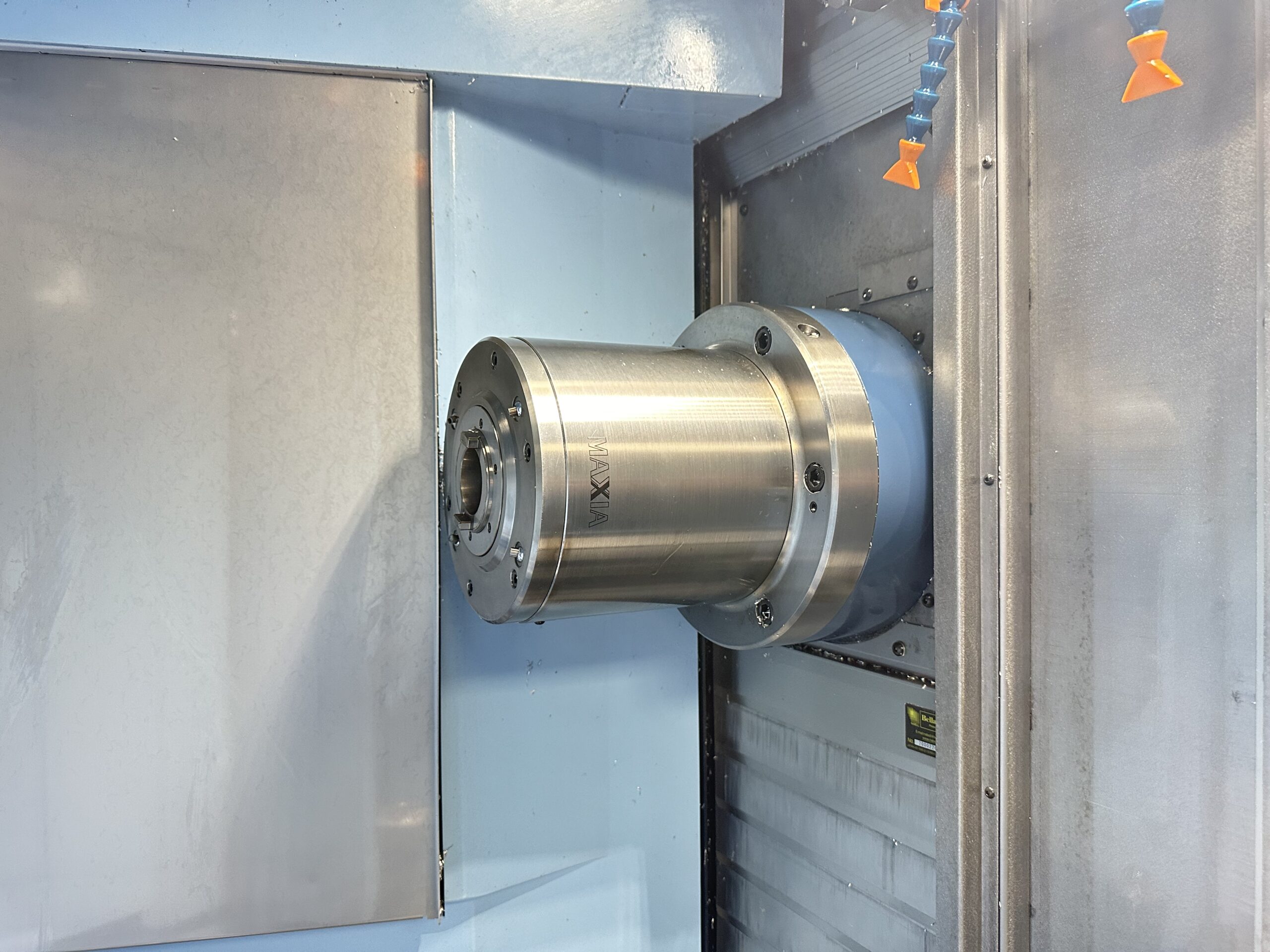

Big Plus Spindle
Machine Capacity: X = 500mm / Y = 560mm / Z = 500mm
Distance from Pallet Centre to Spindle Gauge Line 70mm – 570mm
Distance from Pallet Surface to Spindle Centre 80mm – 640mm
60m / min X, Y and Z Rapids
60m min Maximum Feedrates
Syncronised Tapping Function / Spindle Overload Protection
Spindle Oil Cooler / Chip Flow System / 9 Sets of M Code Part Counters

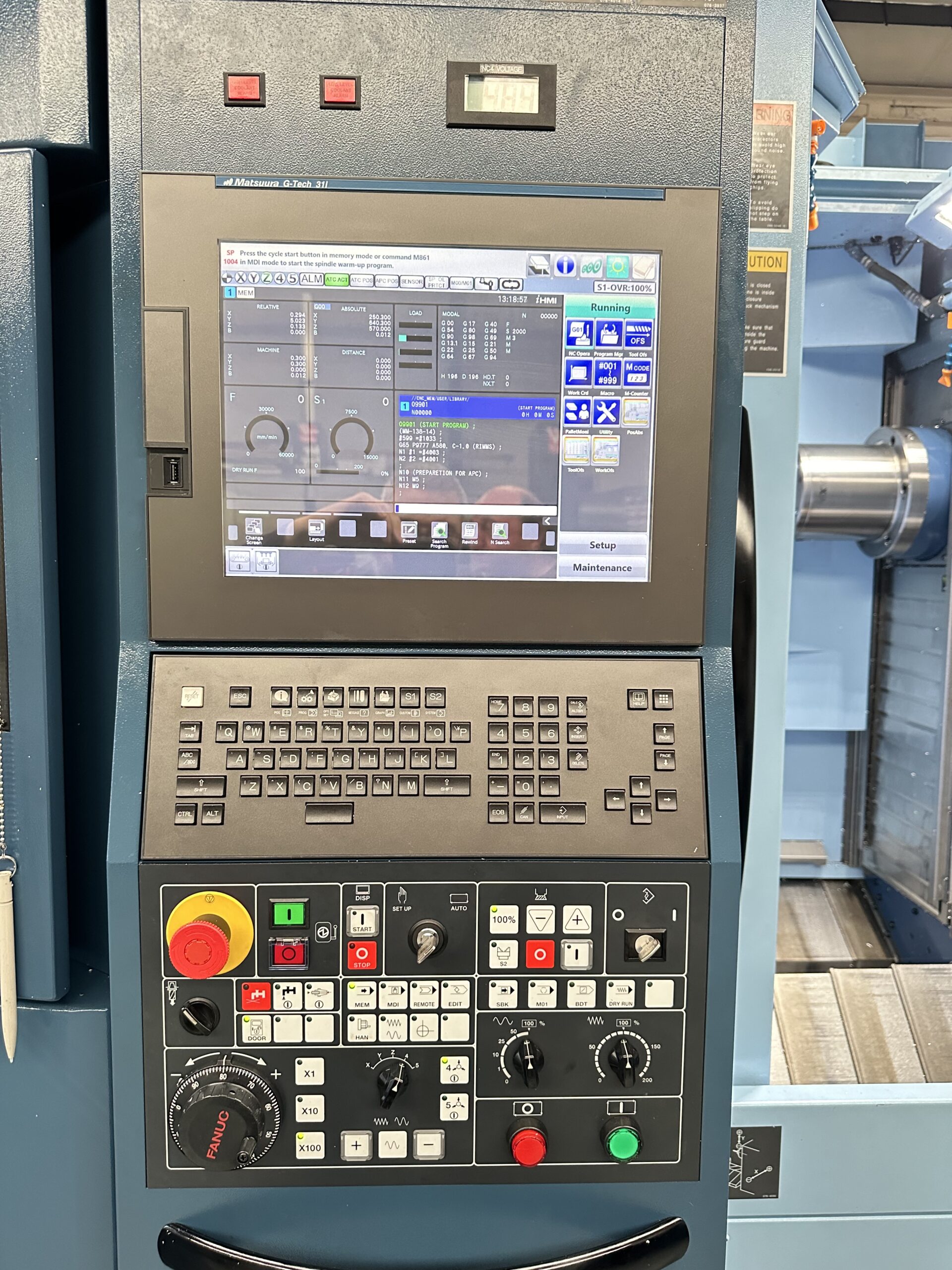

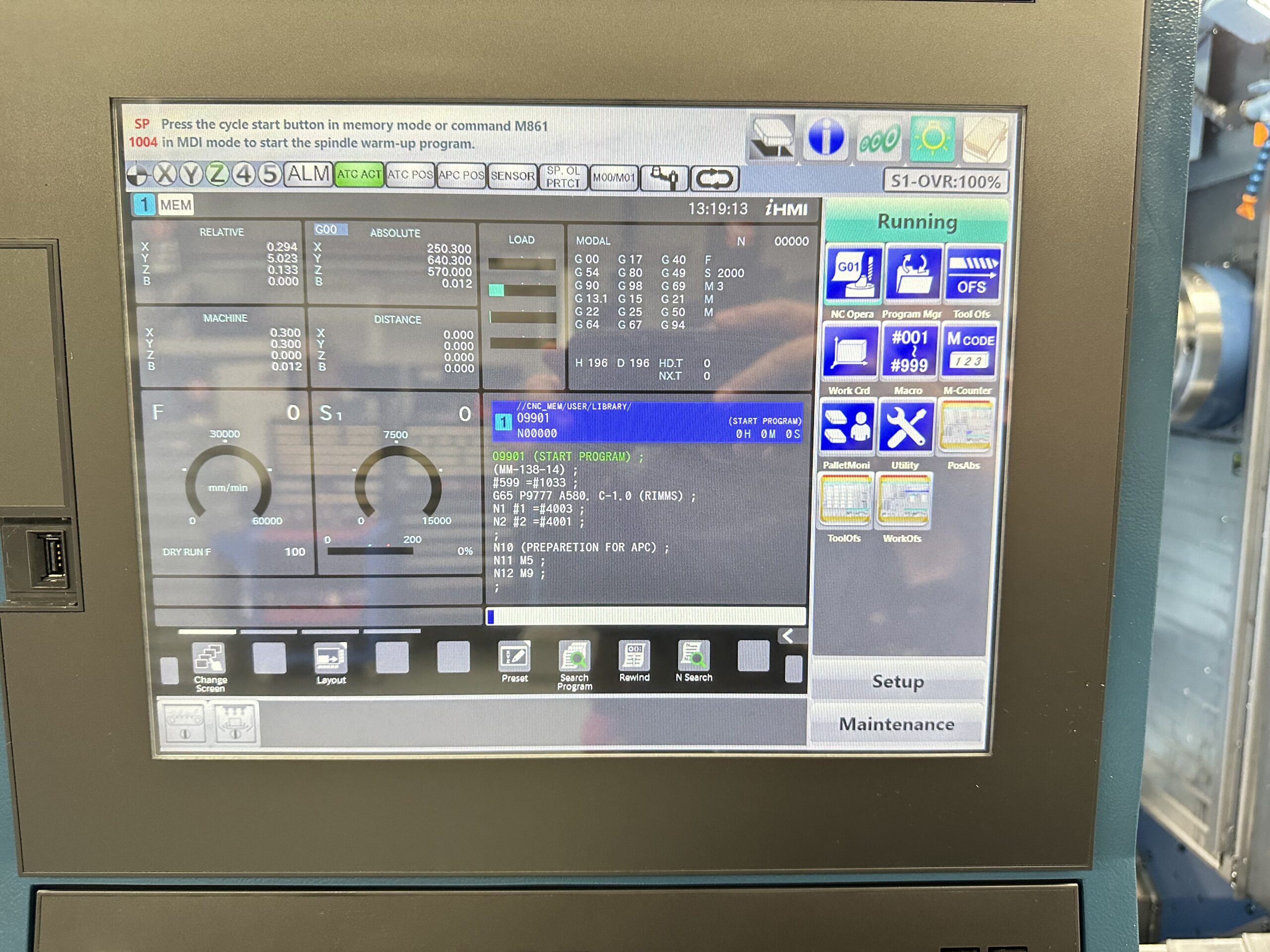

1Z-1/15F including AI Contour Control-I / Ethernet Function
Macro Program, G65 / Skip Function, G31 / Helical Interpolation
1,000 Registered Programs / 0.5MB Memory Capacity / Tool Offset Memory C

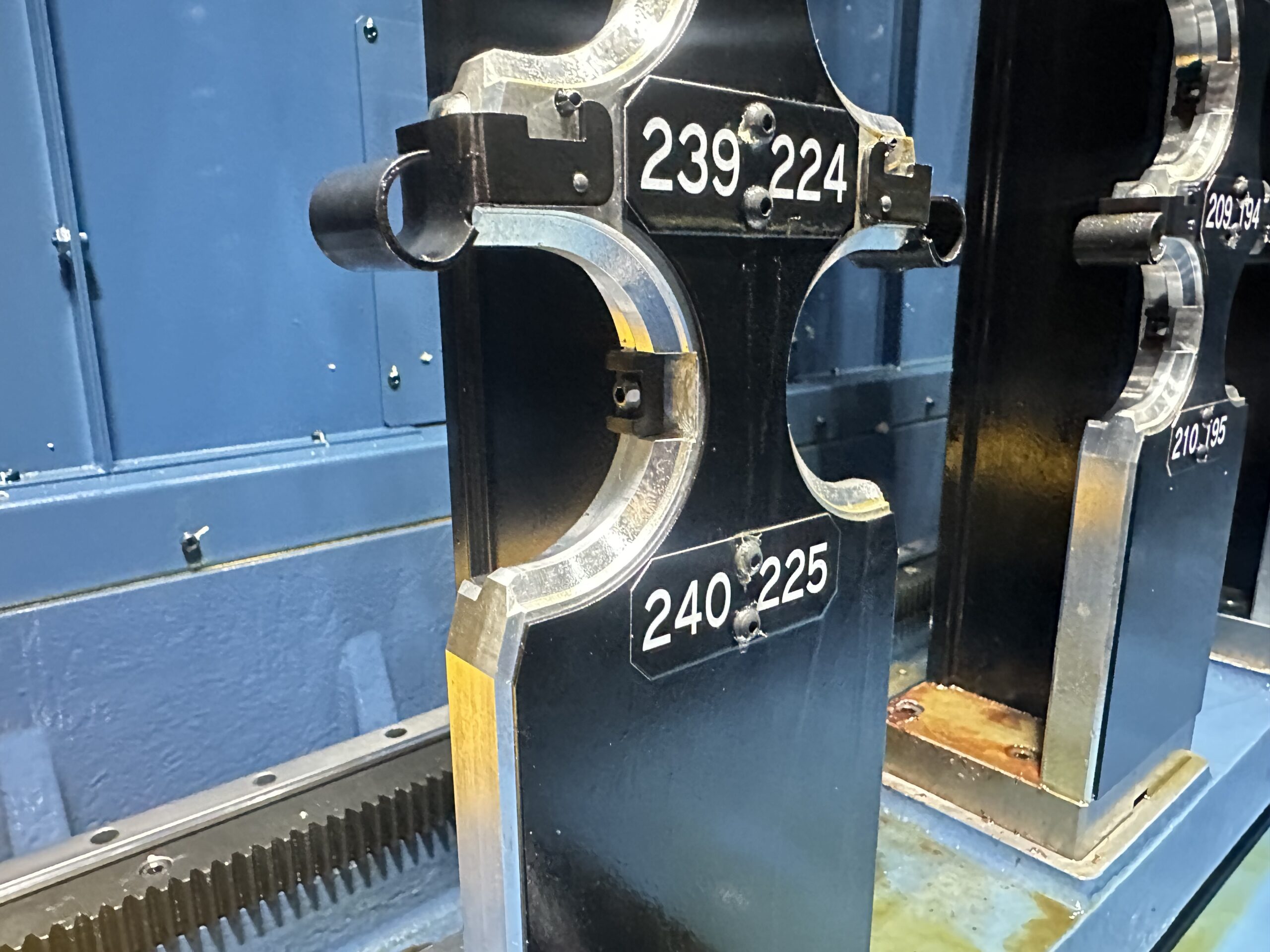

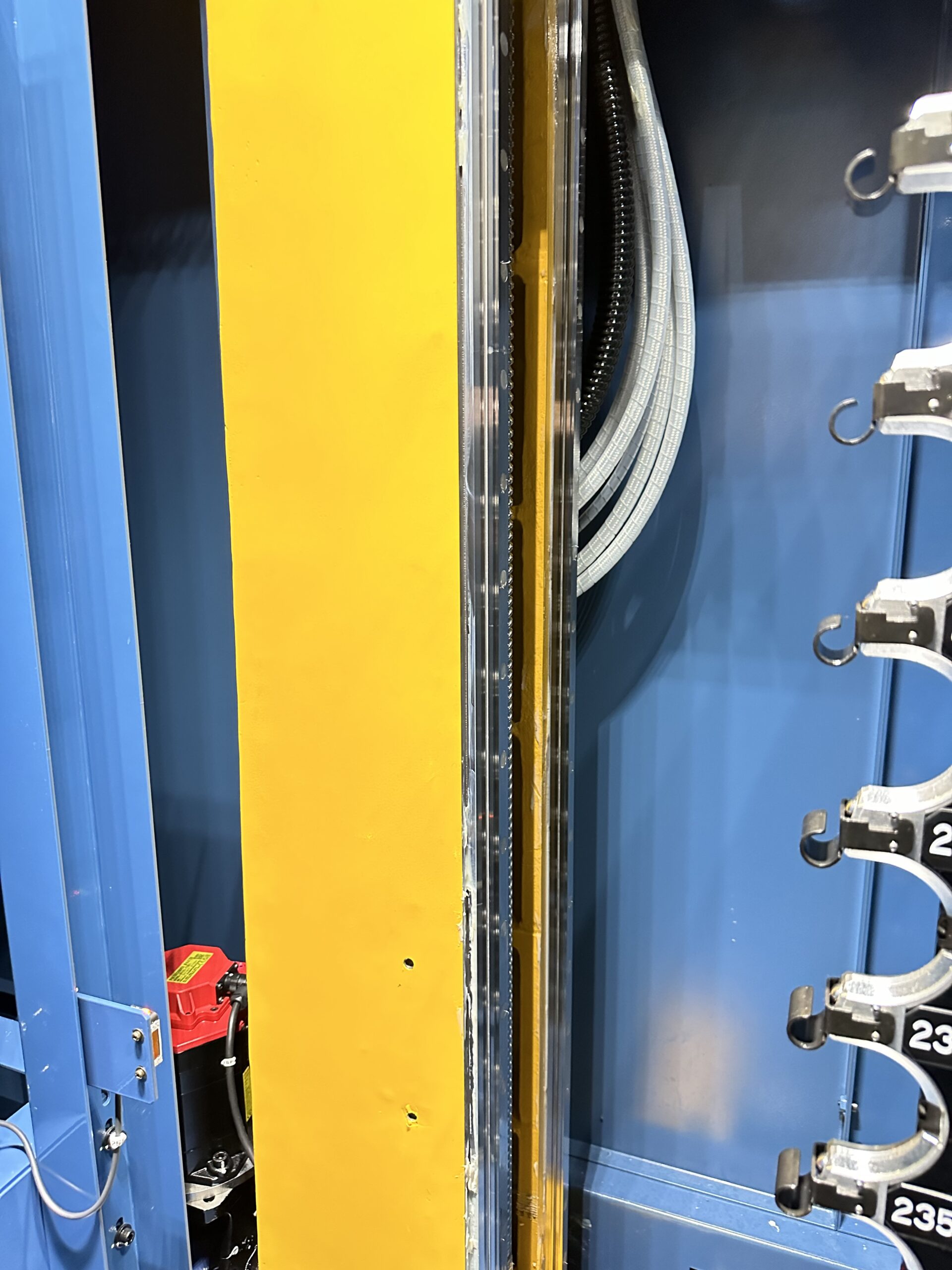

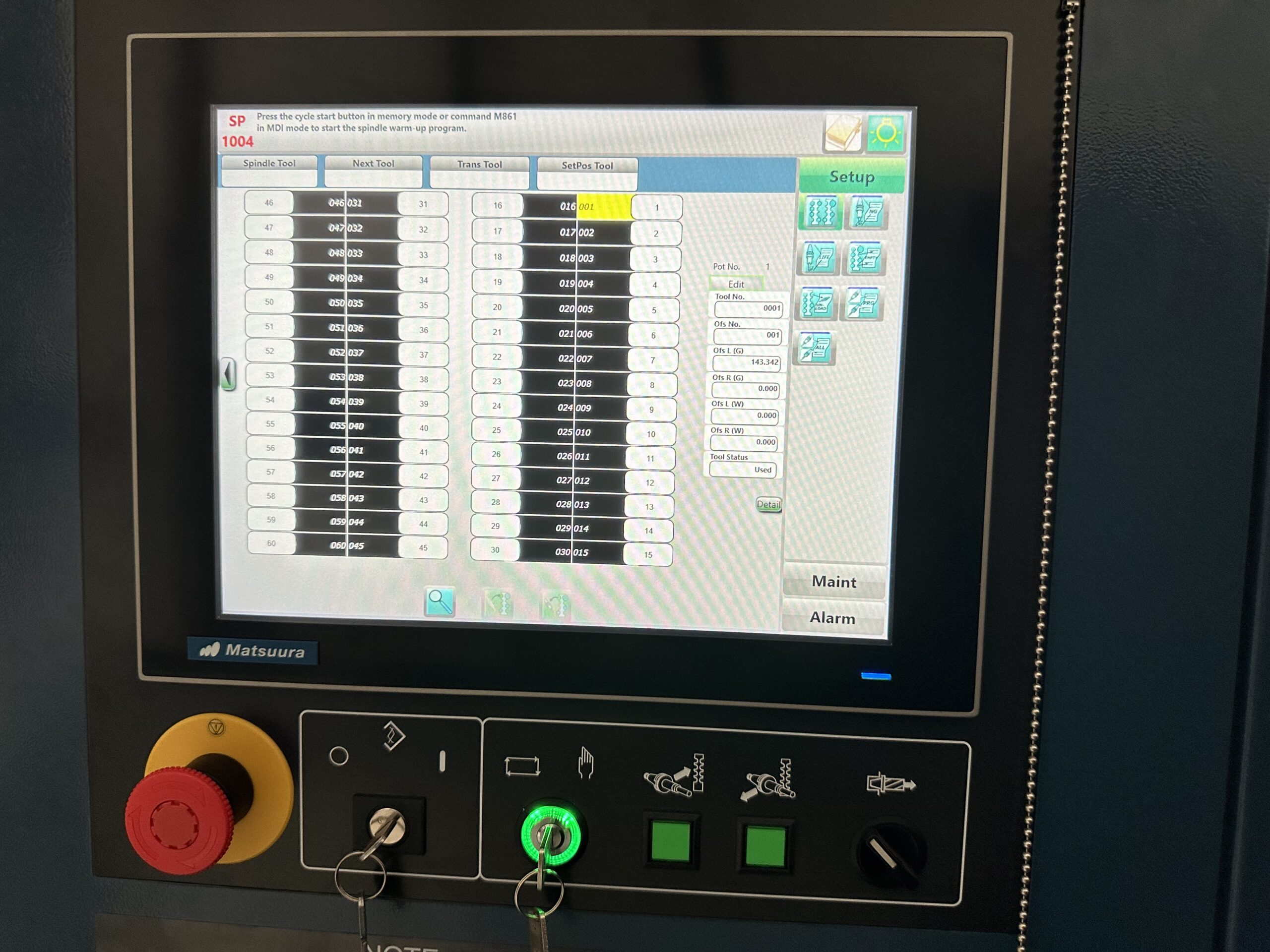

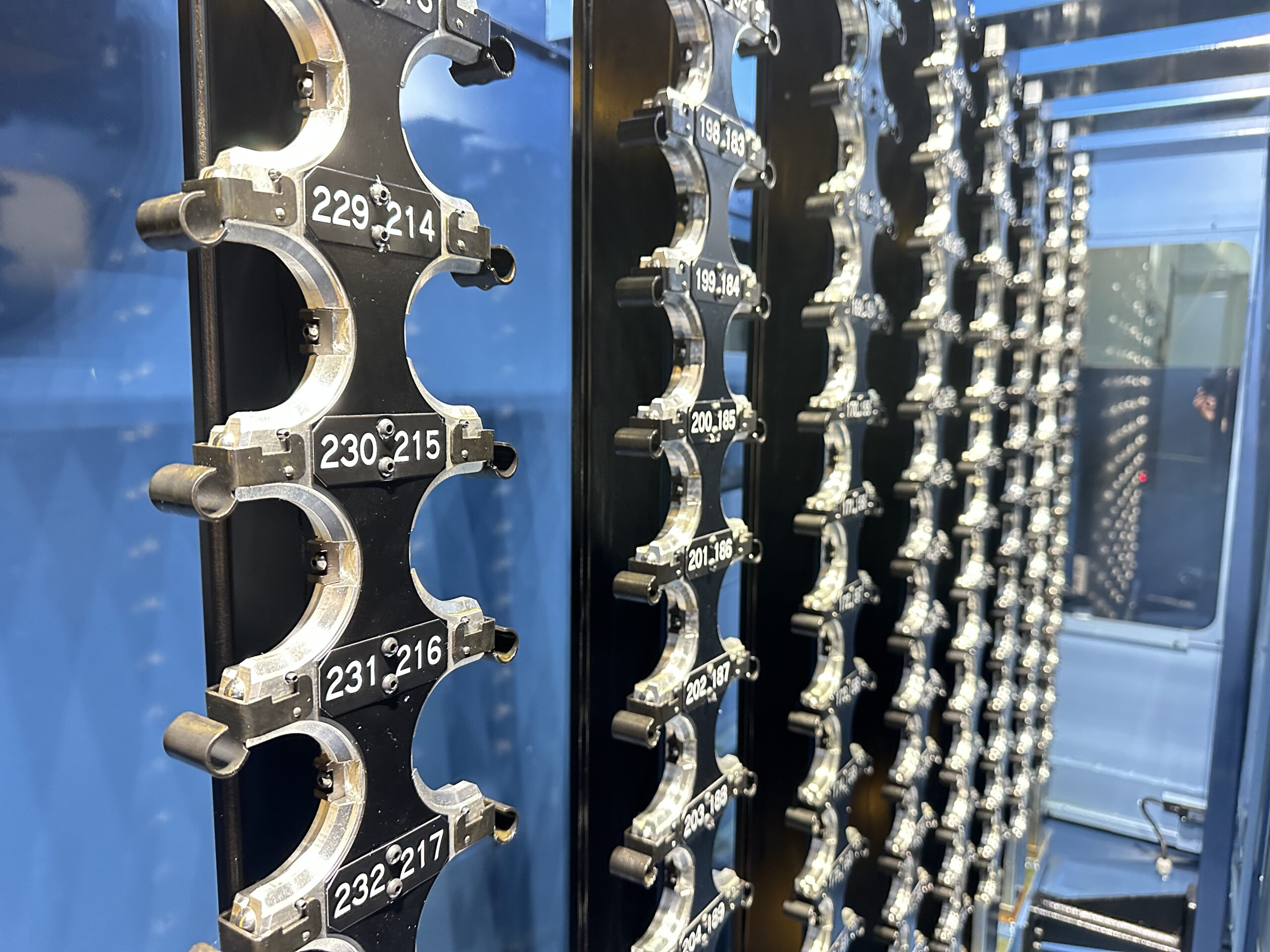

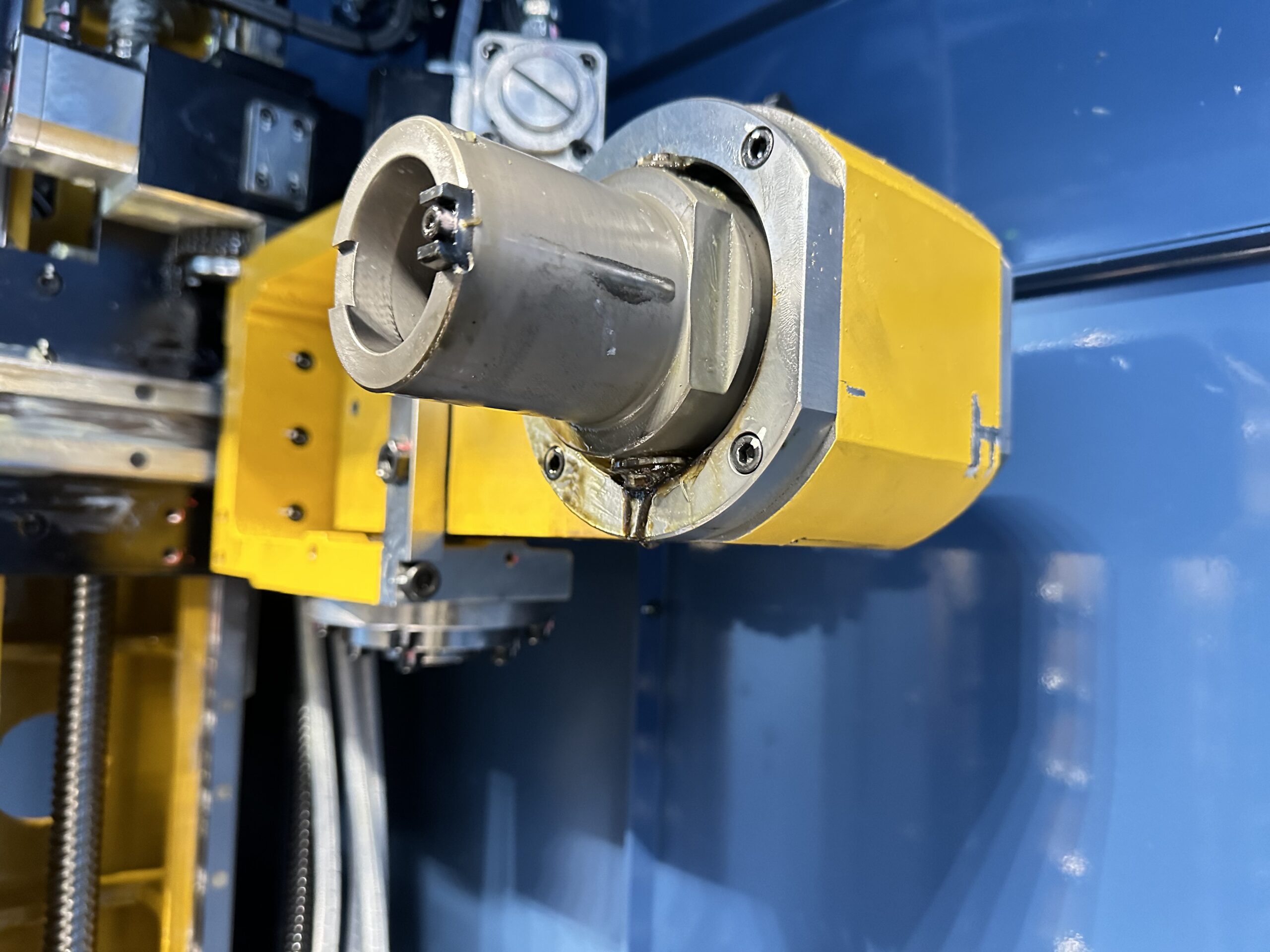

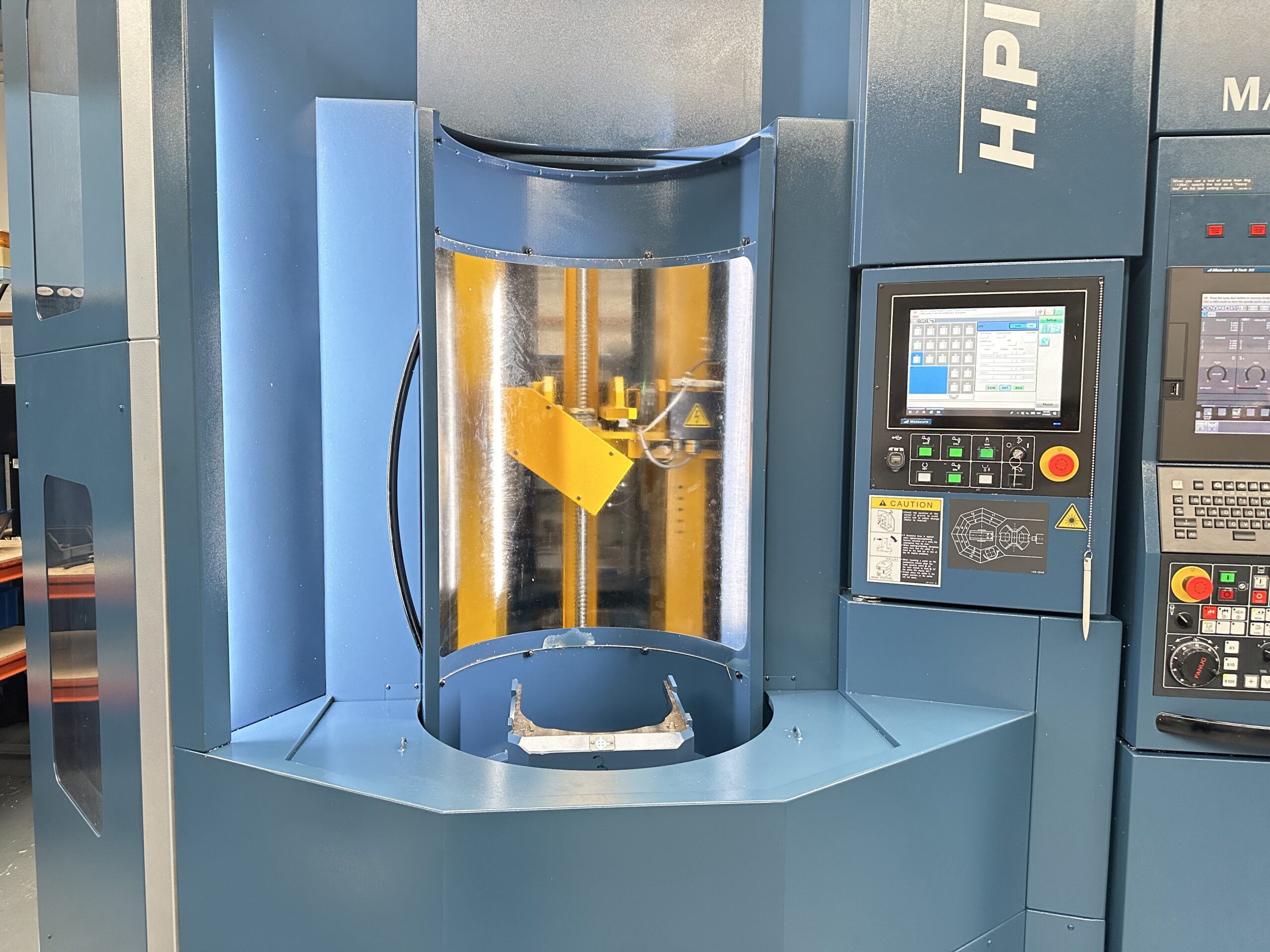

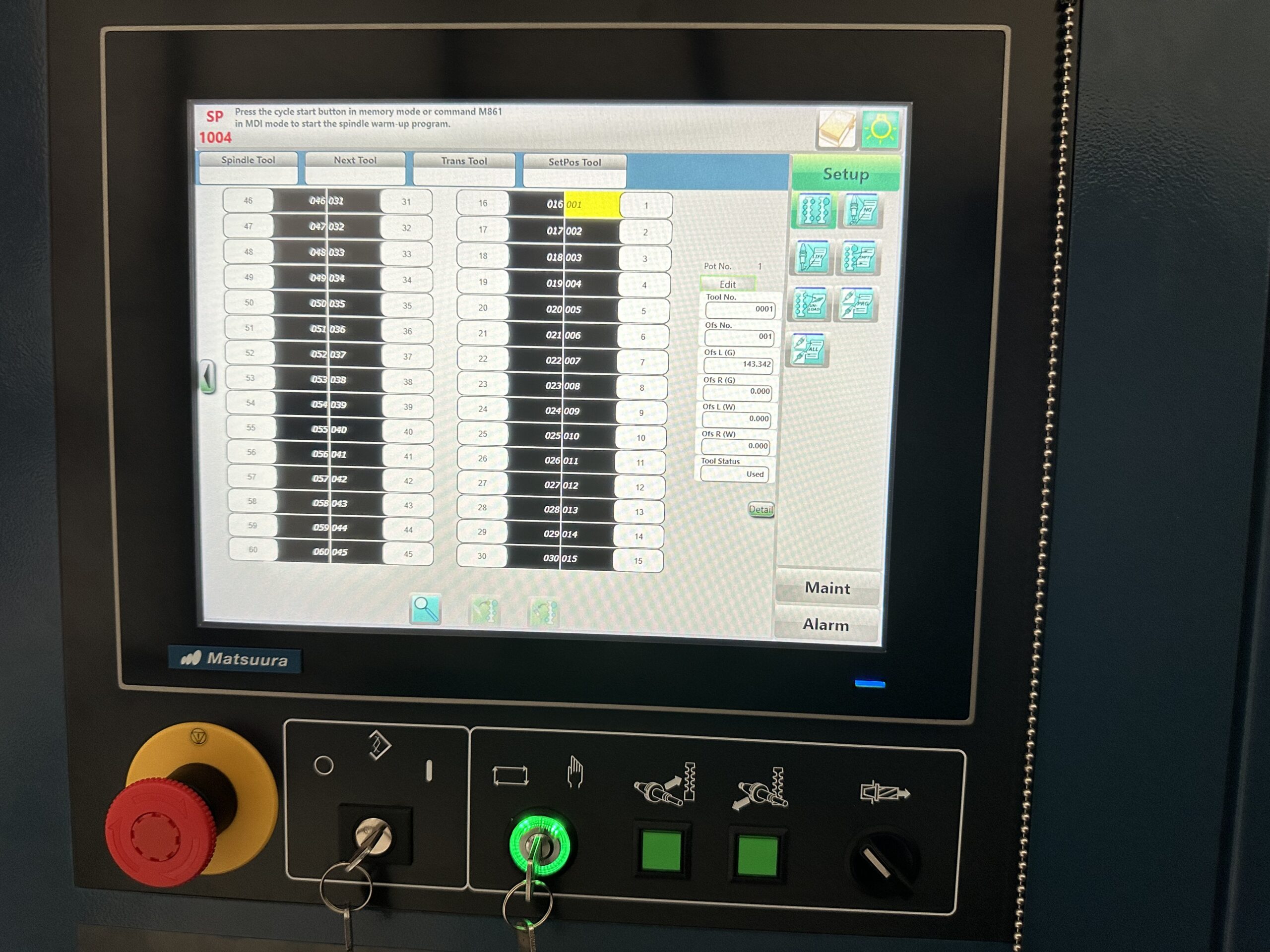

240 Tool ATC Magazine (Rack Type) with 400 Tool Offsets

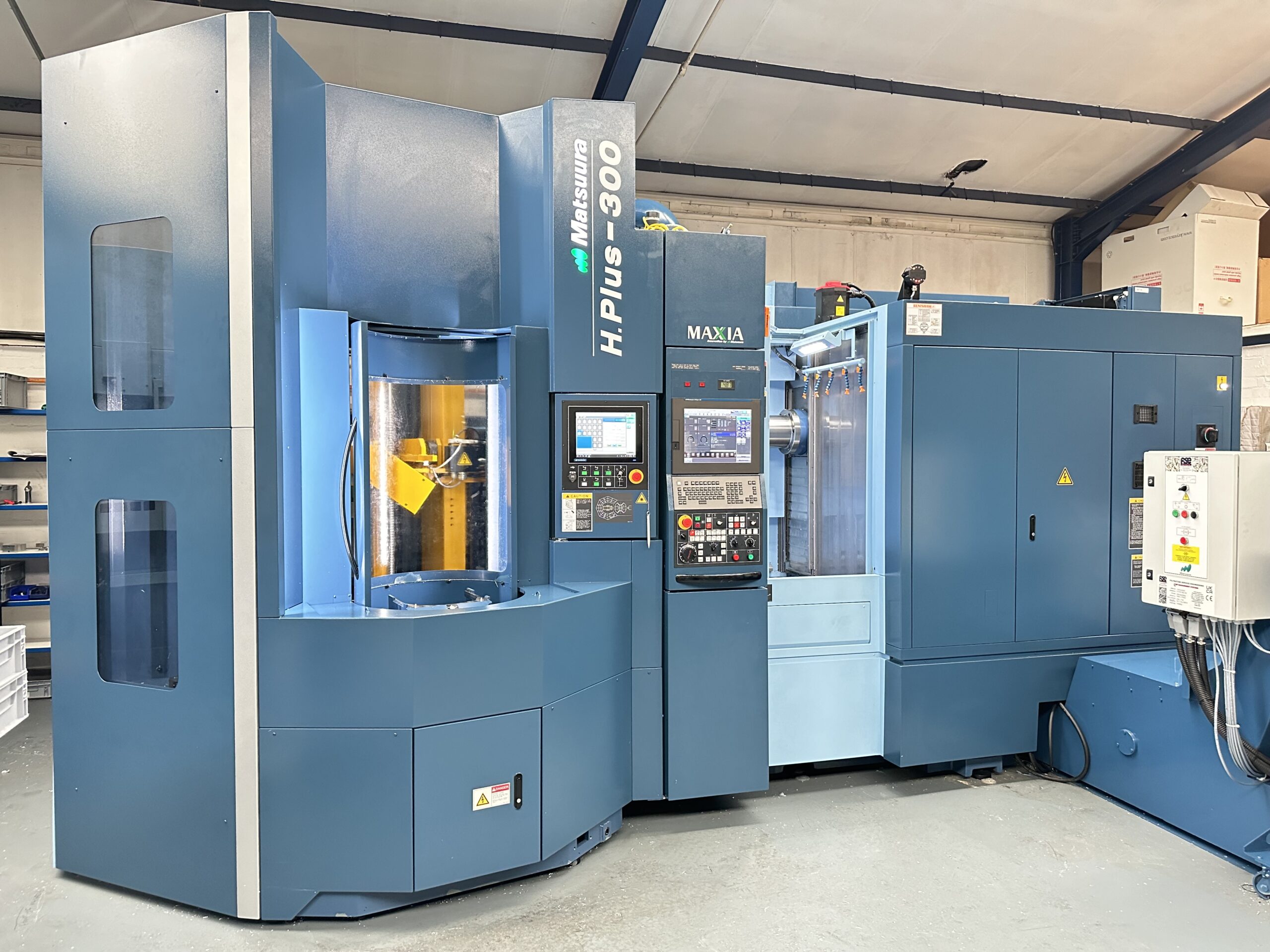

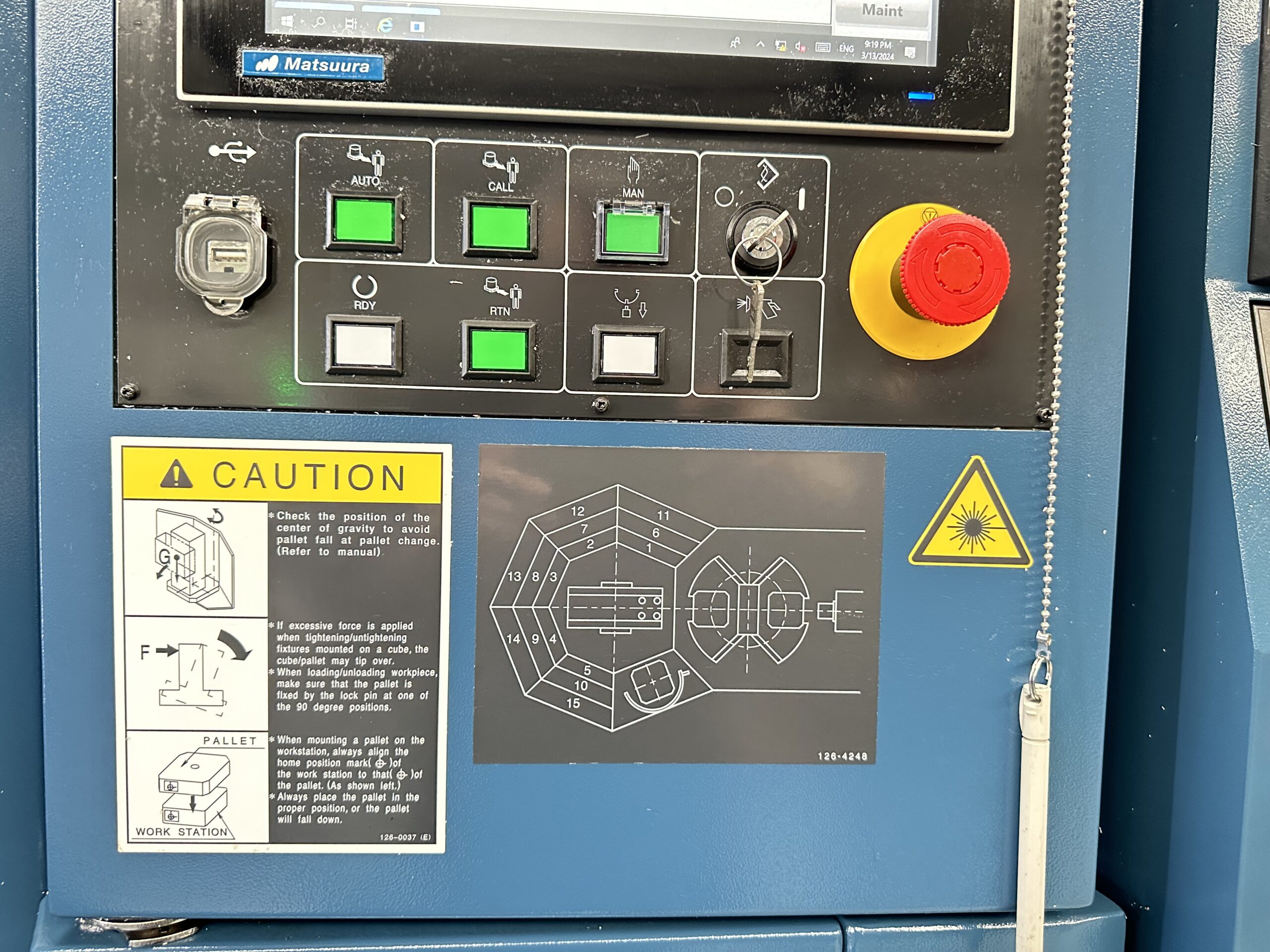

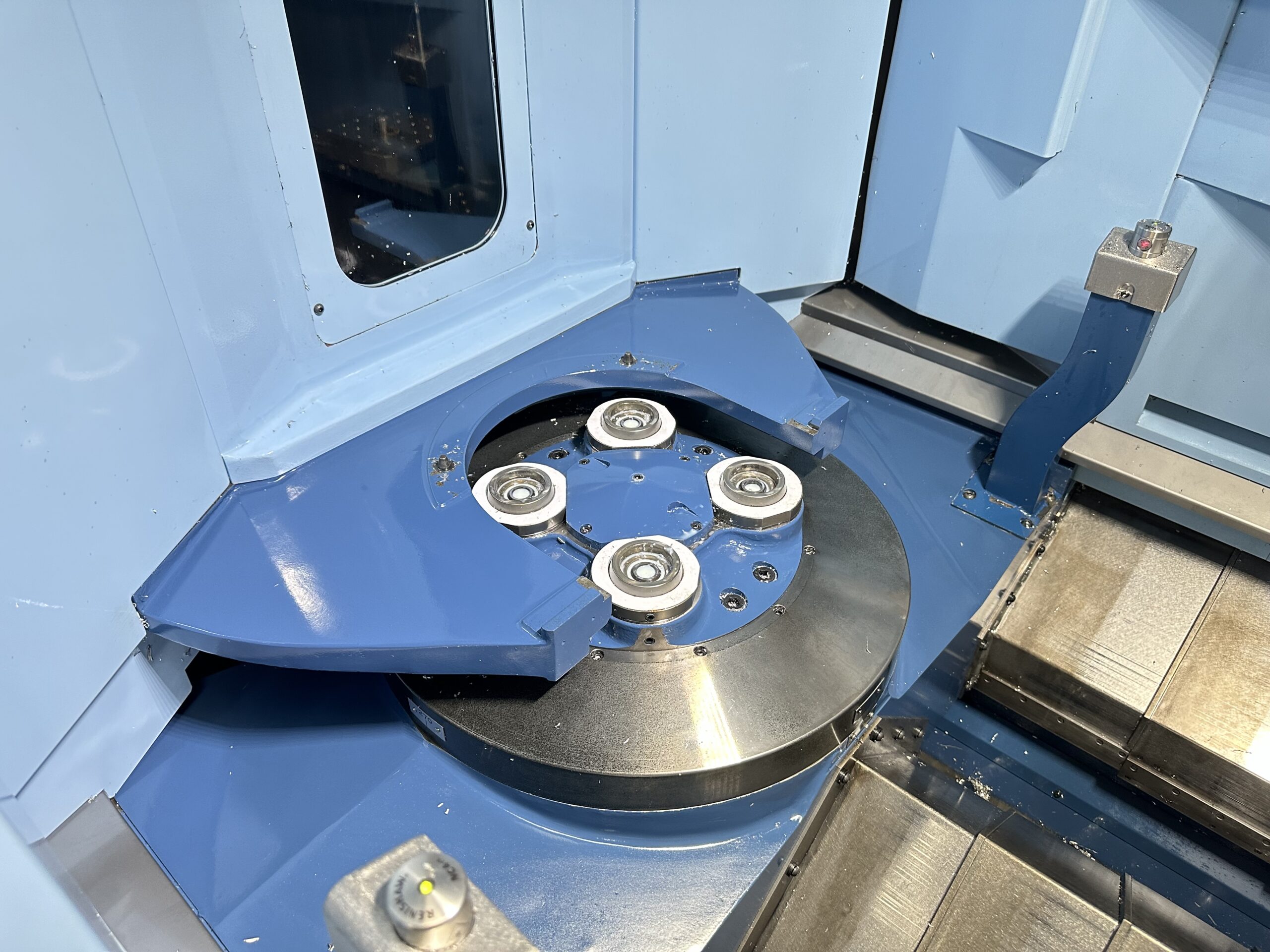

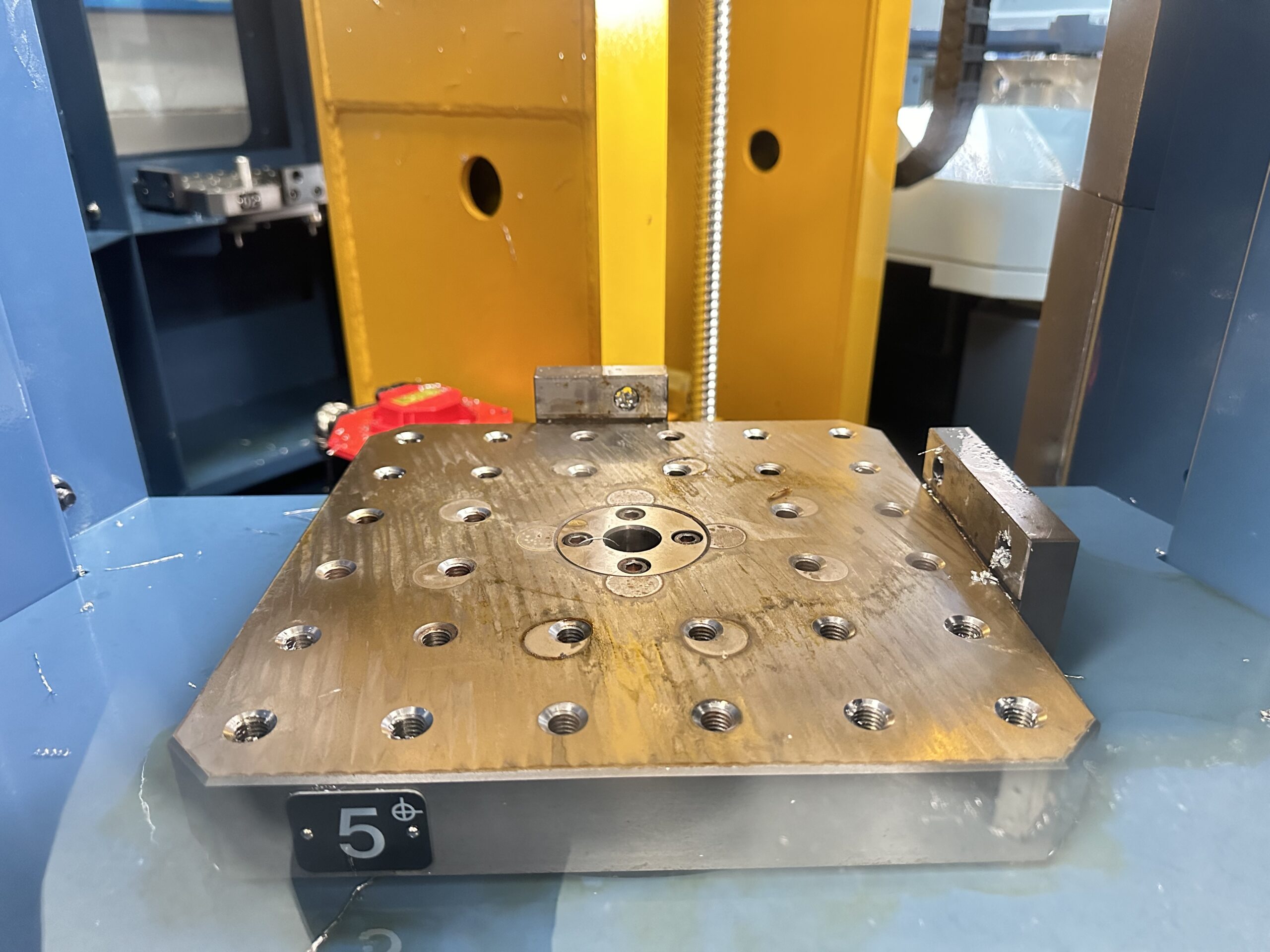

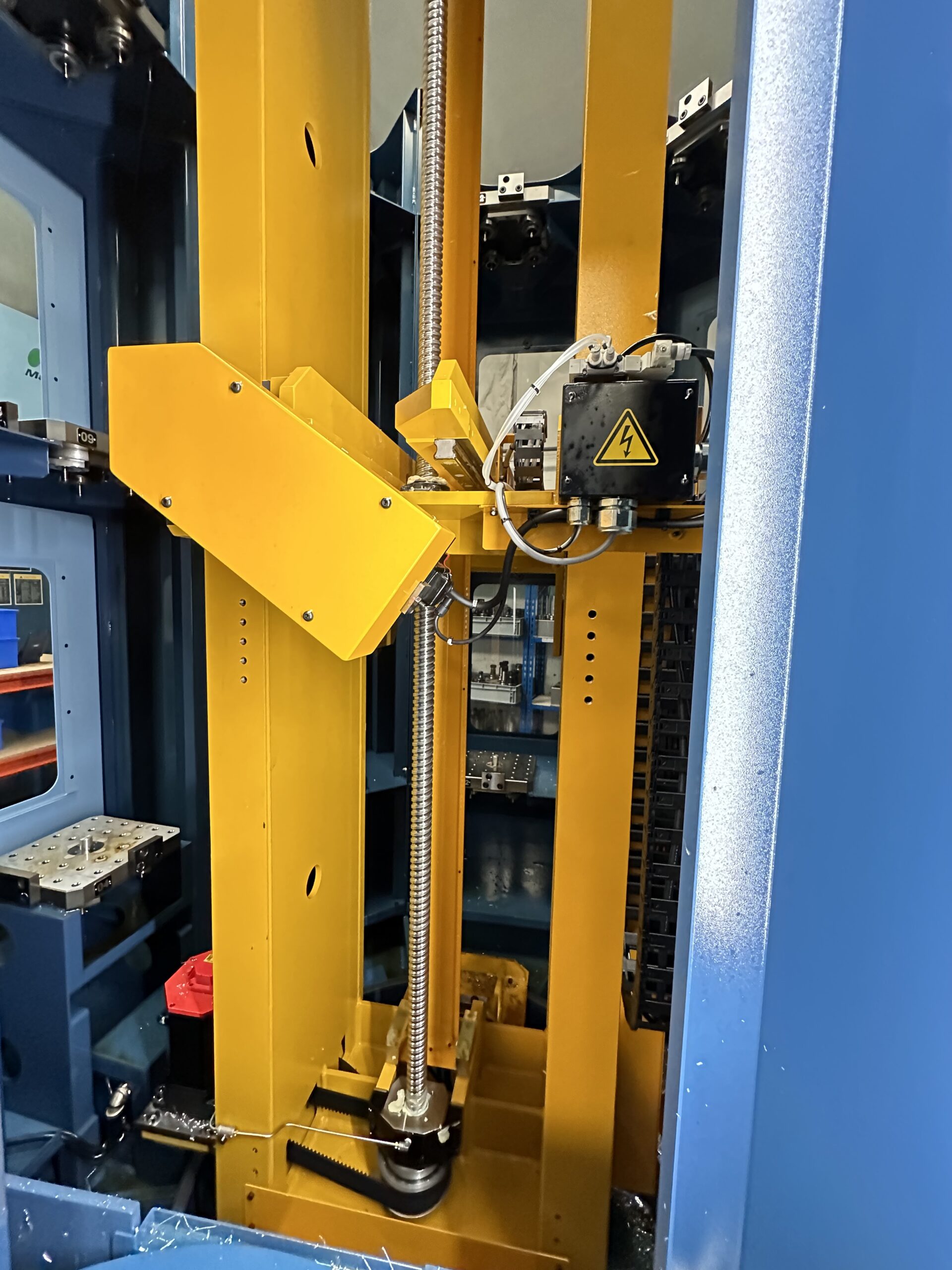

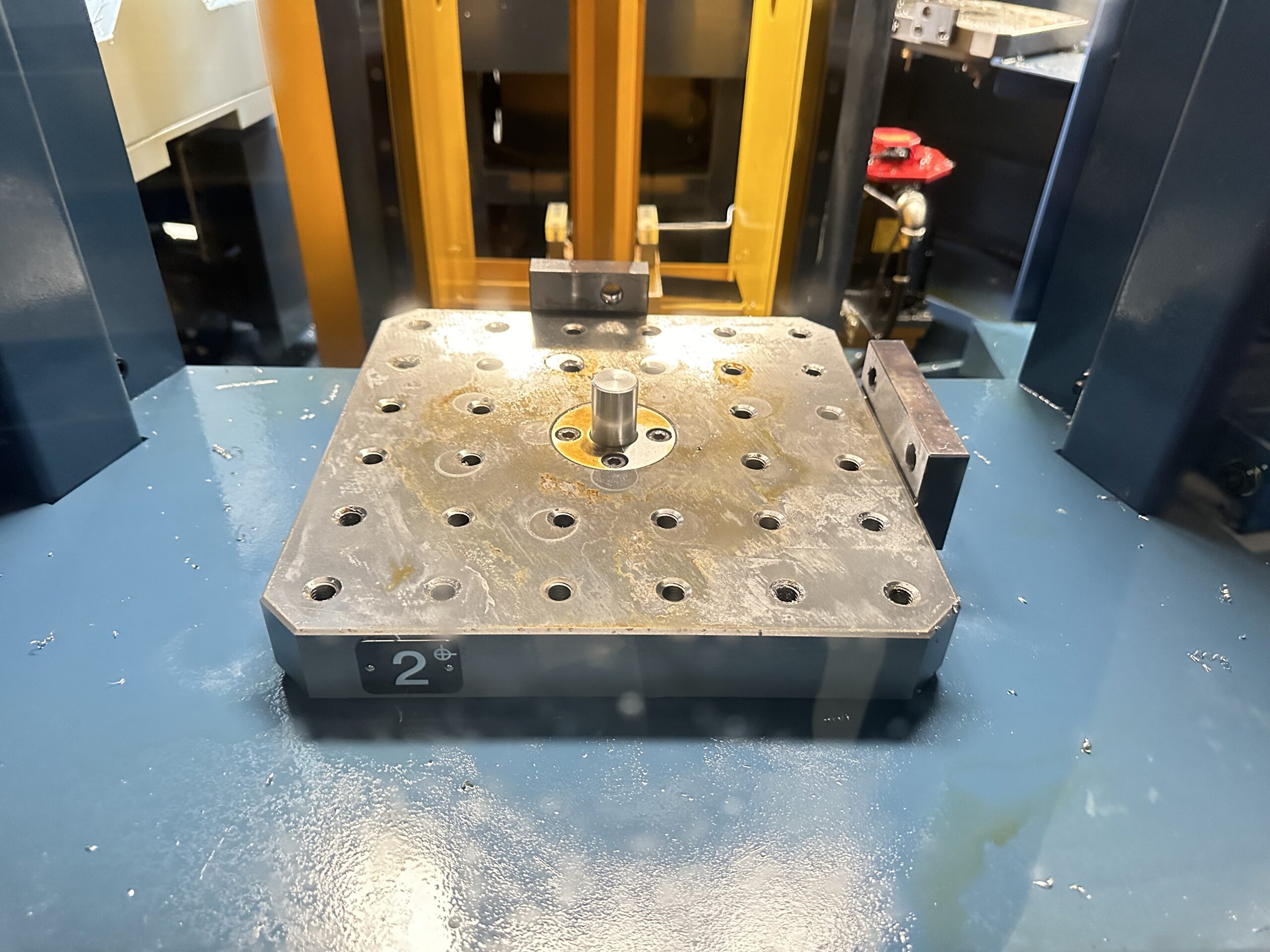

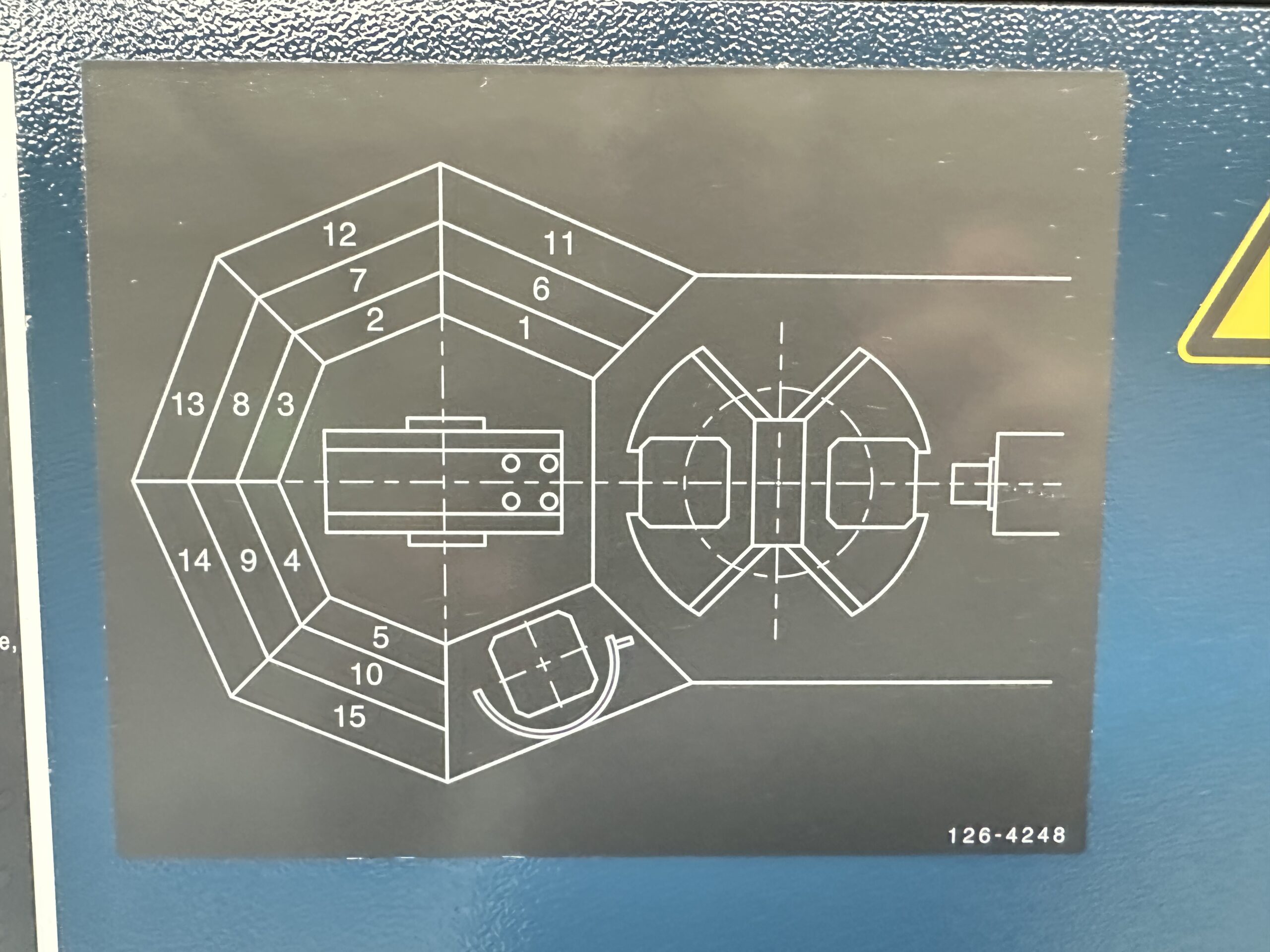

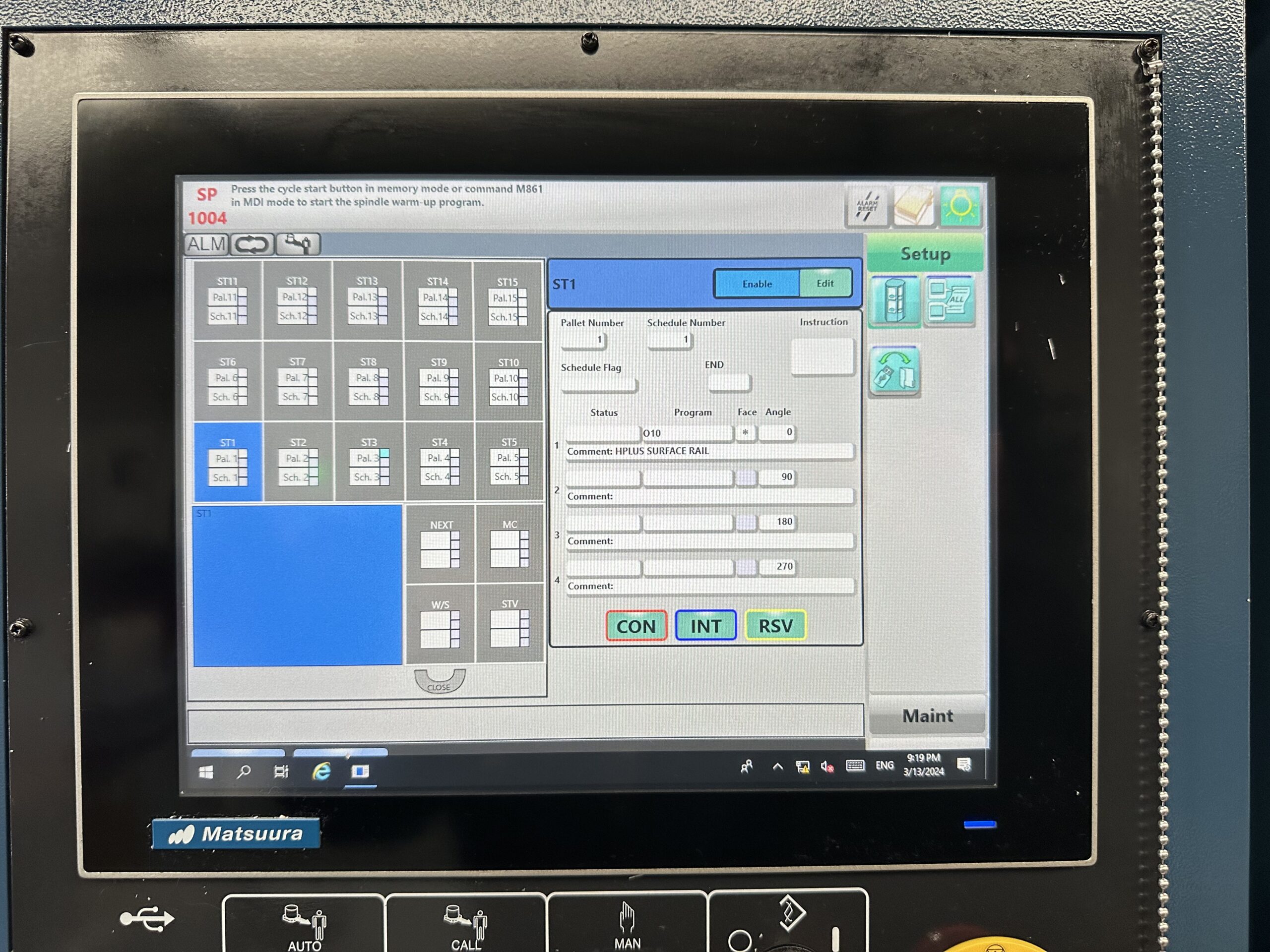

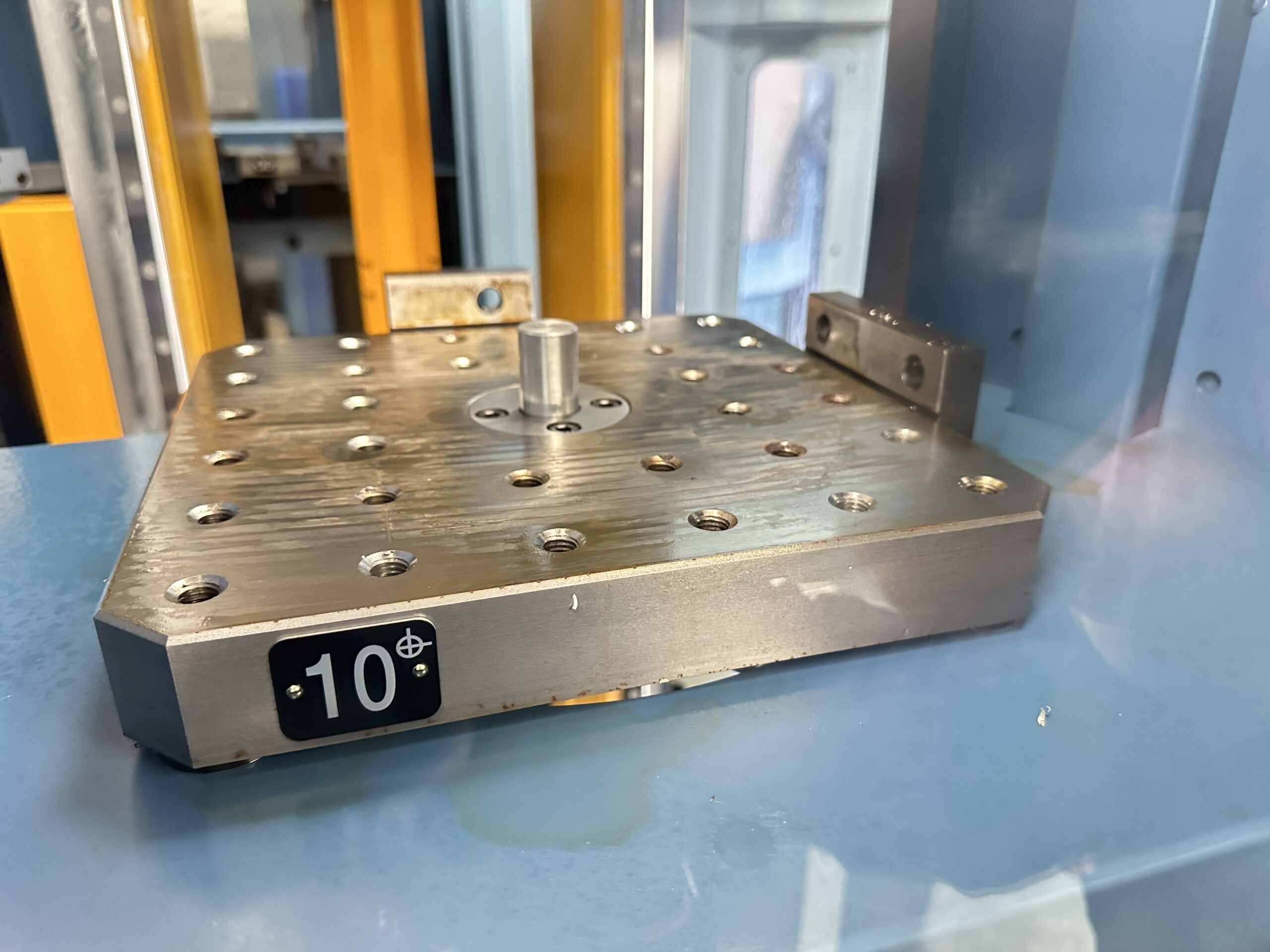

PC15 Tower Pallet System Inlcuding Load/Unload Station and Pallets (15 off)

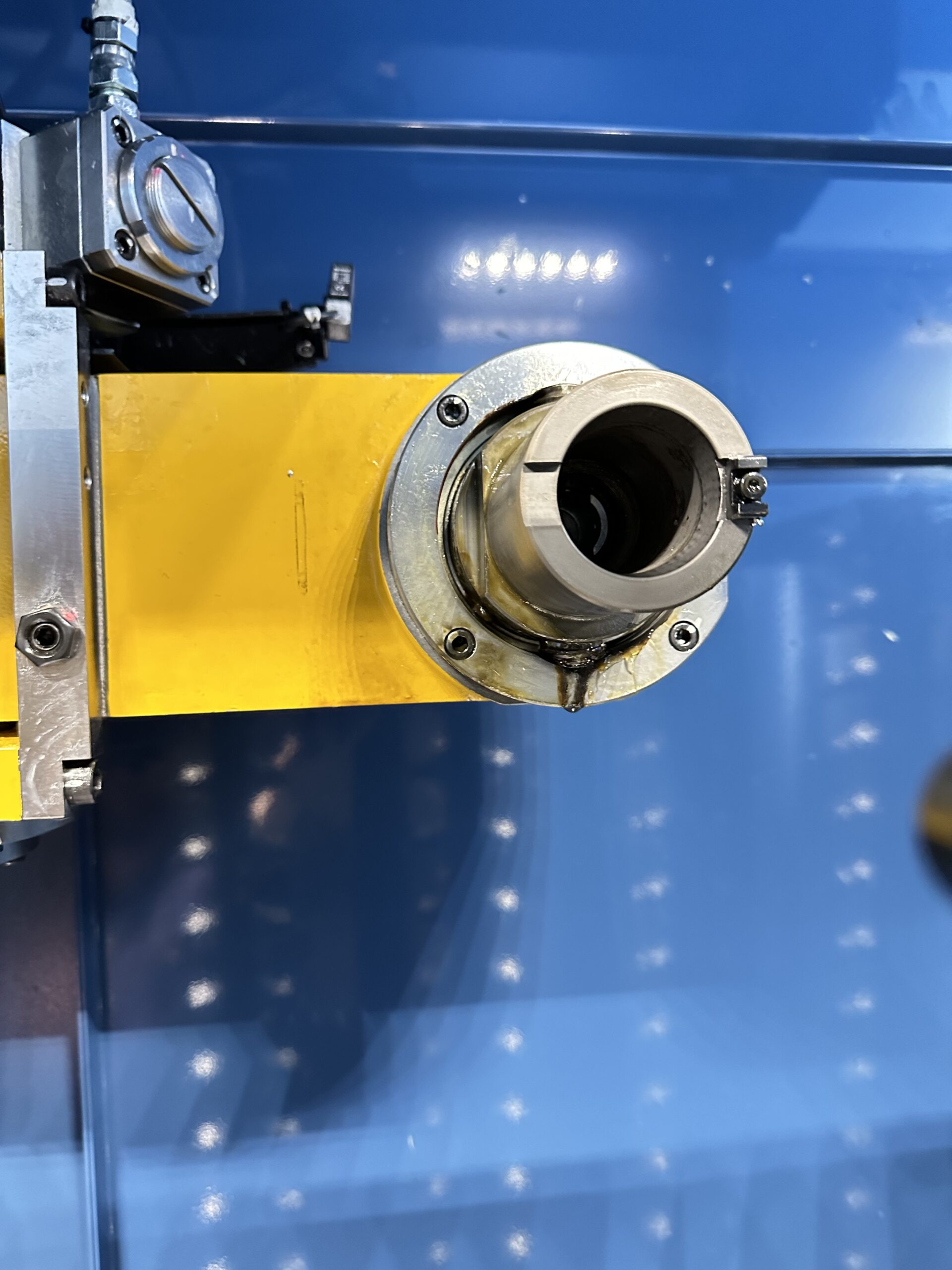

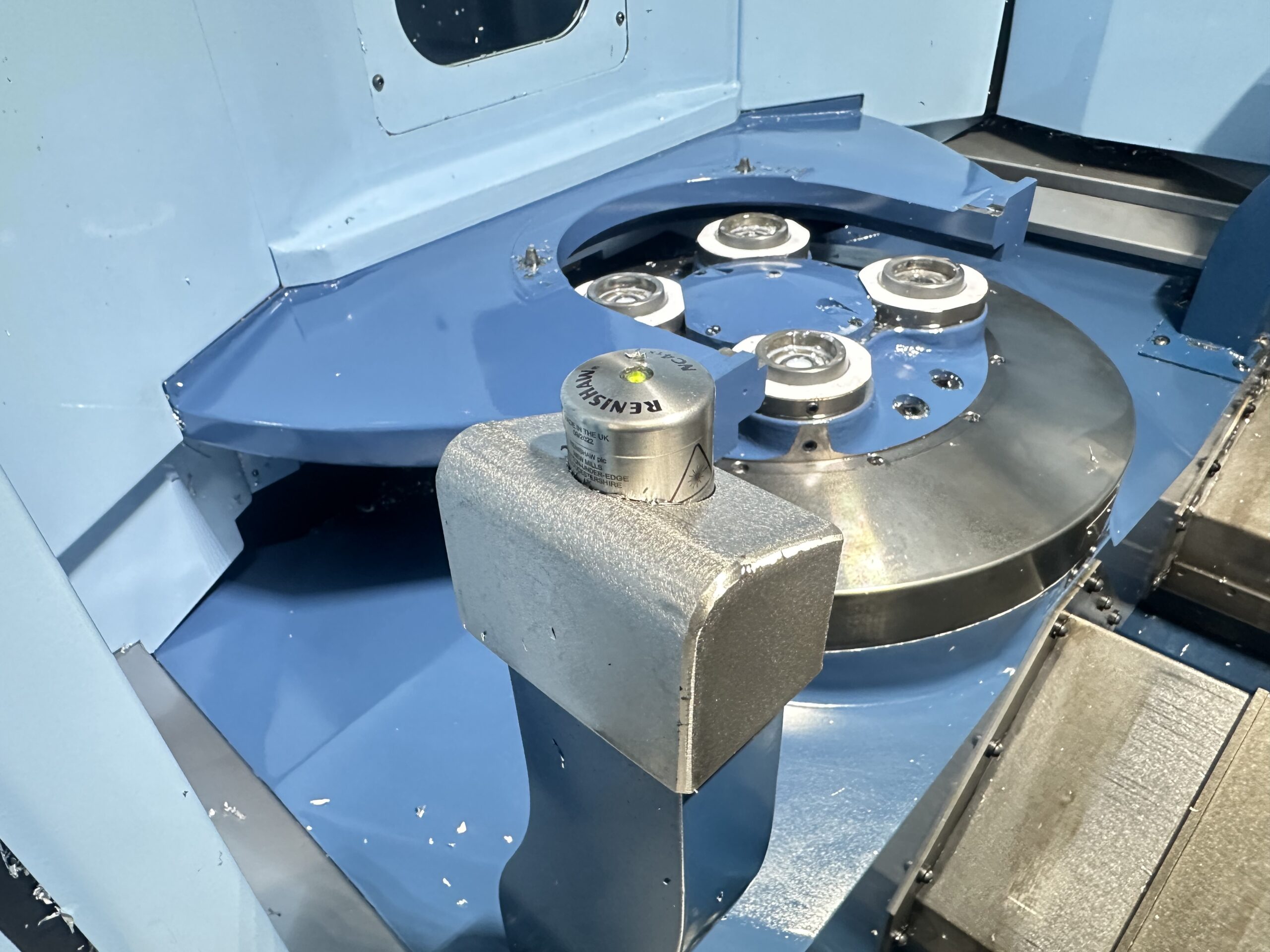

Spindle Load Monitoring Function, Renishaw NC4 Laser Tool Detection Probe

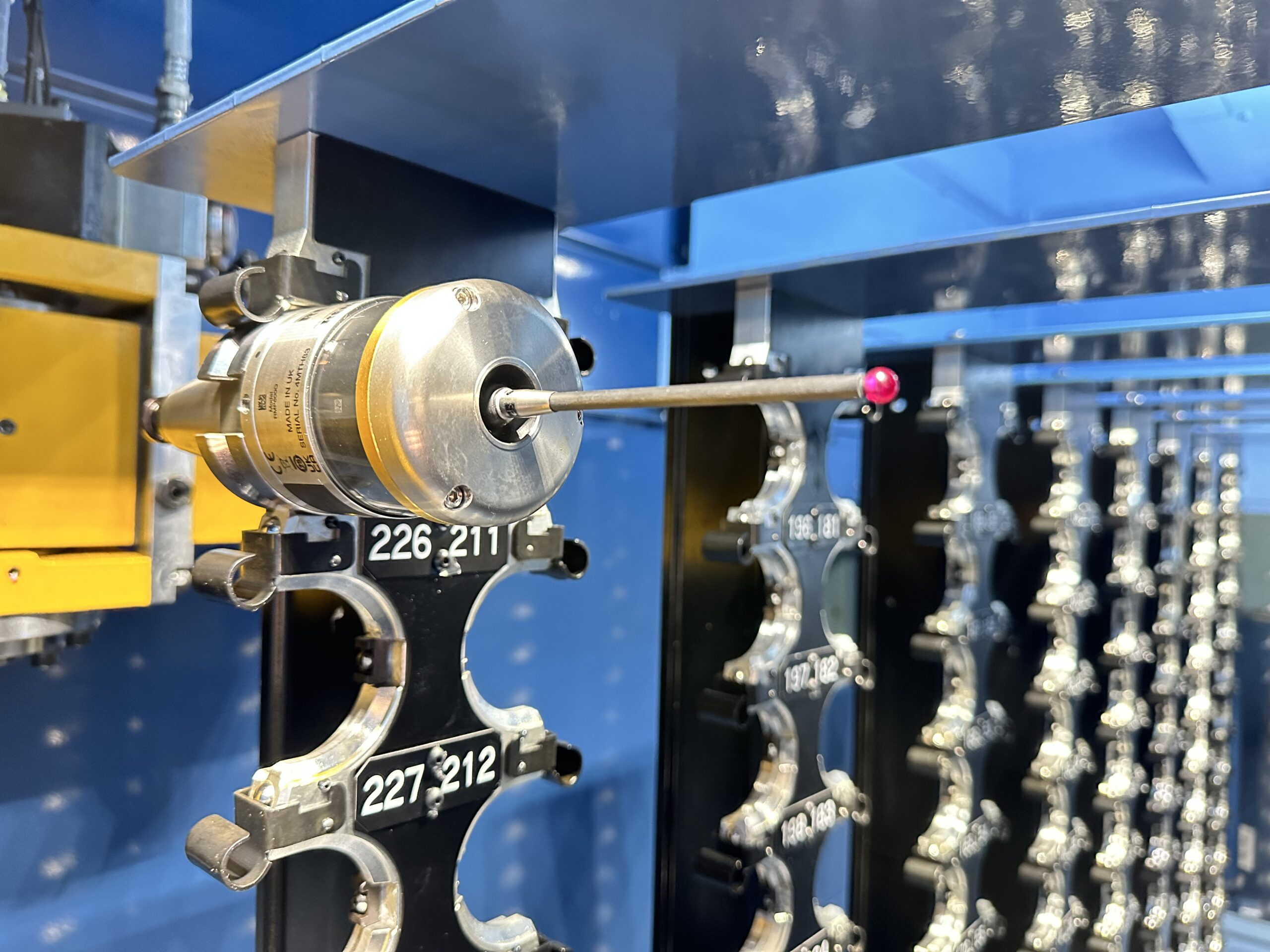

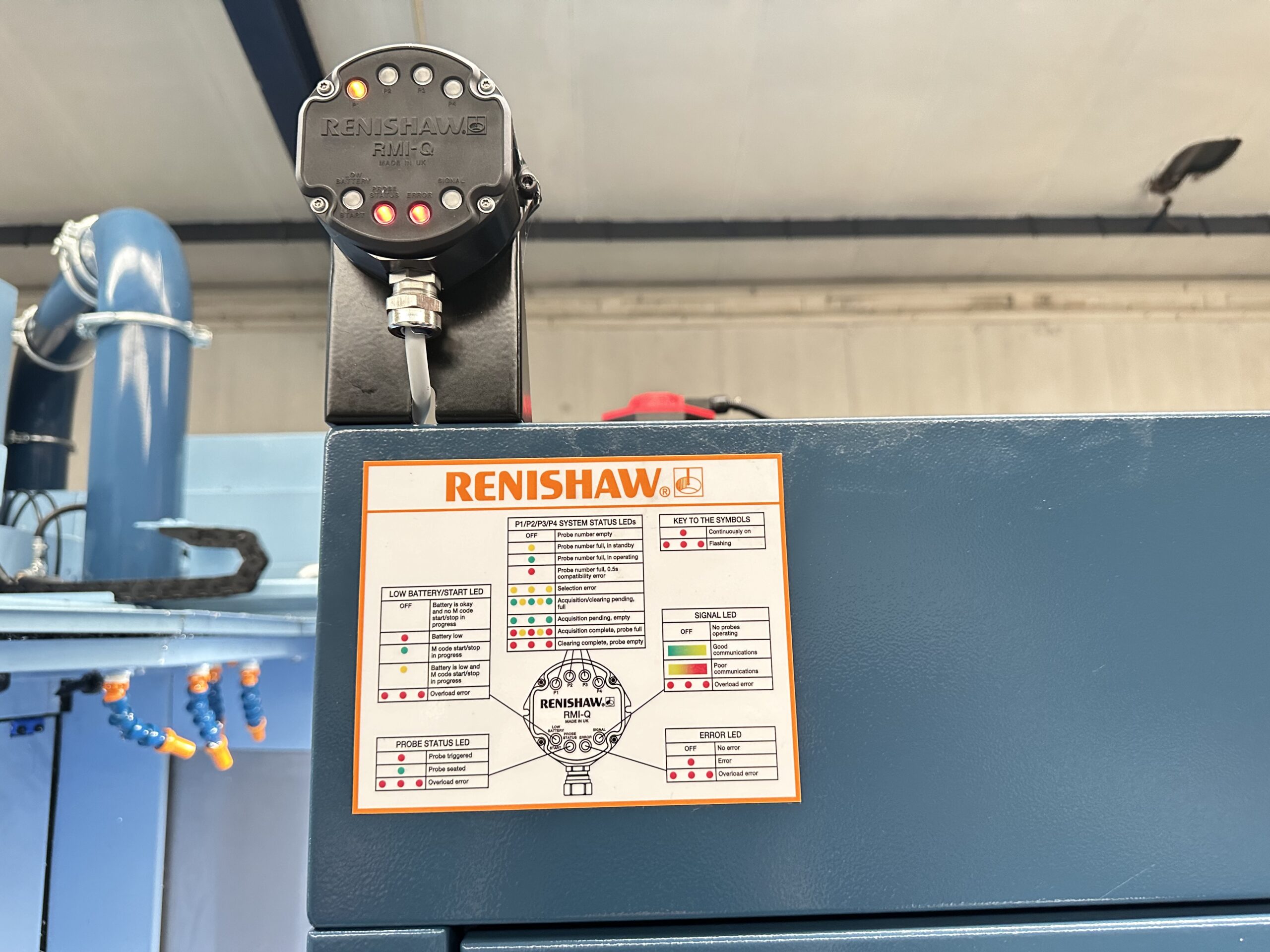

Renishaw RMP600 Spindle Probe
Large Memory Function (1GB HD)
Additional Work Offsets G54.1 (48 Sets)

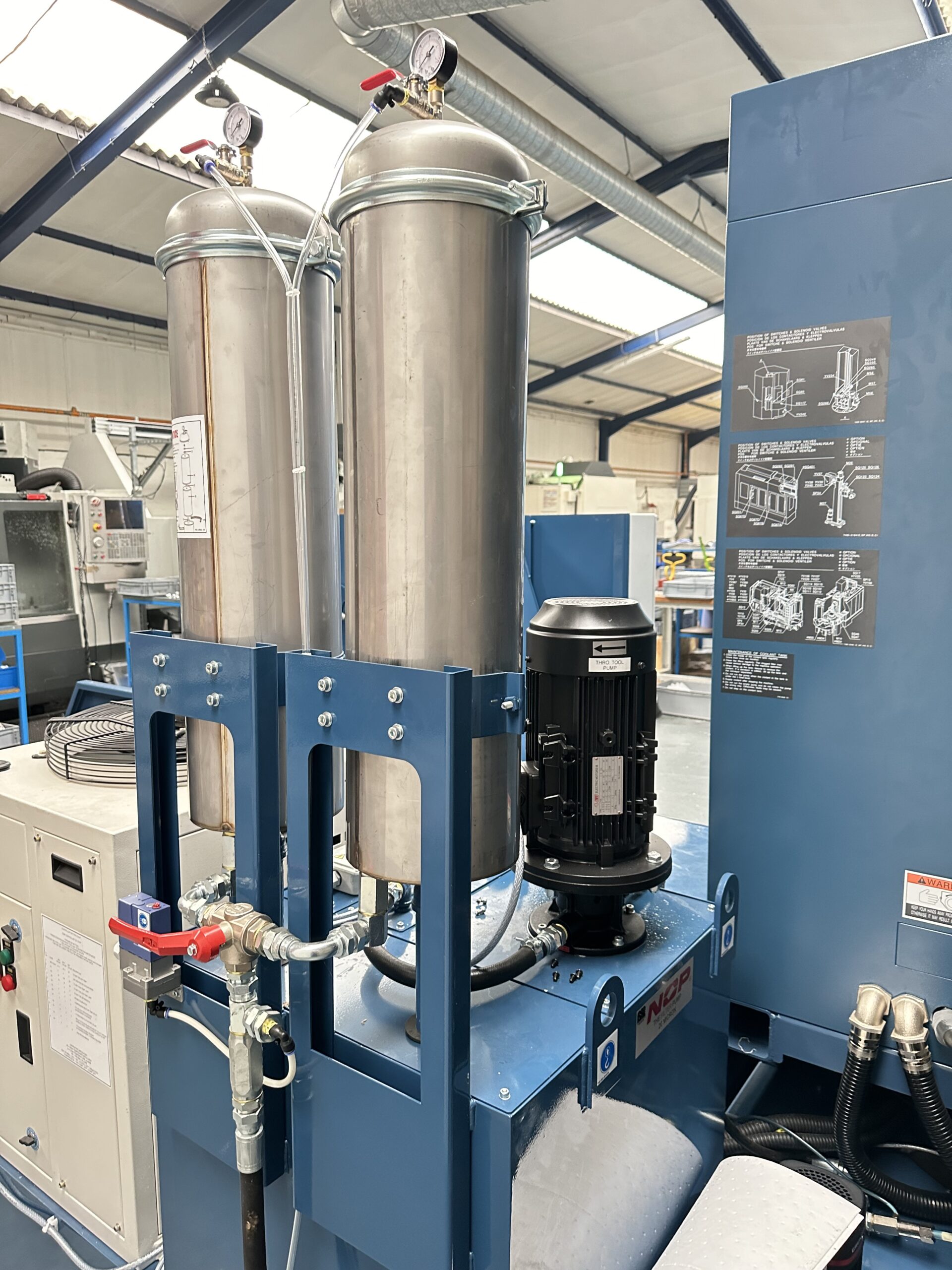

70 Bar High Pressure Through the Spindle Coolant (Duplex Filter)

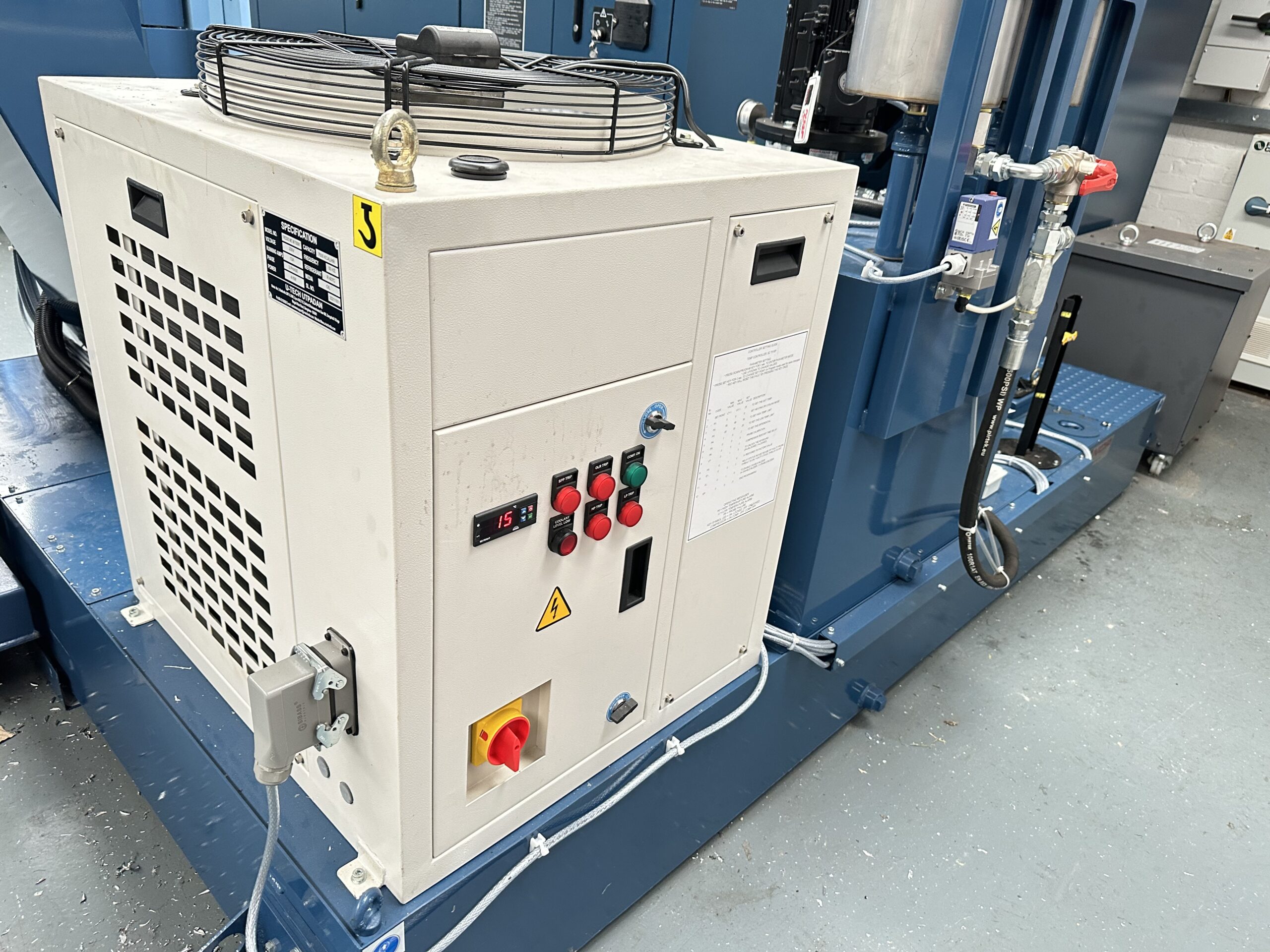

Coolant Chiller “Built into the Swarf System”

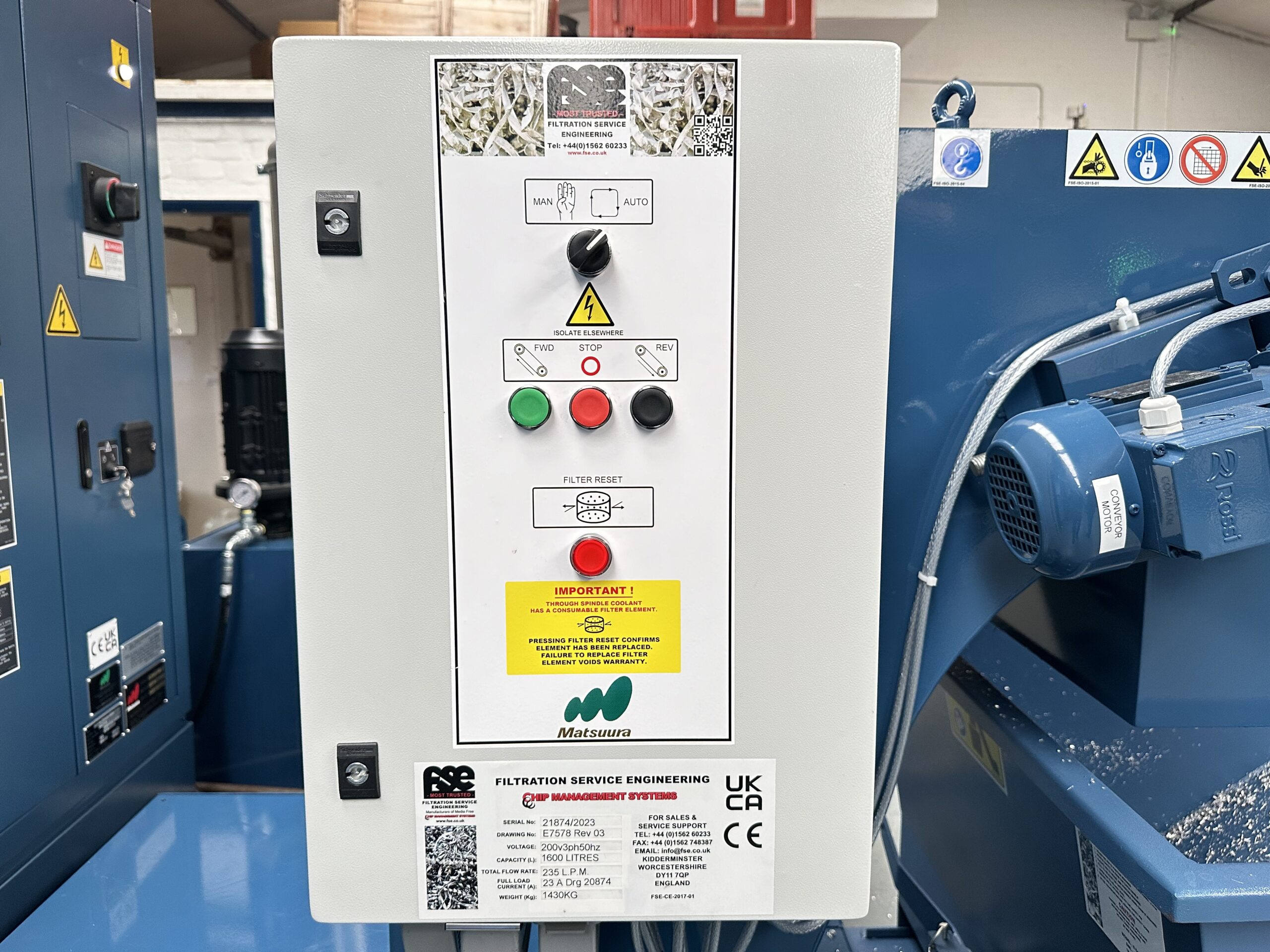

Drum Filtration Swarf Management System including Lift-up Conveyor (Rear or Side Exit) and Chip Bin
