Product description
Technical Specification:

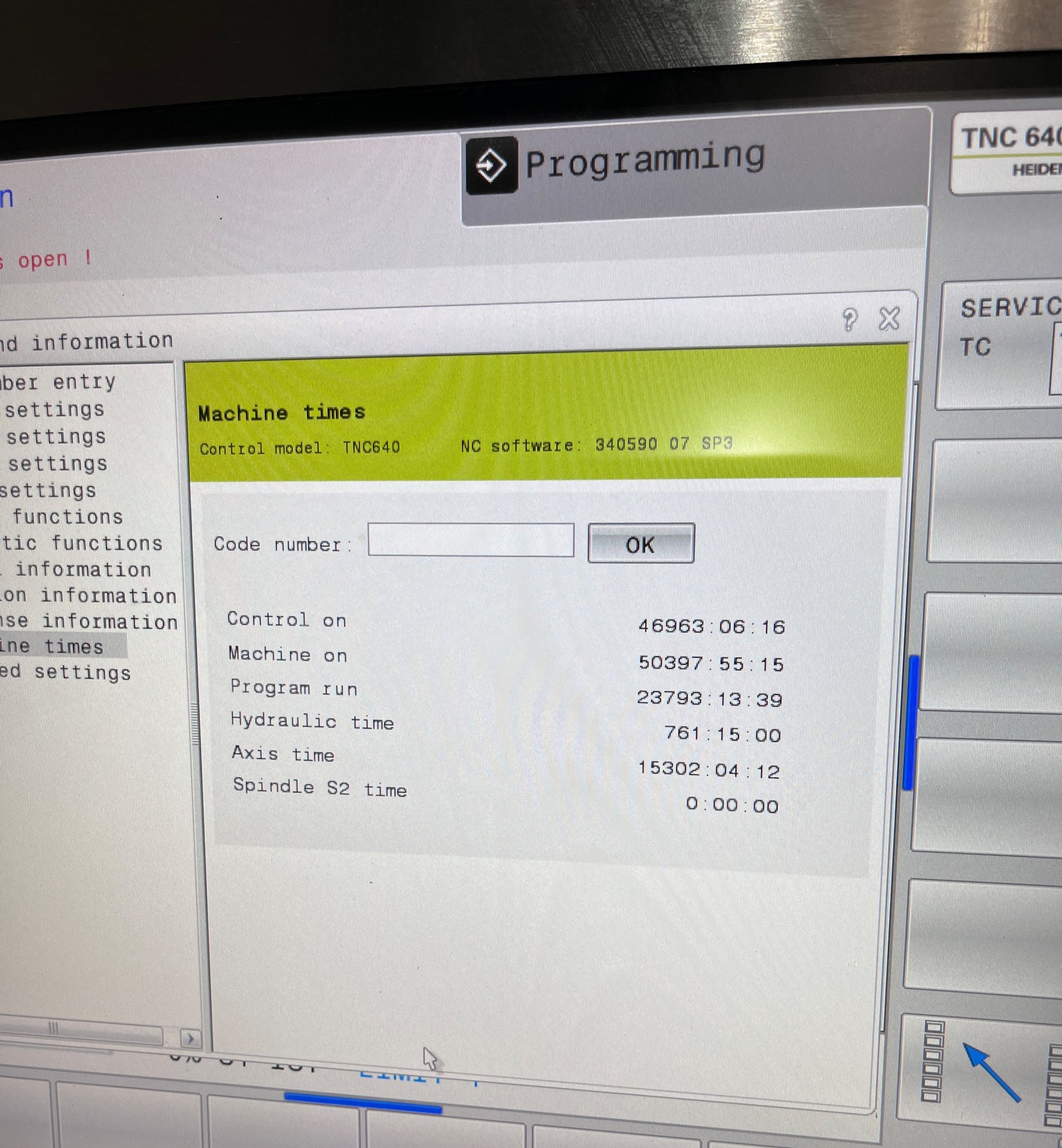

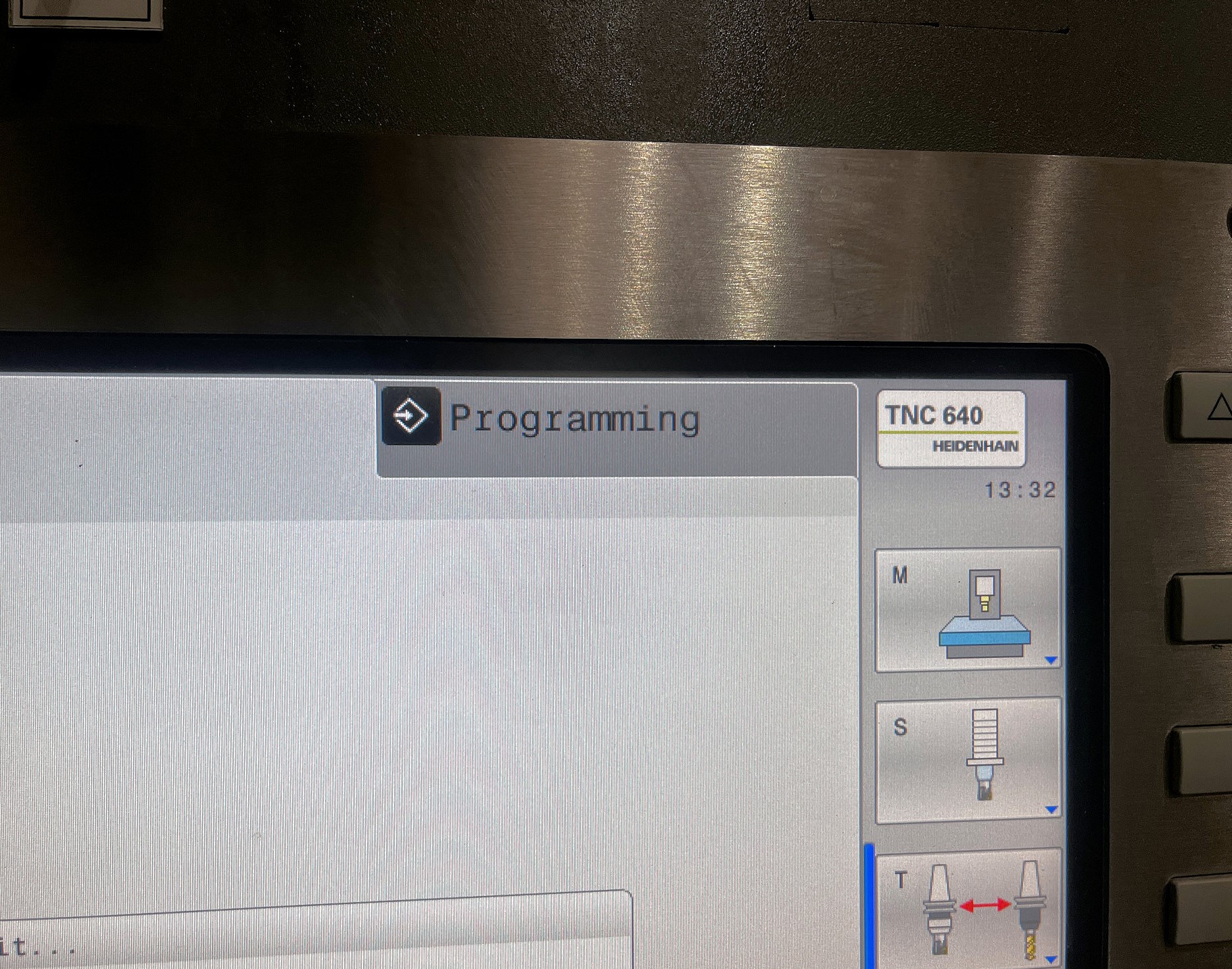

| Control | HEIDENHAIN TNC640 |

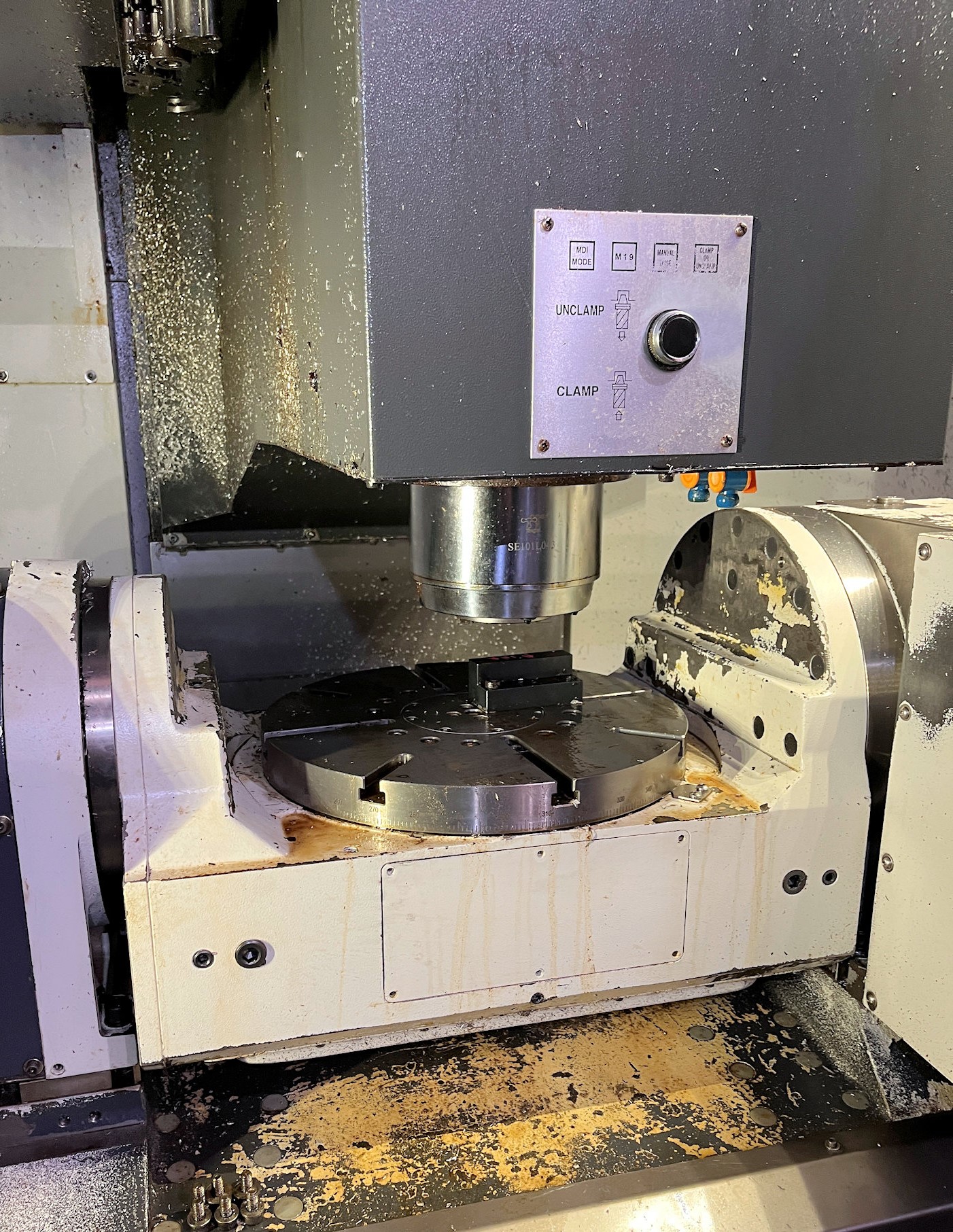

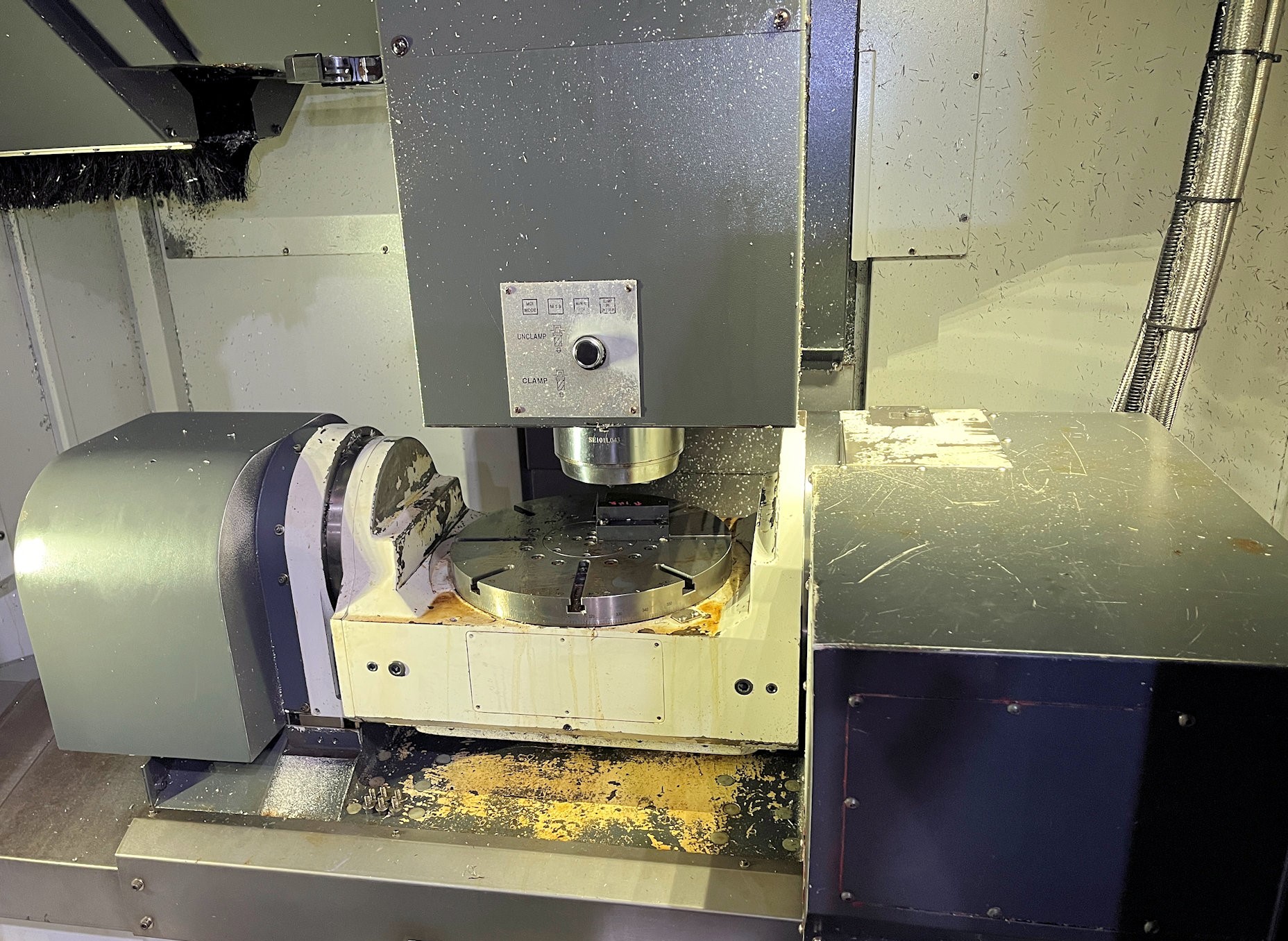

| A axis | +30 ~ -120 degrees (0.001 degree) |
| C axis | ±360゜ (0.001 degree increment) |
| Maximum Workpiece Size | Ø380 x 220mm |
| Maximum workpiece weight | 200kg |
| Table Size | Ø350mm |
| Traverses XYZ | 400 x 510 x 510mm |
| Maximum Cutting Feedrate | 20000mm/minute |
| Rapid Feedrates | XYZ: 36 x 36 x 30m/minute |
| Spindle Motor Power | 17kW |
| Spindle Speed | 15000rpm |
| Maximum Tool Diameter | 76mm |
| Maximum Tool Diameter with Empty Adjacent Pockets | 125mm |
| Maximum Tool Length | 300mm |
| Maximum Tool Weight | 7kg |
| Tool Change Capacity | 24 Station |
| Tool Size | BBT-40 |
| Machine Dimensions | 2150 x 3104 x 3121mm |
| Machine Weight | 7150kg |
For further information on this machine, please contact us on;
+44(0)1506 417620
+44(0)7831 293503
