Product description
Technical Specification:
Bar Capacity: 165mm
Boring Bar Holder Diameter: 50mm

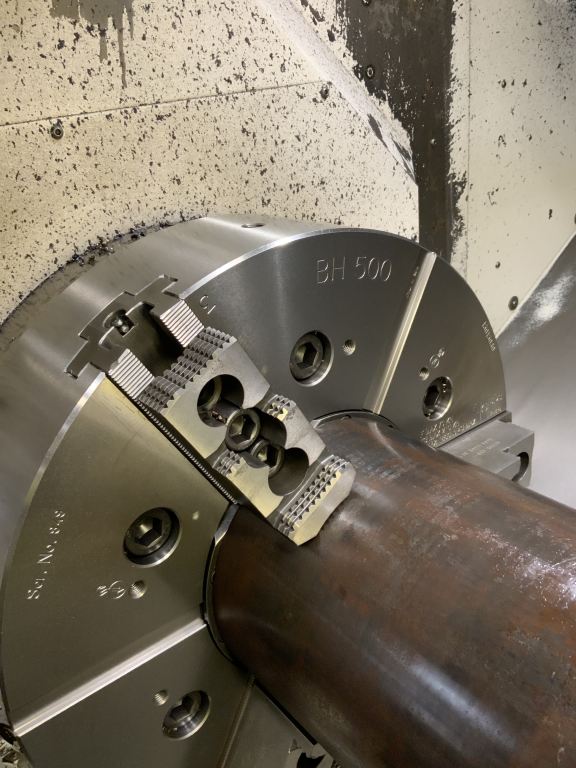

Chuck Size: 20″ (500mm)
Distance Between Centres: 1000mm
X axis Travel: 308mm
Z axis Travel: 1070mm
Swing: 845mm
Spindle Nose: A2-15
Spindle Speed: 2000rpm
Spindle Motor Power: 37/30kW
Tailstock Body Travel: 1025mm
Tailstock Taper: MT #5

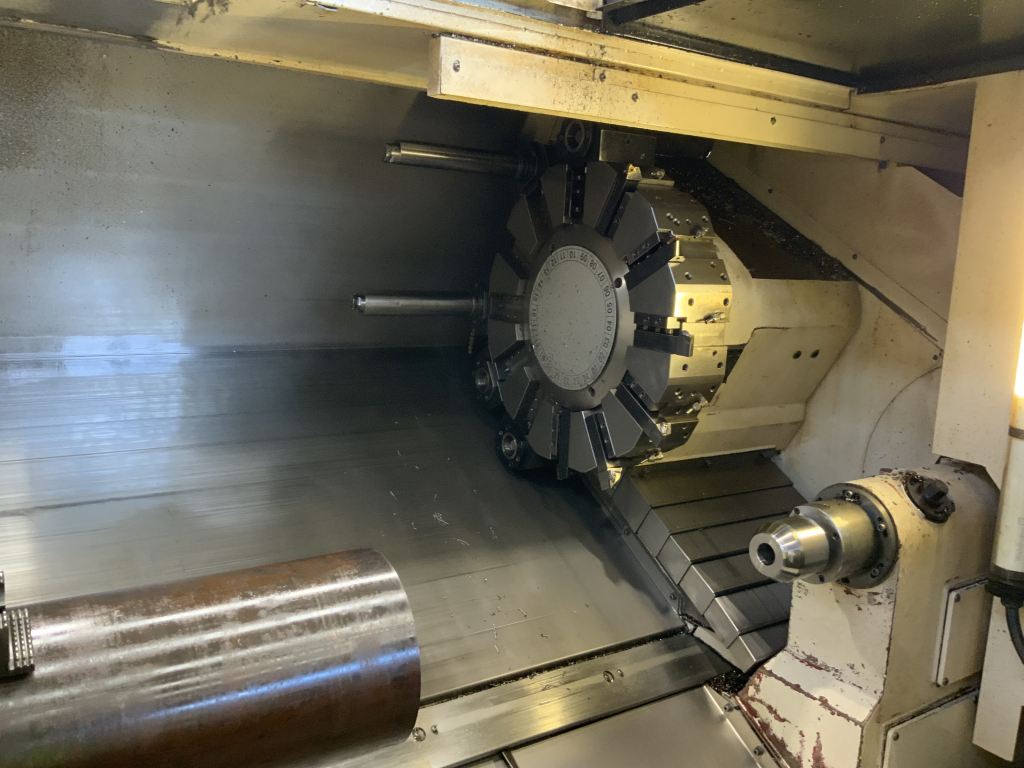

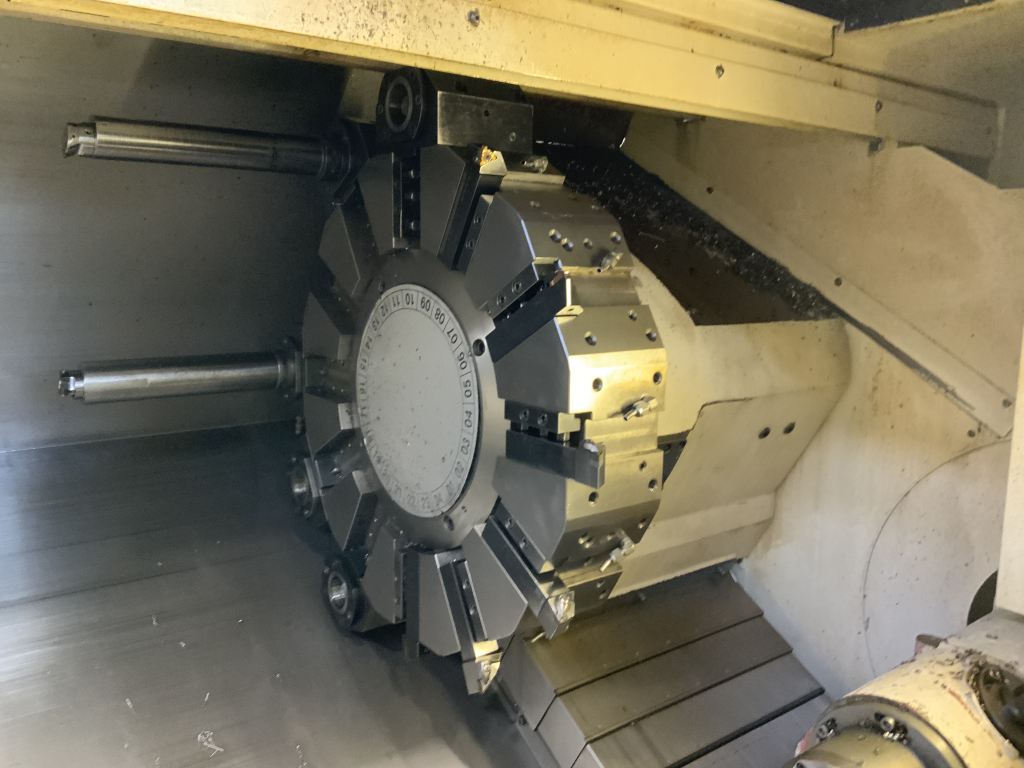

Turret Positions: 24 Station
Machine Dimensions: 4521 x 2514 x 2133mm
Machine Weight: 8618kg
Maximum Cutting Diameter: 584mm
For further information on this machine, please contact us on;
+44(0)1506 417620
+44(0)7831 293503
