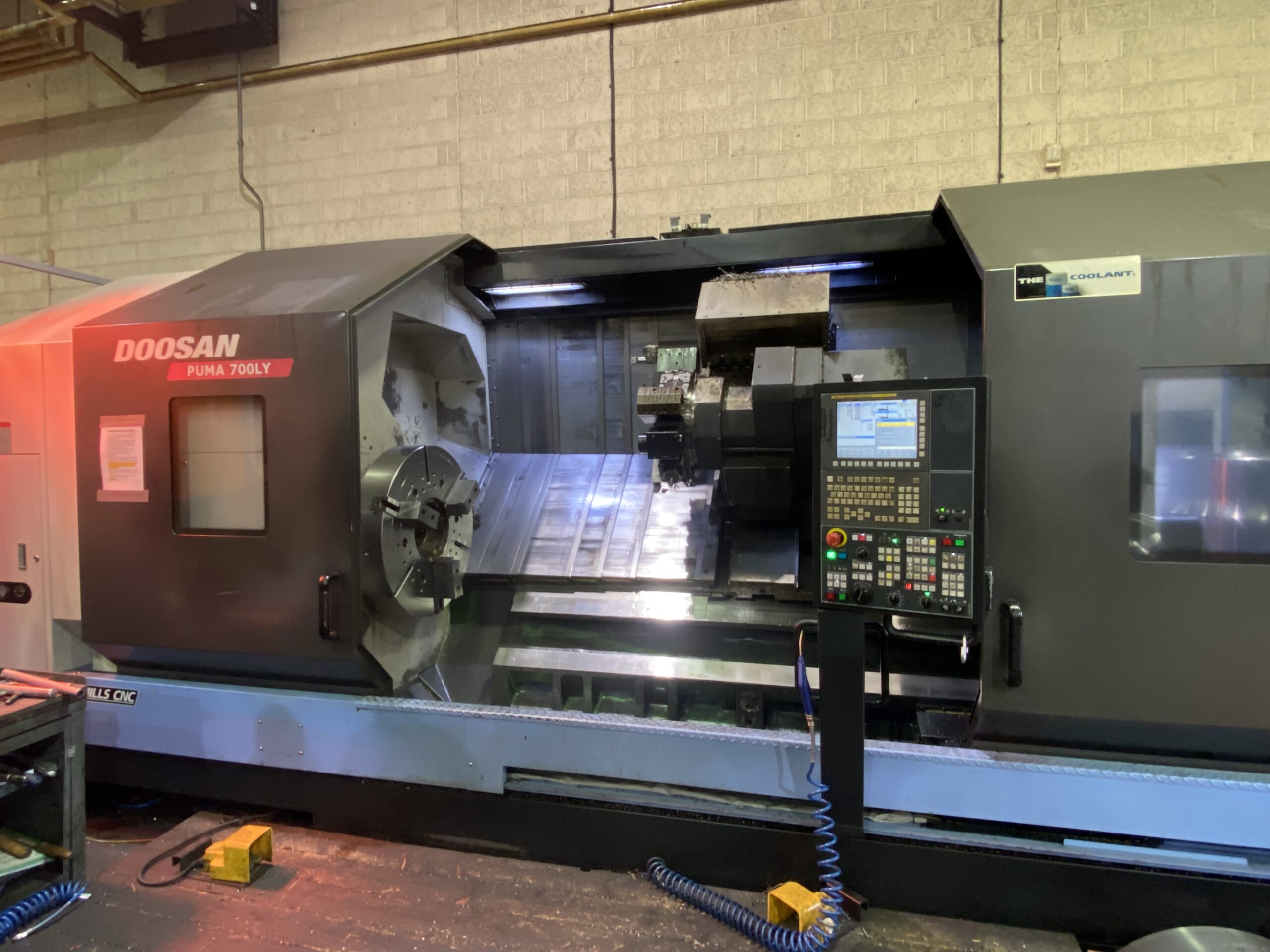

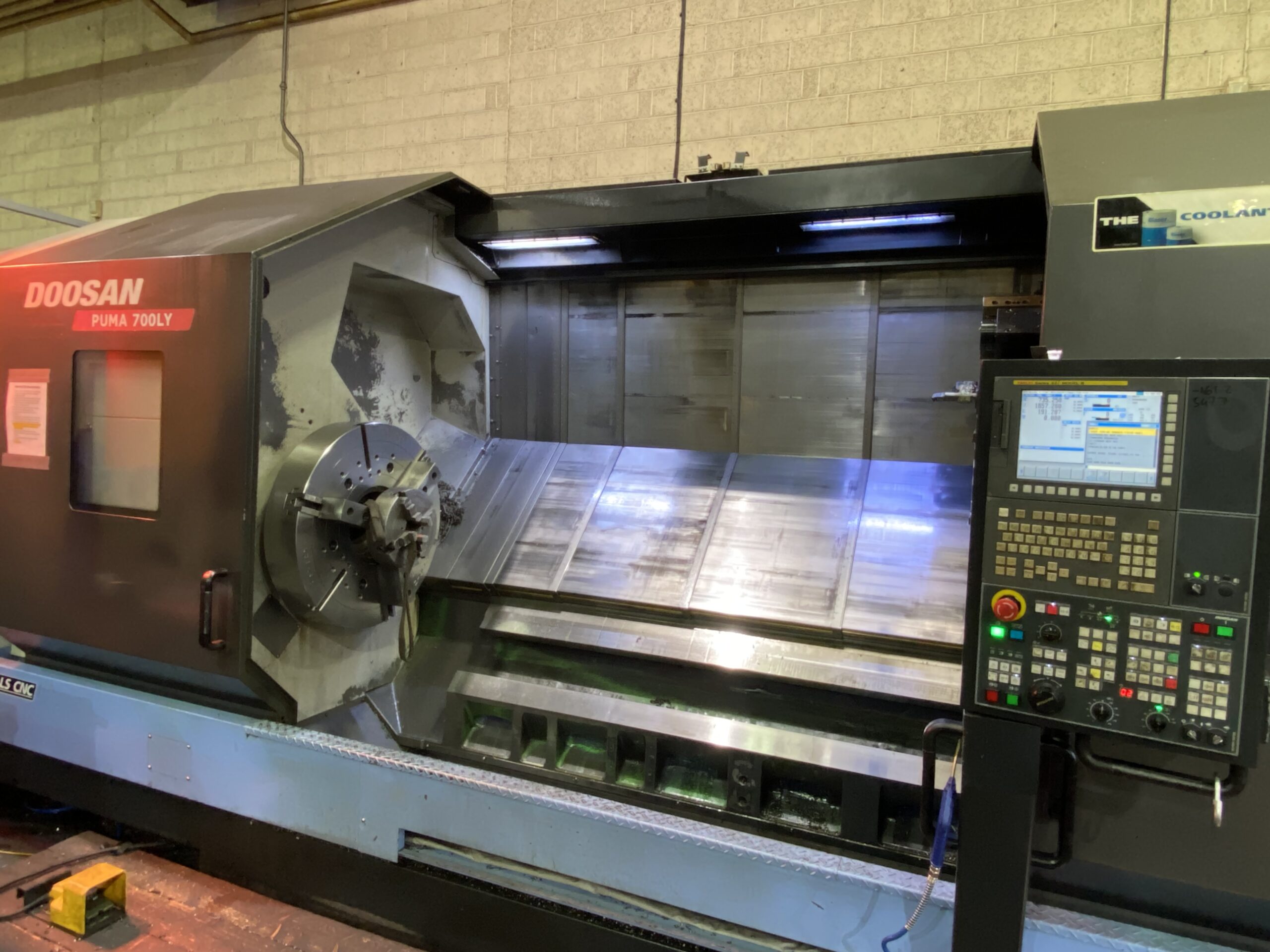

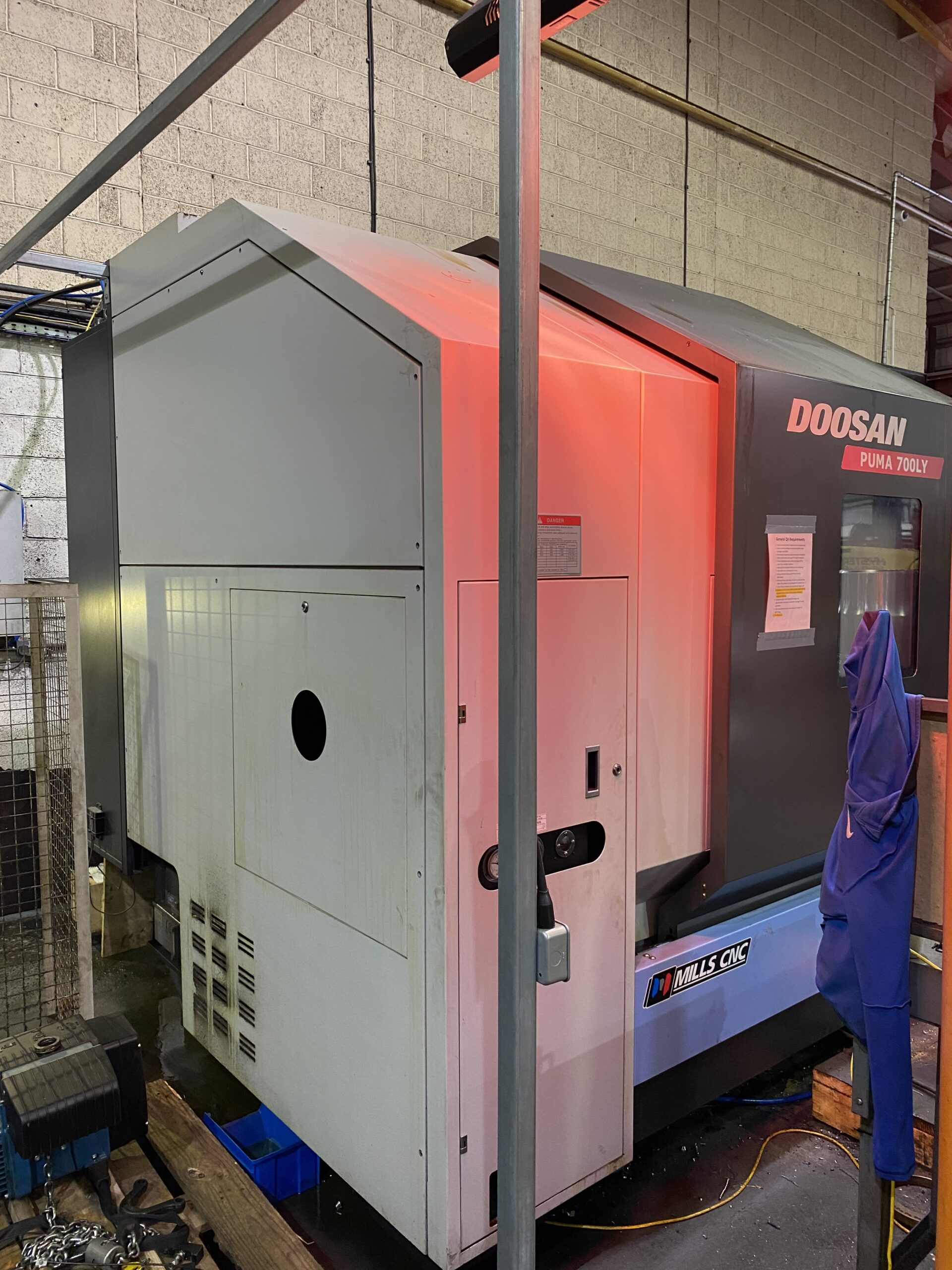

SOLD – 2013 Doosan Puma 700LY CNC Turning Centre

Manufacturer: Doosan

Model/Series: PUMA 700LY Driven Tool CNC Lathe With Y-Axis

Type: Turning Centre

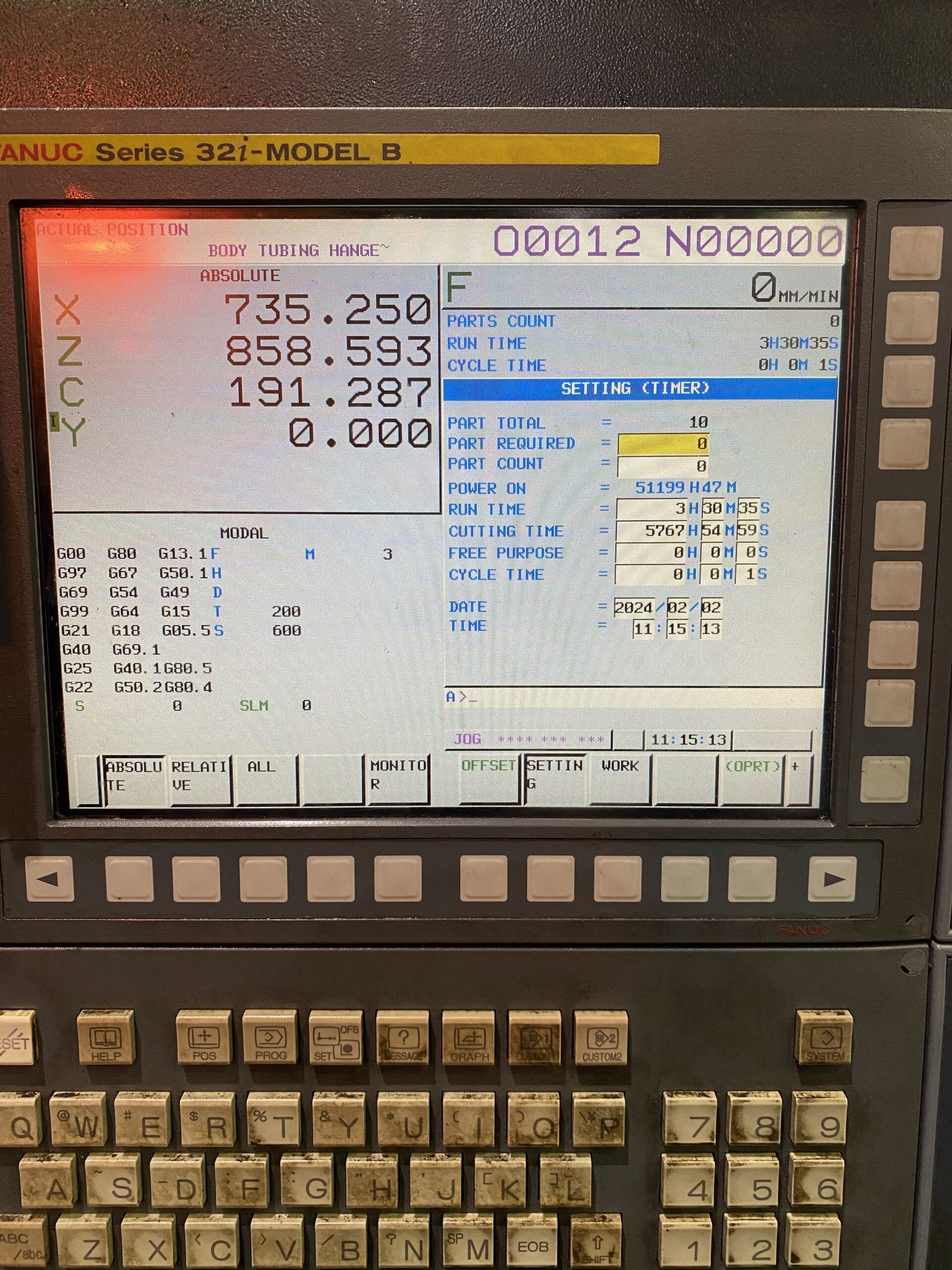

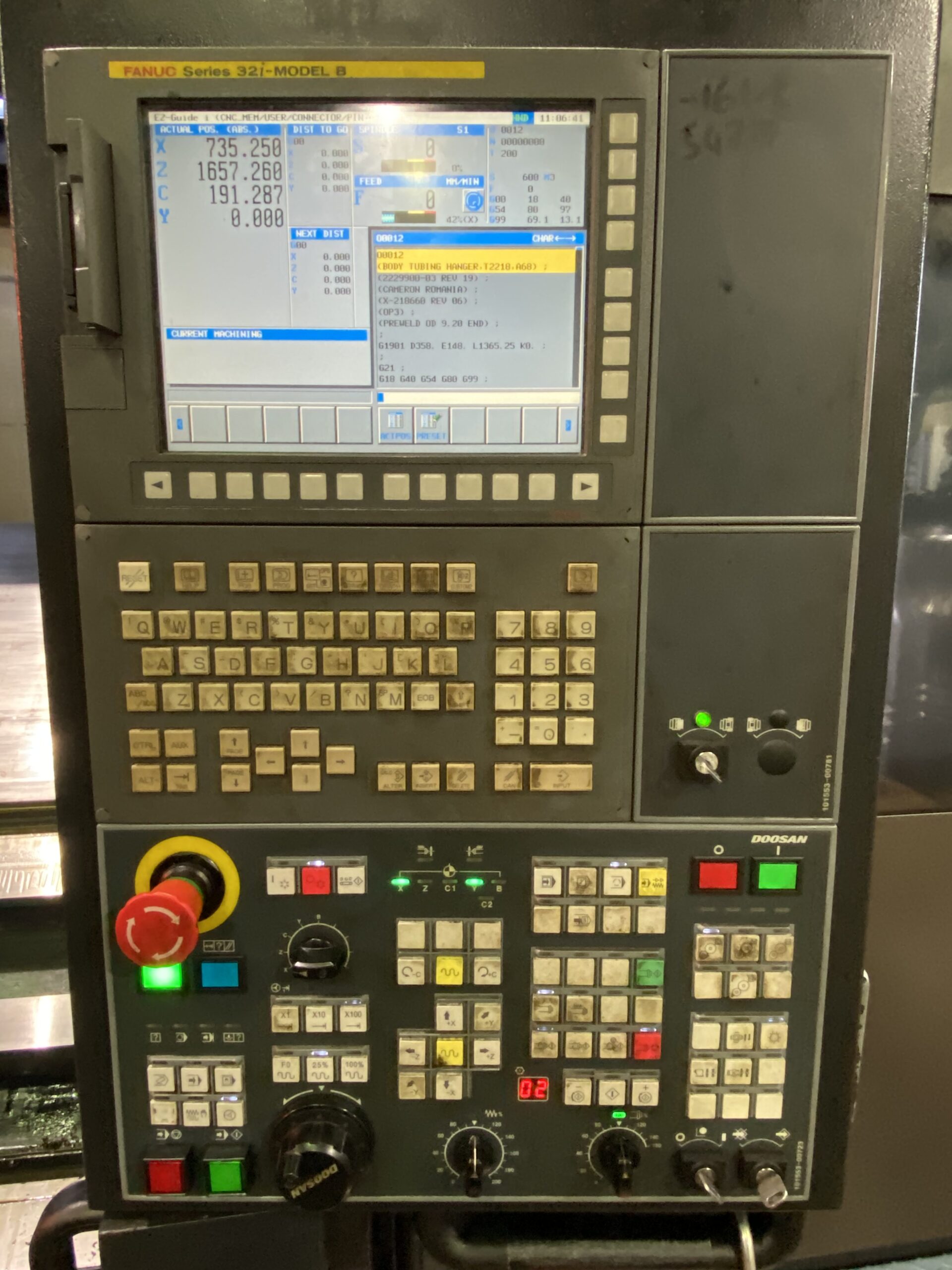

Control System: FANUC Series 32i-MODEL B

Year of Manufacture: 2013 / Installed 2014

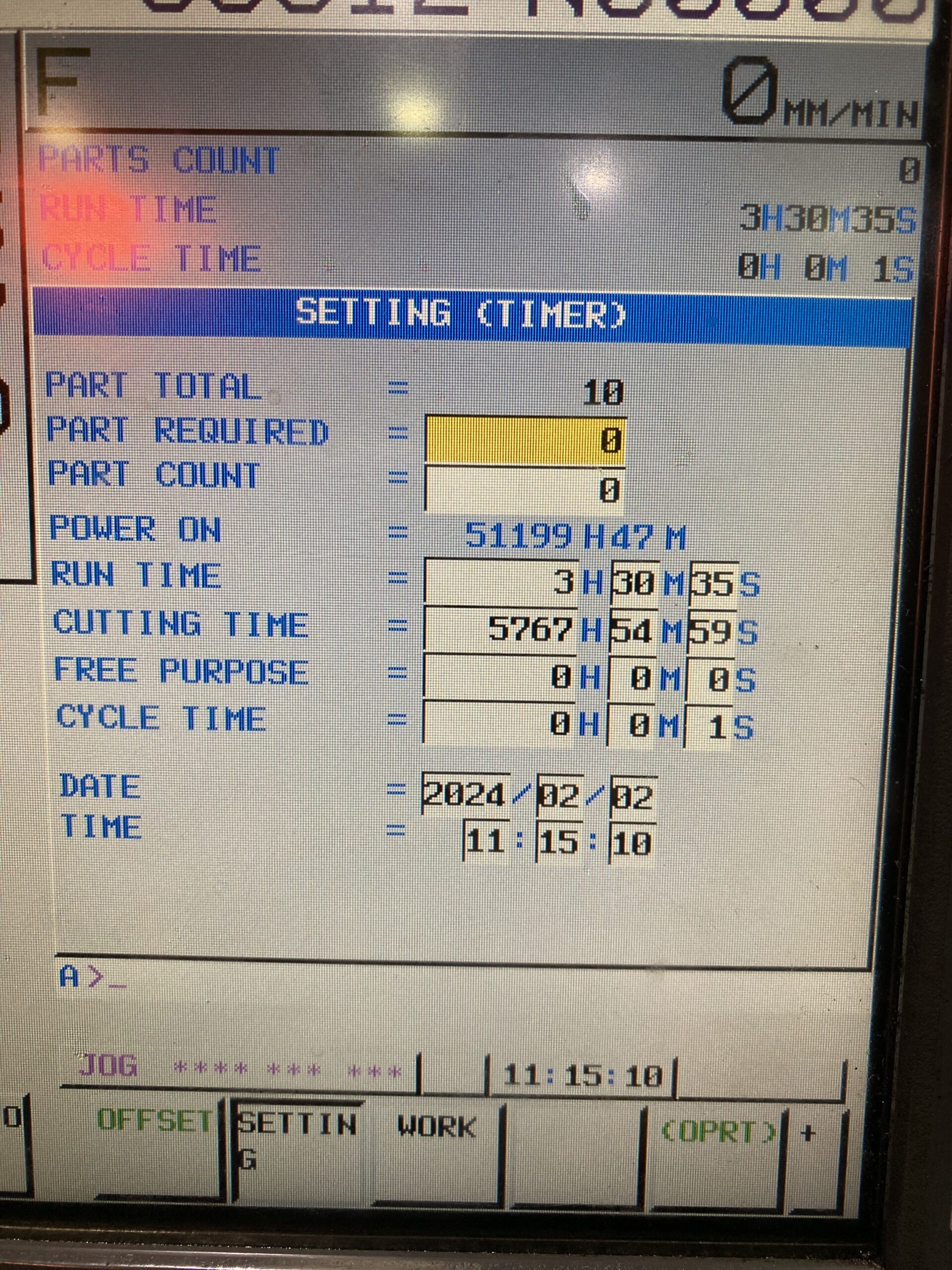

Operating Hours: 5767

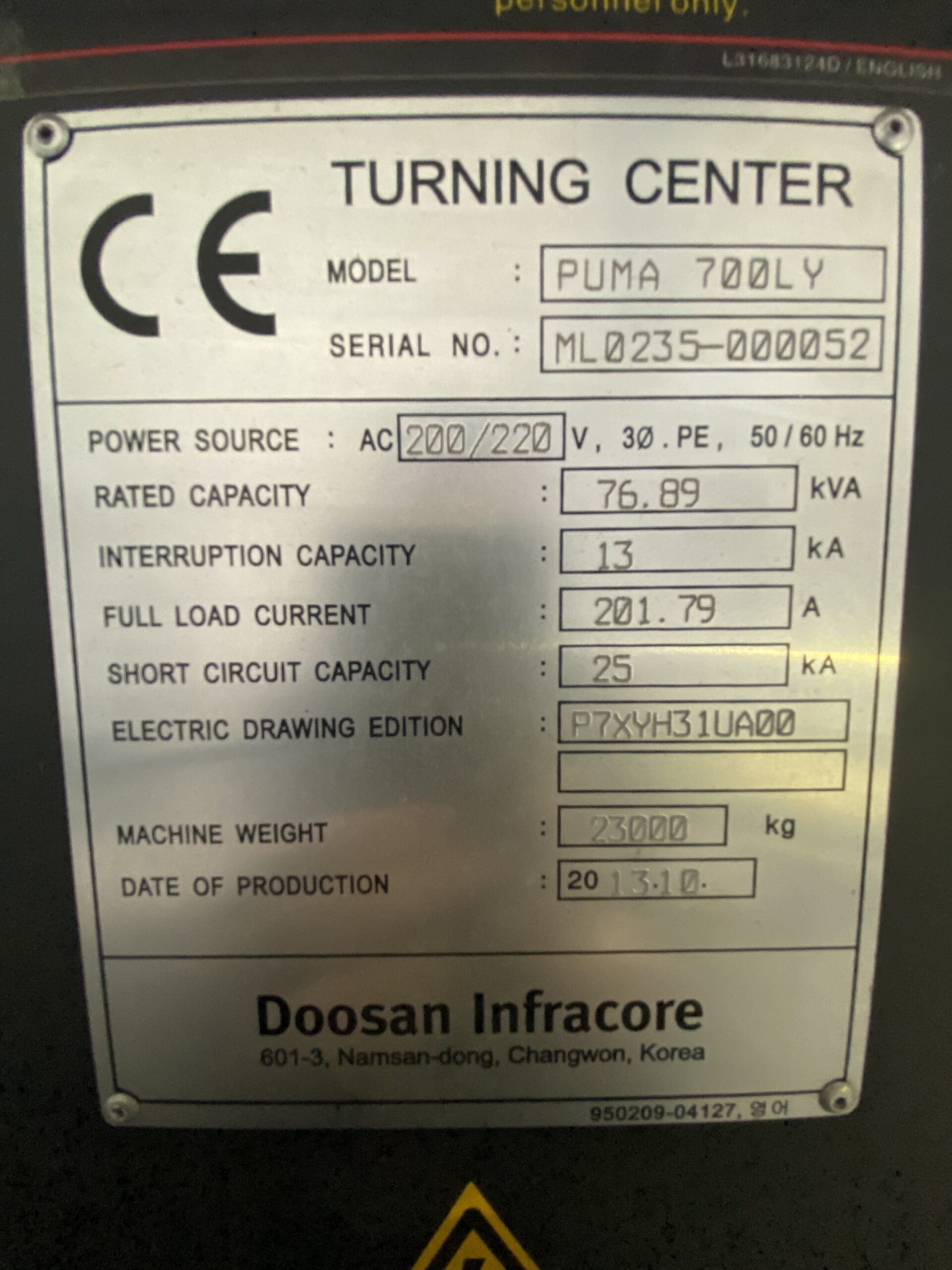

Serial No.: ML0235-000052



Machine with:

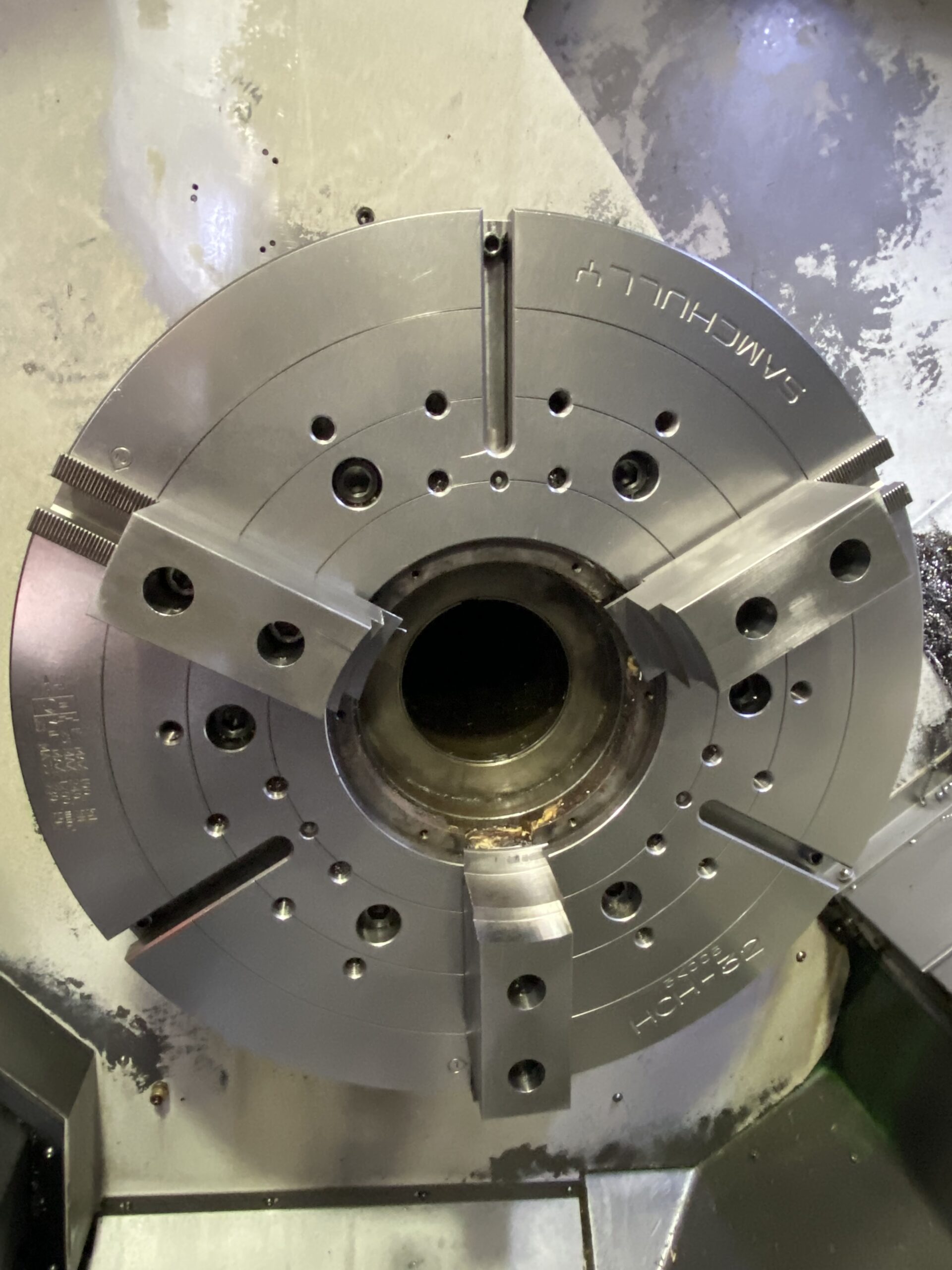

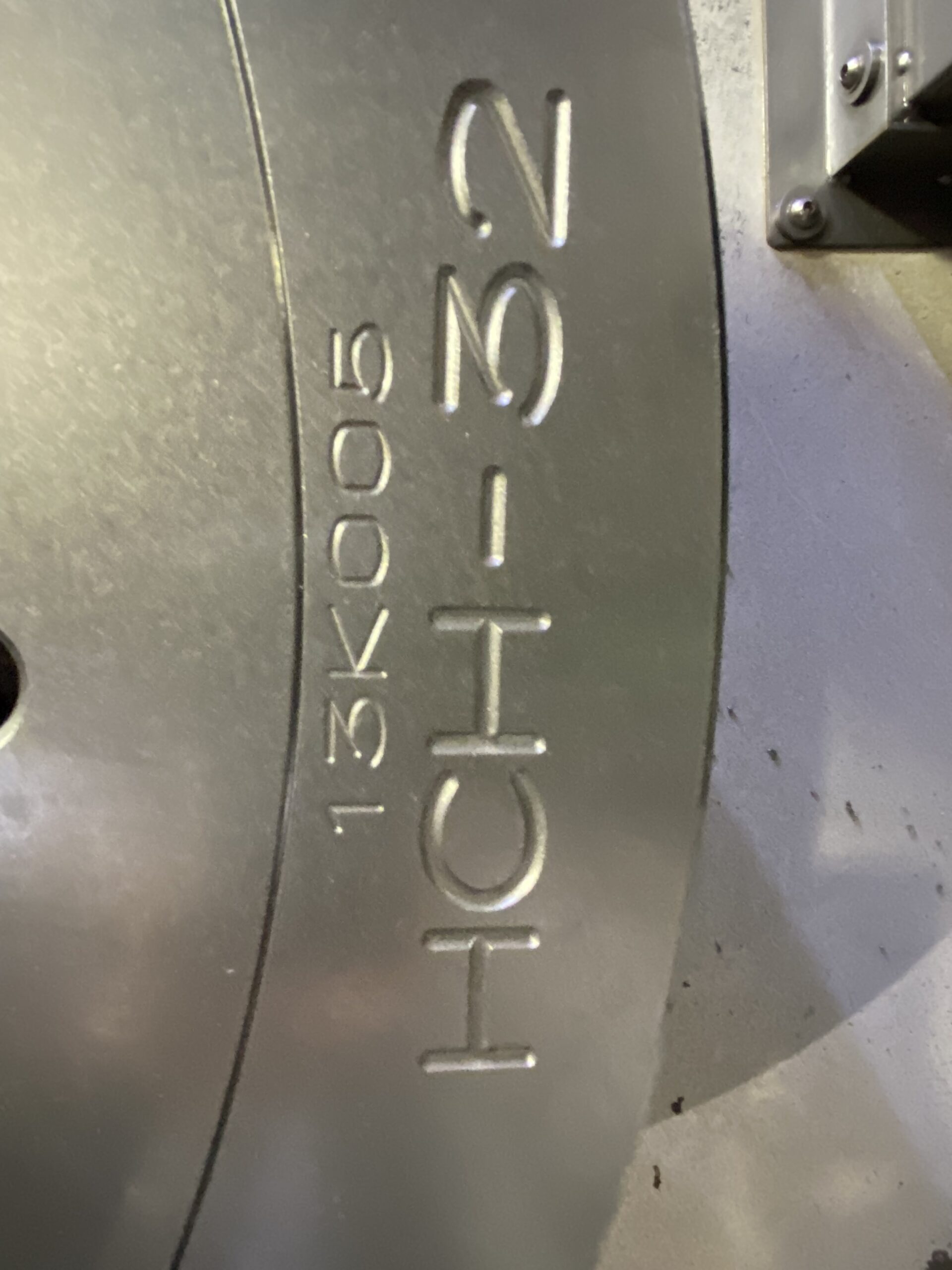

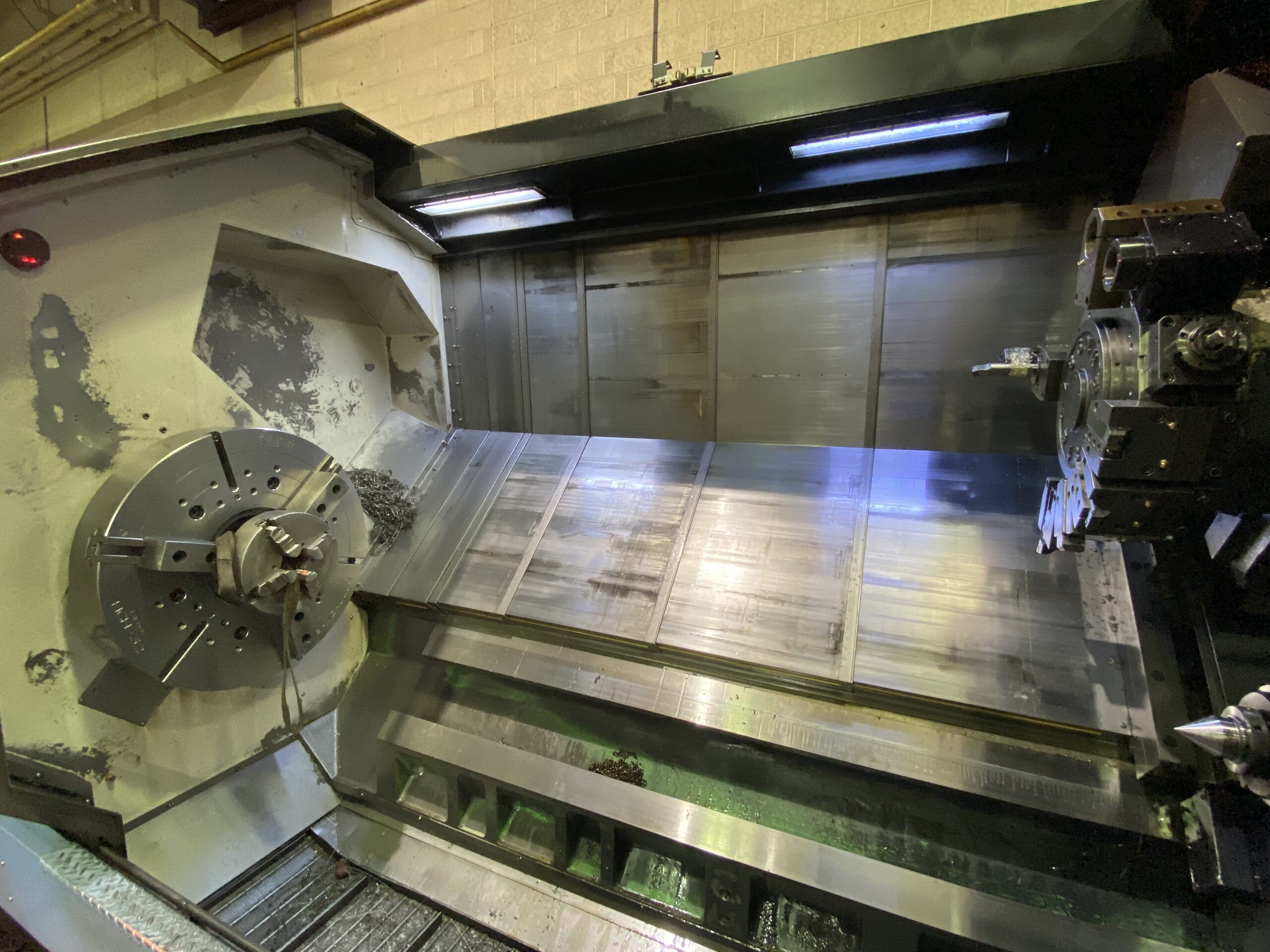

– 800mm 3-Jaw Chuck

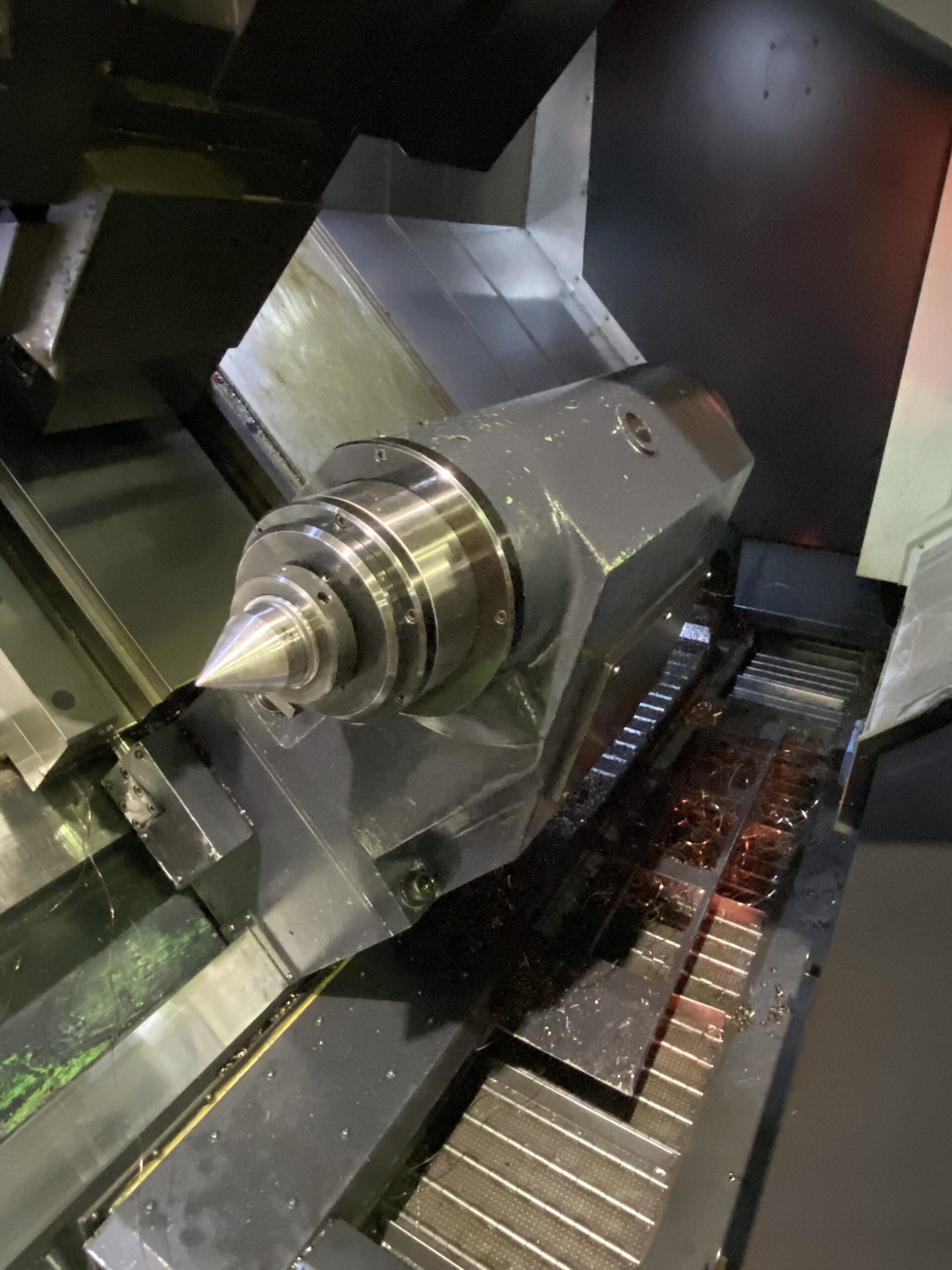

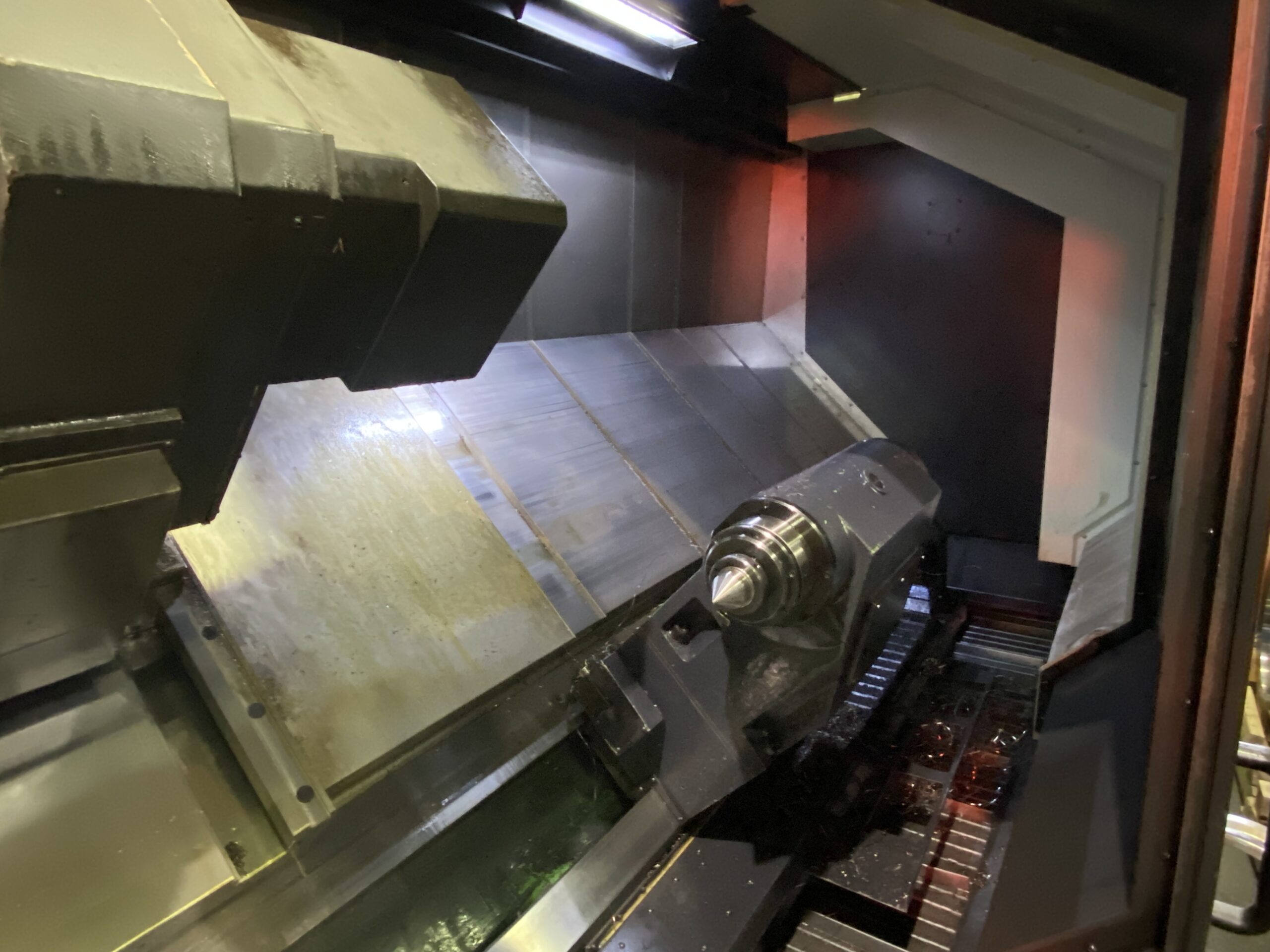

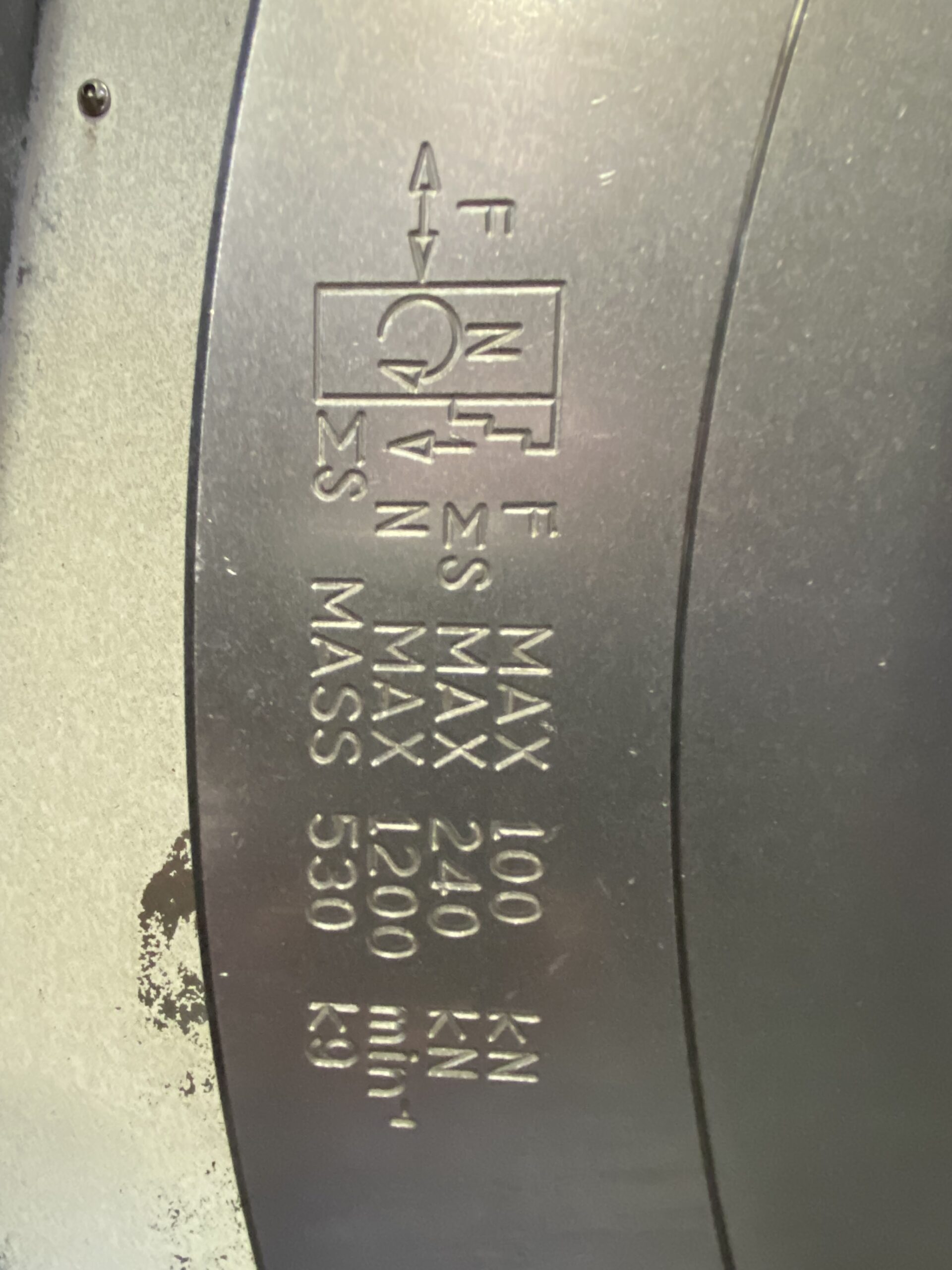

– Tailstock

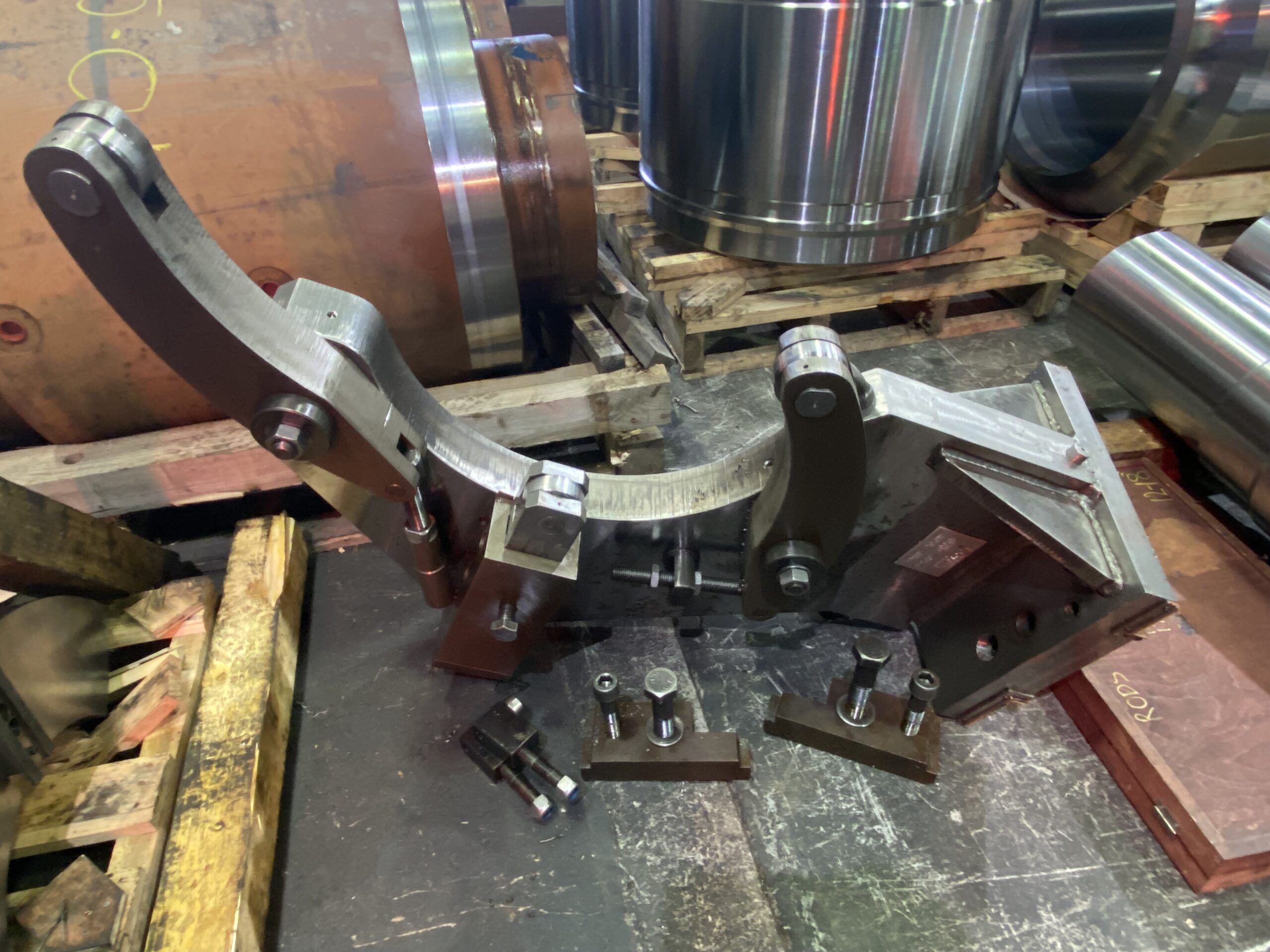

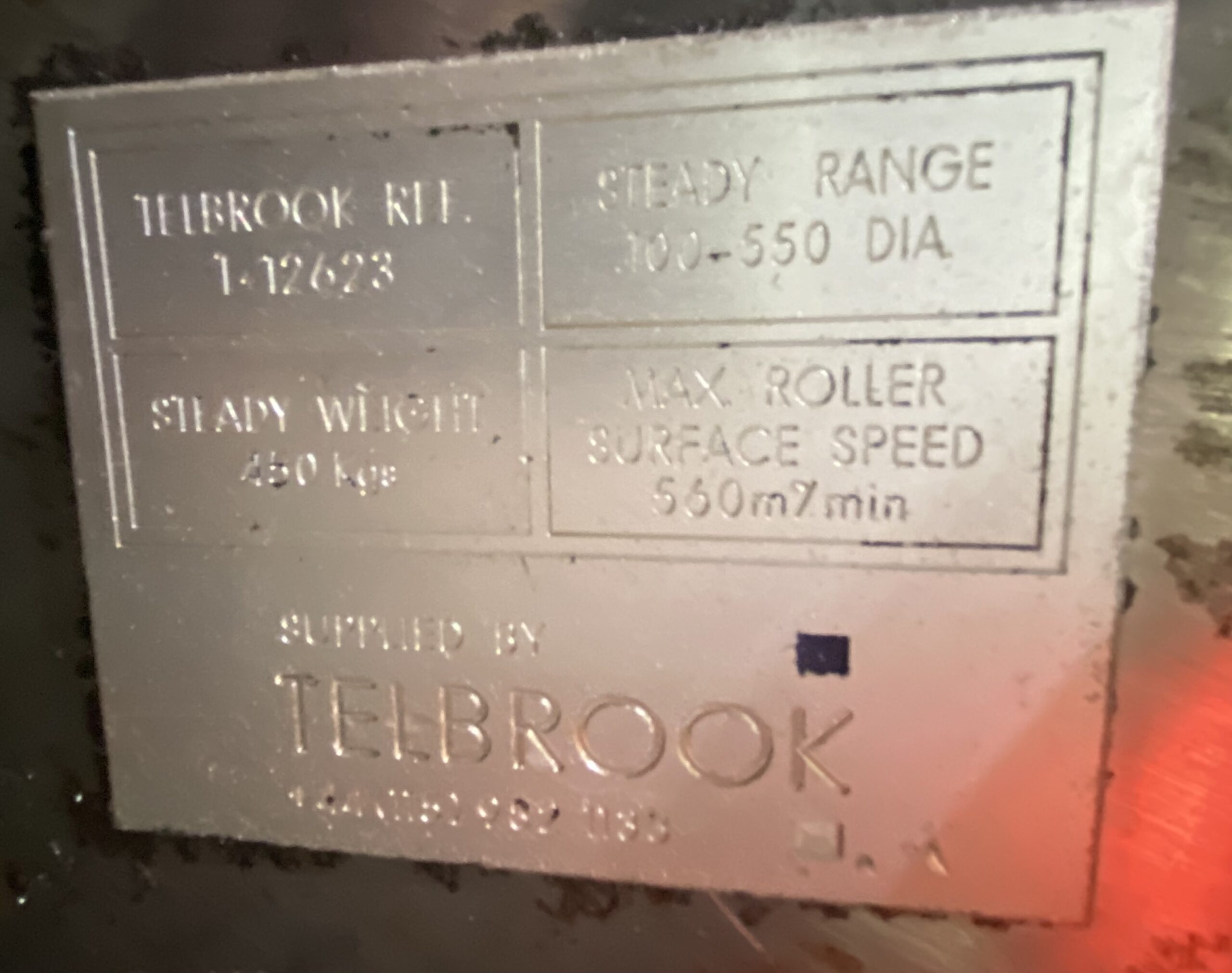

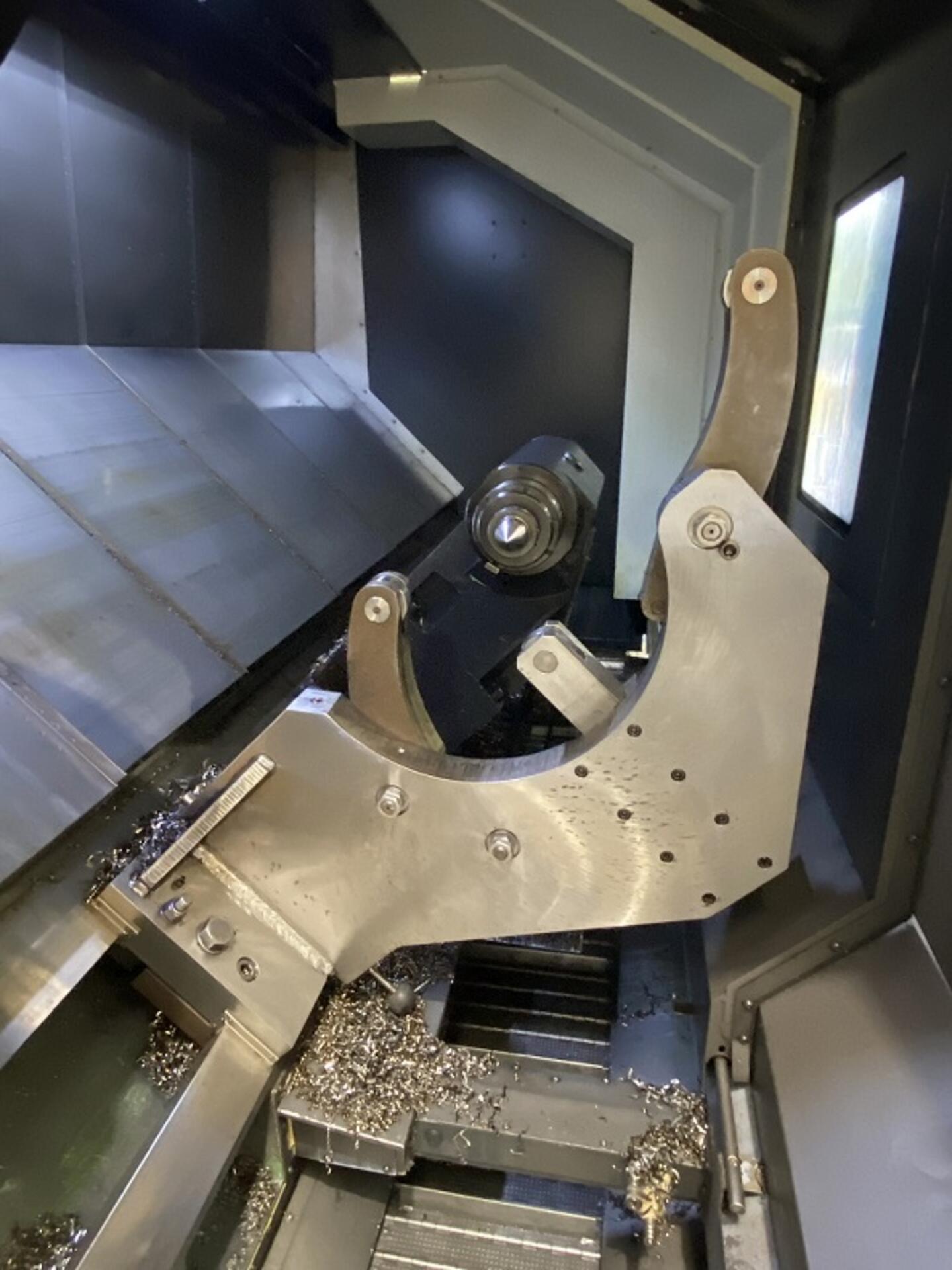

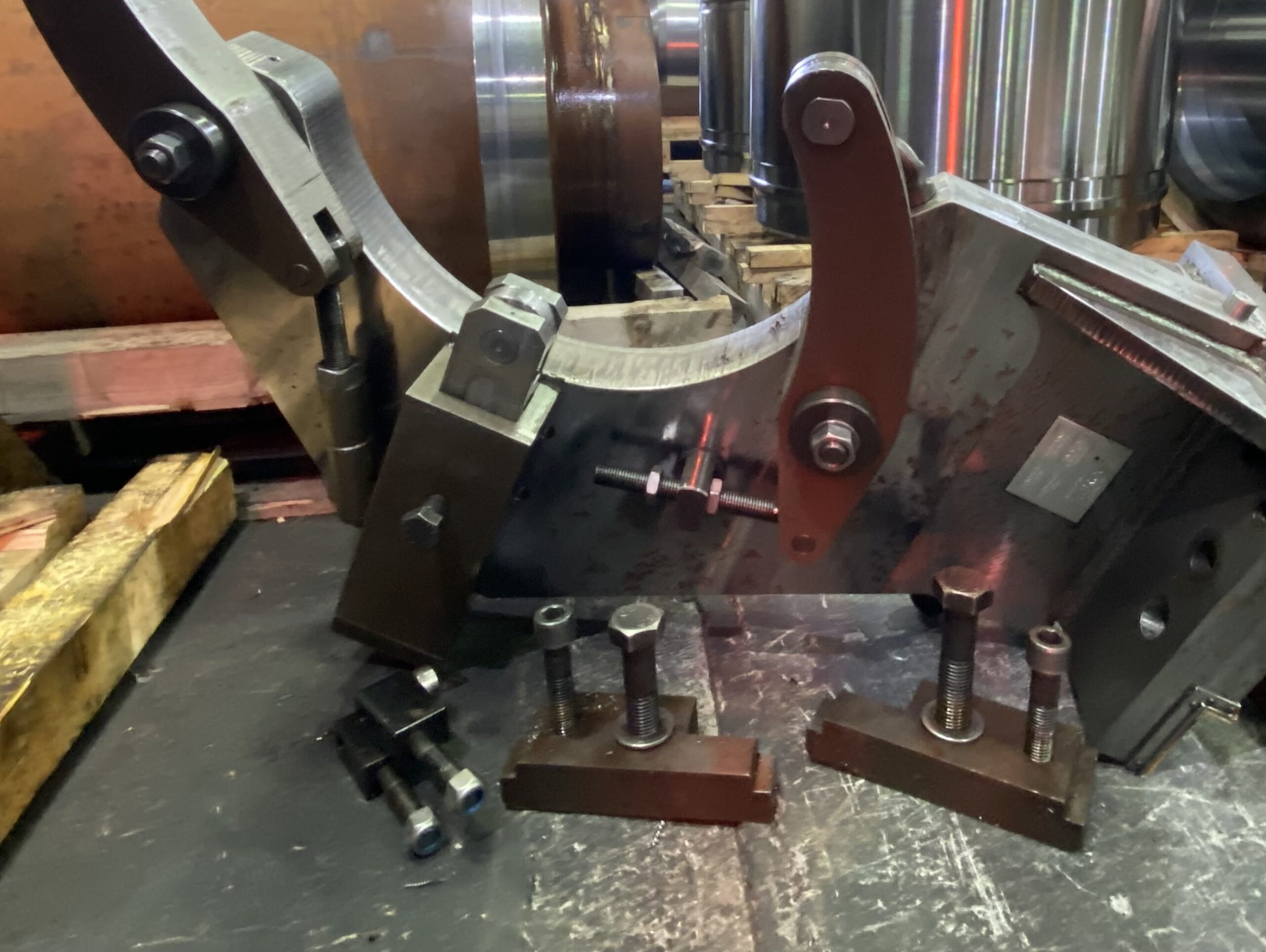

– Telbrook Steady Rest: 100-550mm Capacity

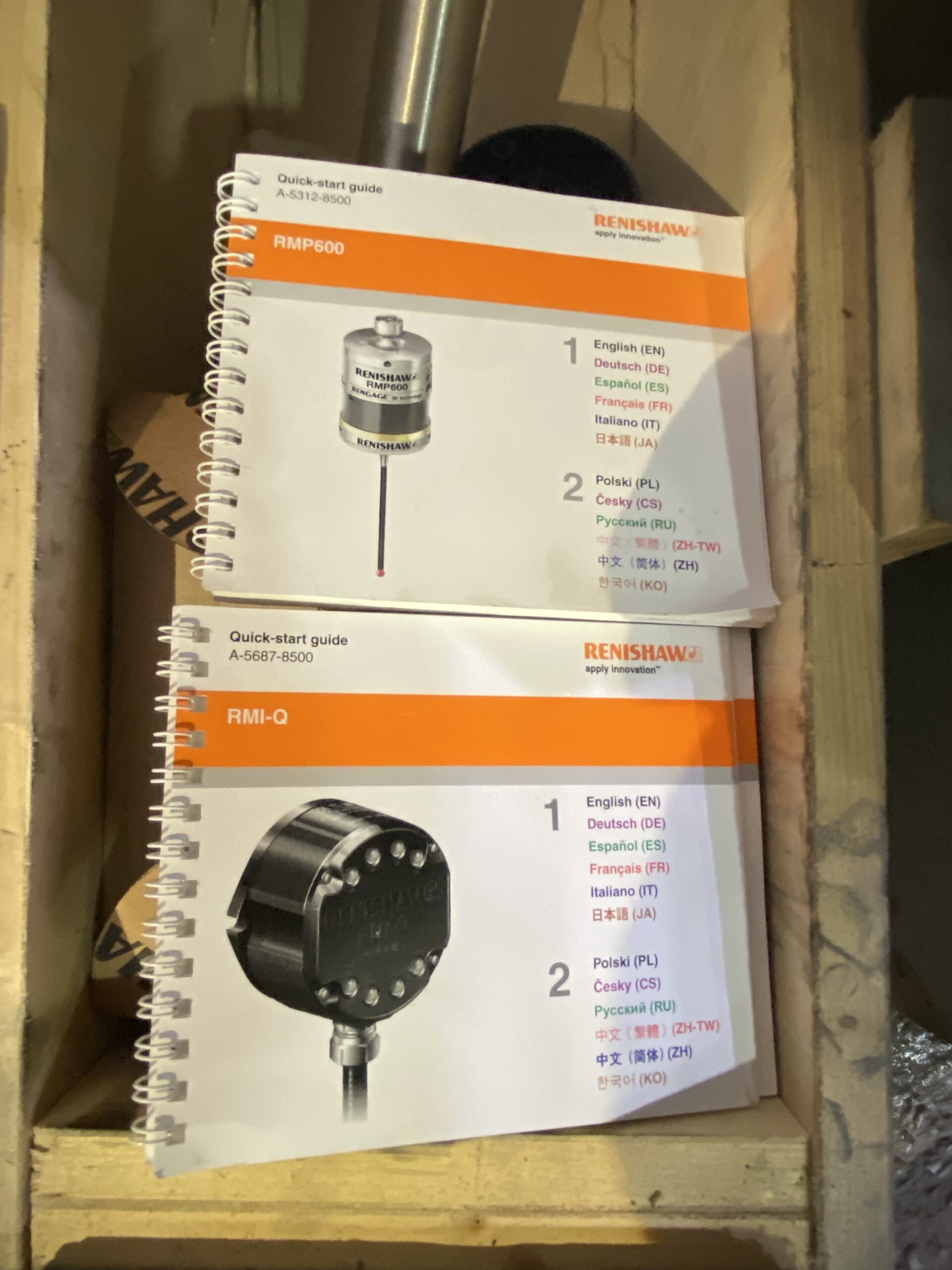

– Renishaw Removable Tool Setter (Tool Eye)

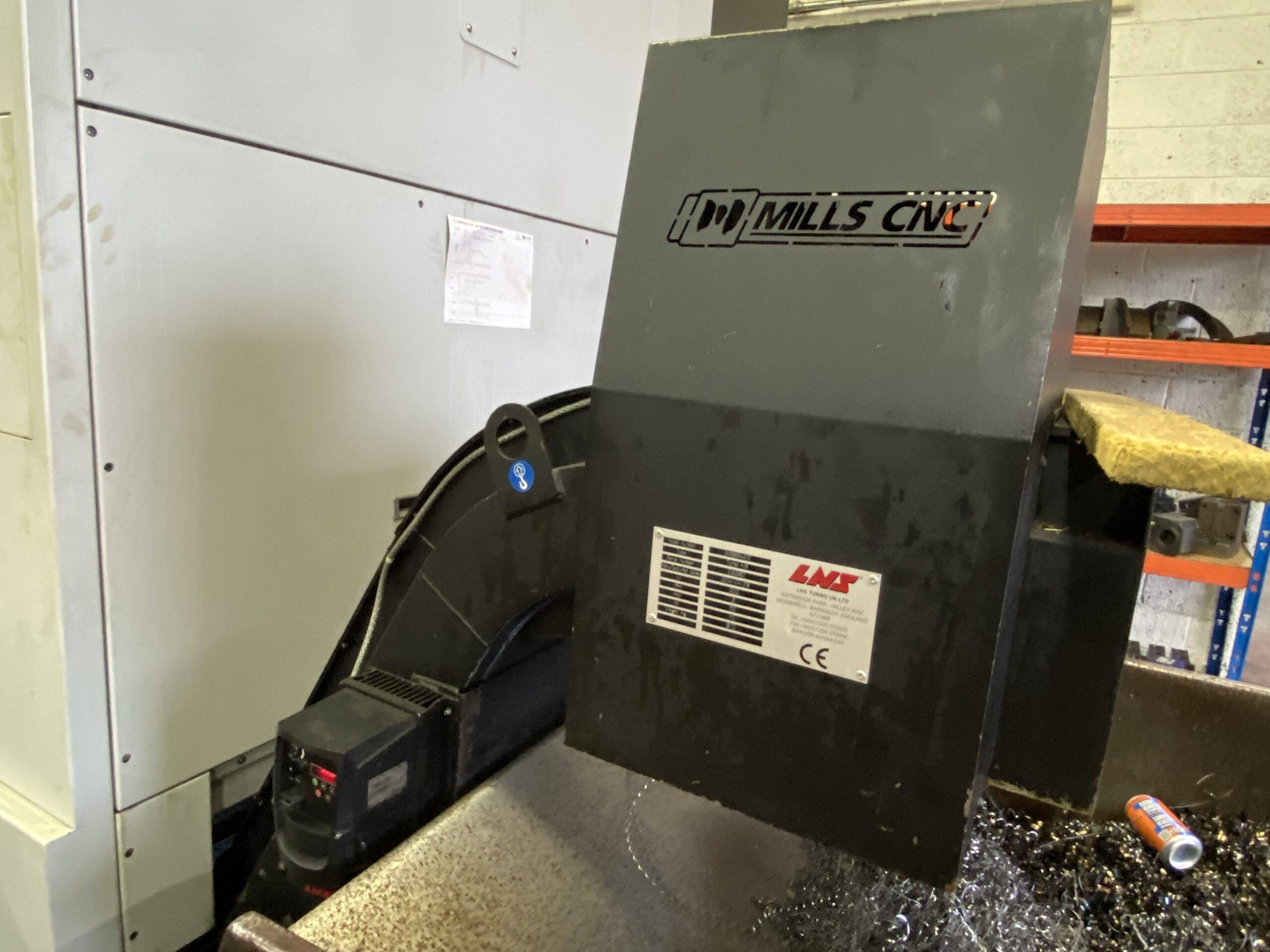

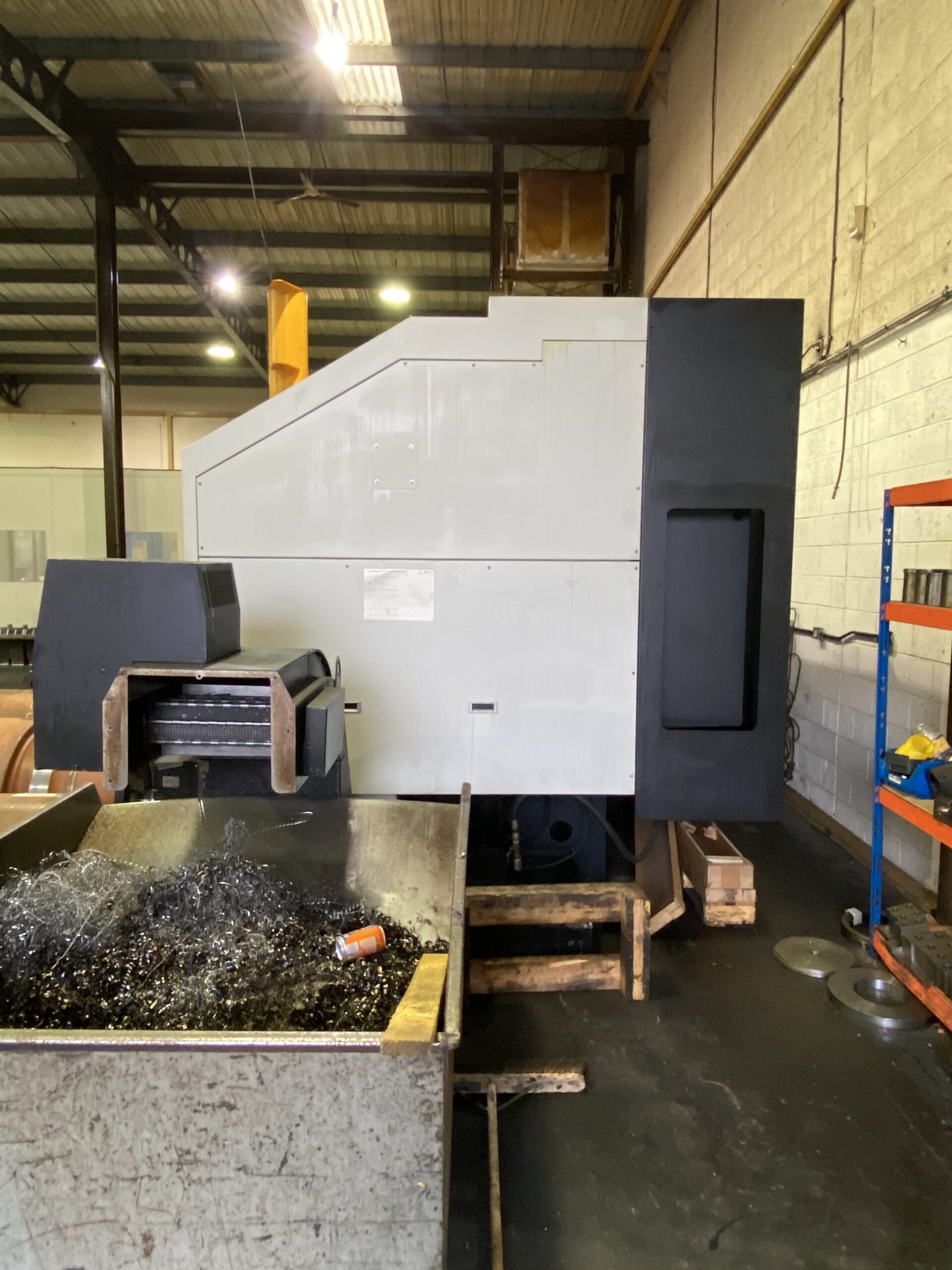

– Swarf Conveyor

– 2 Right Angle Driven Tool Holders

– 3 Straight Driven Tool Holders

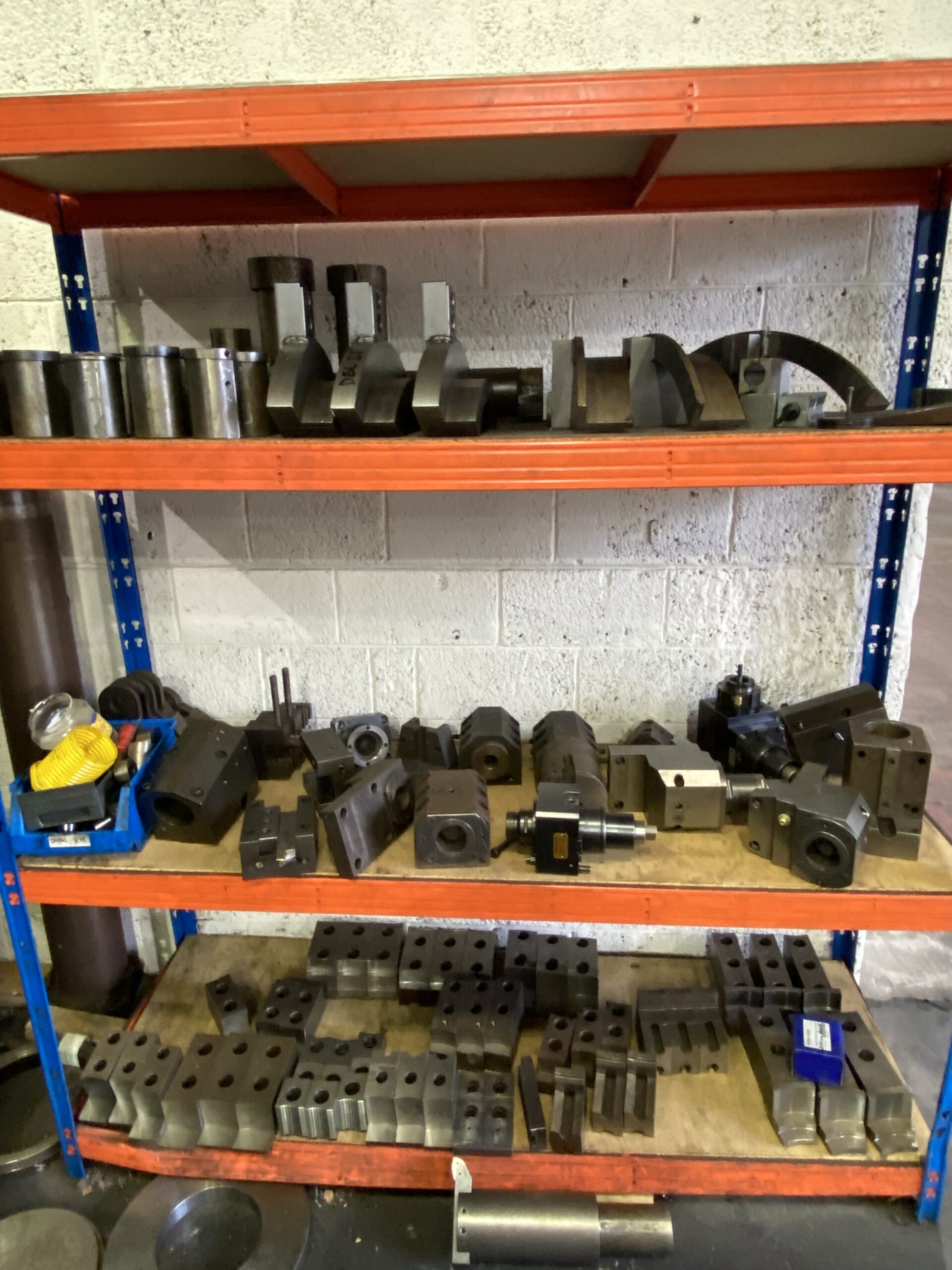

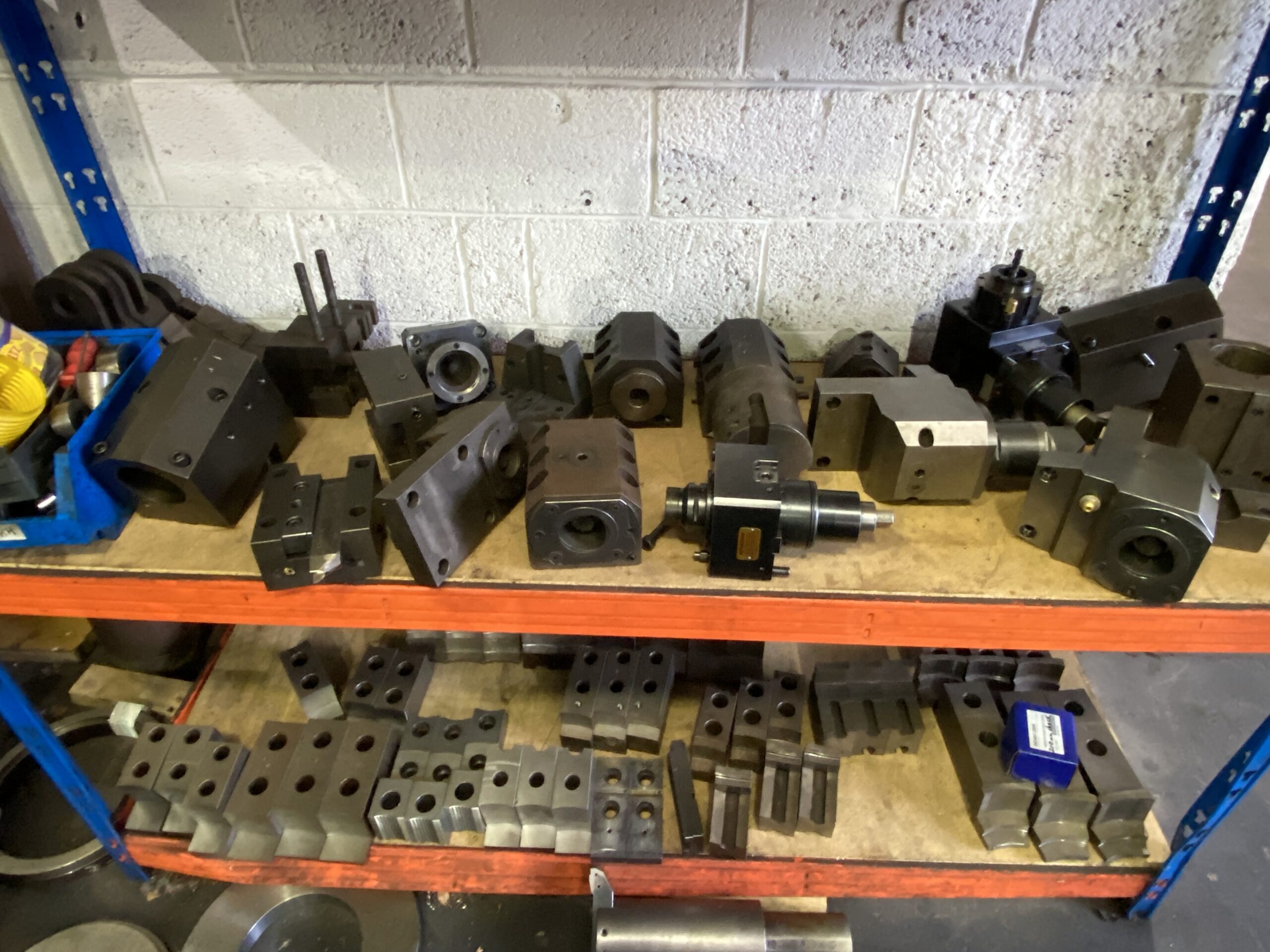

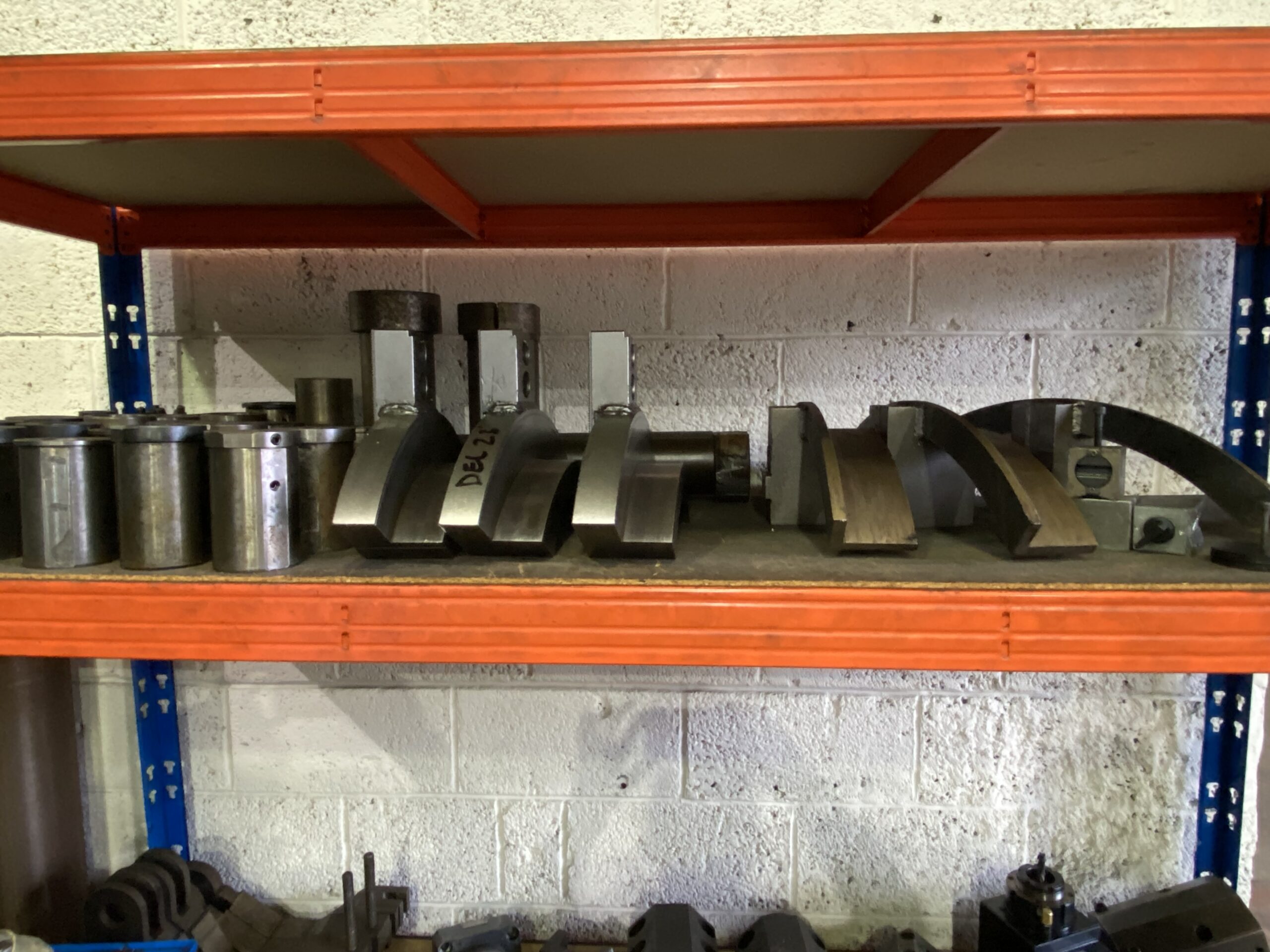

– Selection of Toolholders inc. Capto

Product description

Technical Specification:

Swing over the Cross-slide: 1000mm

Bar Capacity: 164mm

Chuck Size: 800mm

Spindle Bore: 180mm

Max. Cutting Diameter: 900mm

Max. Cutting Length: 3250mm

Swing: 1140mm

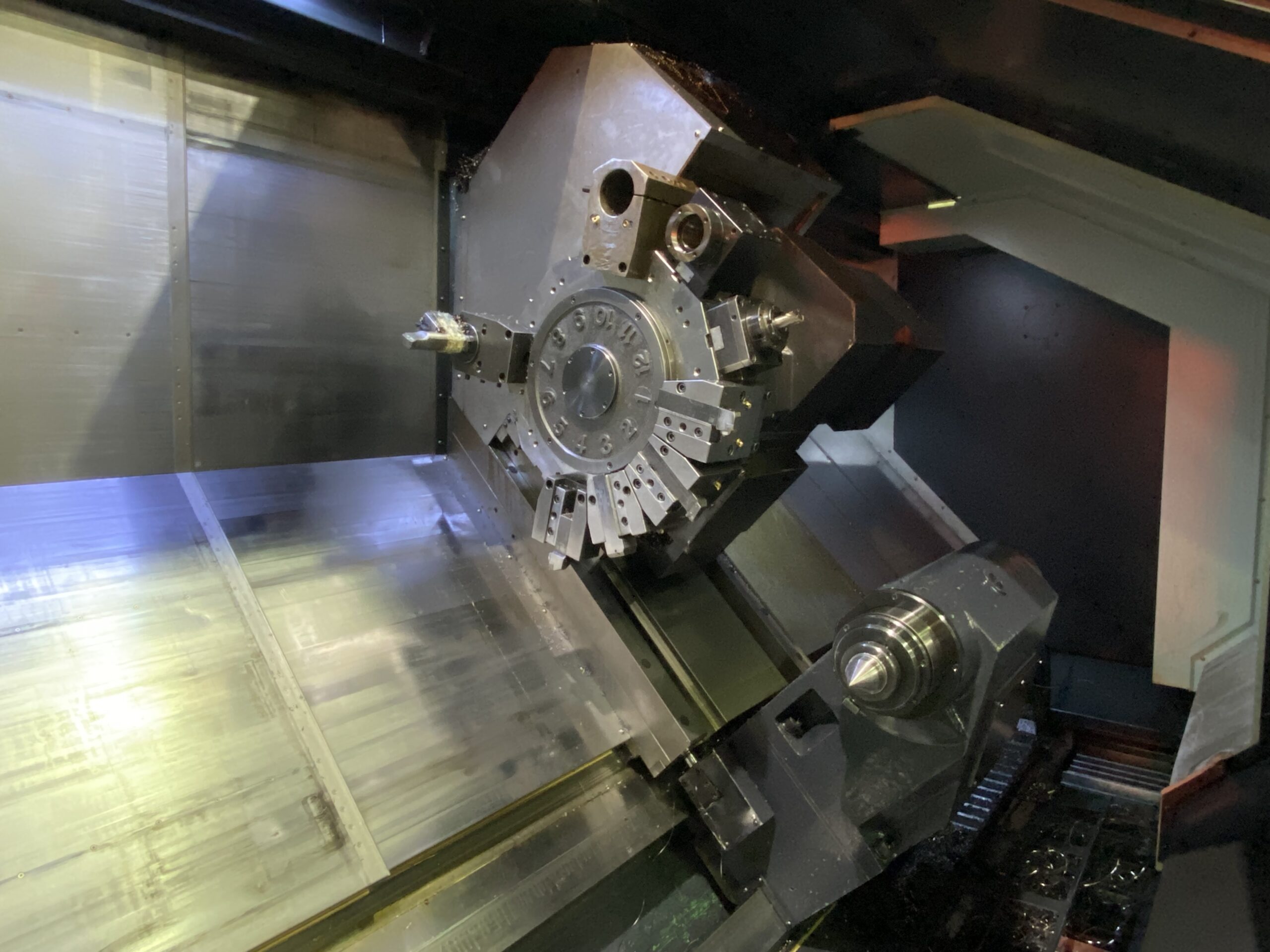

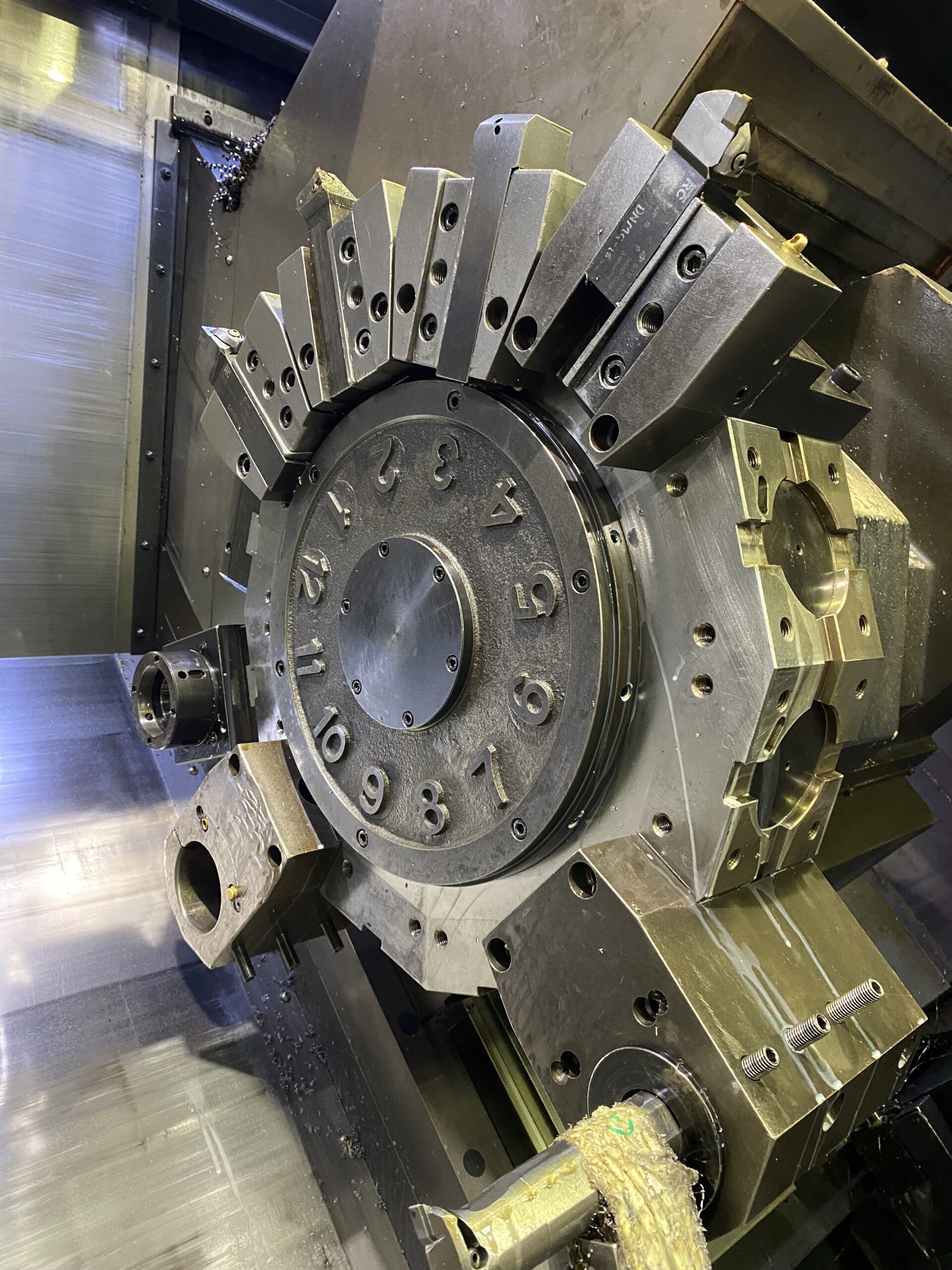

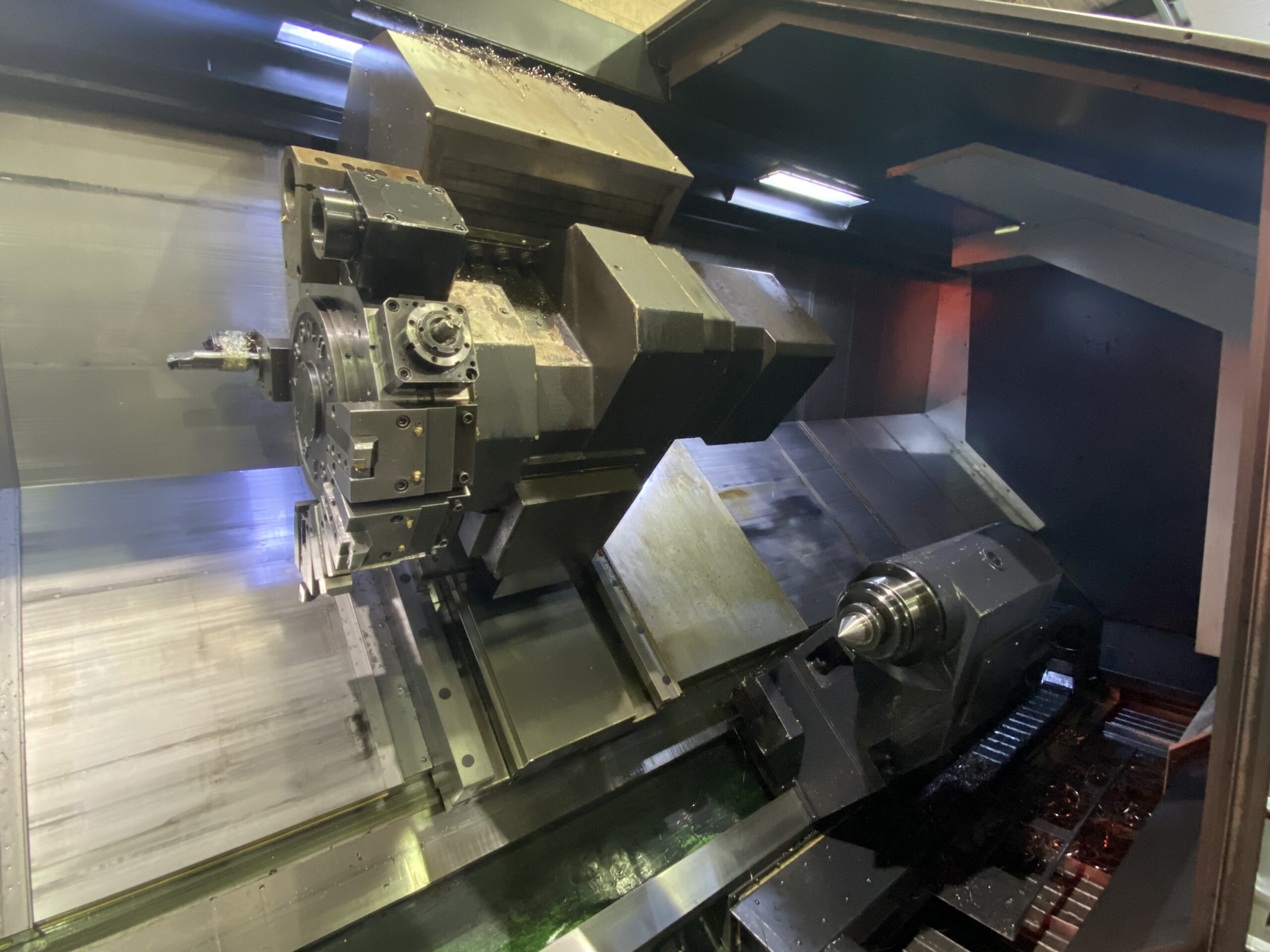

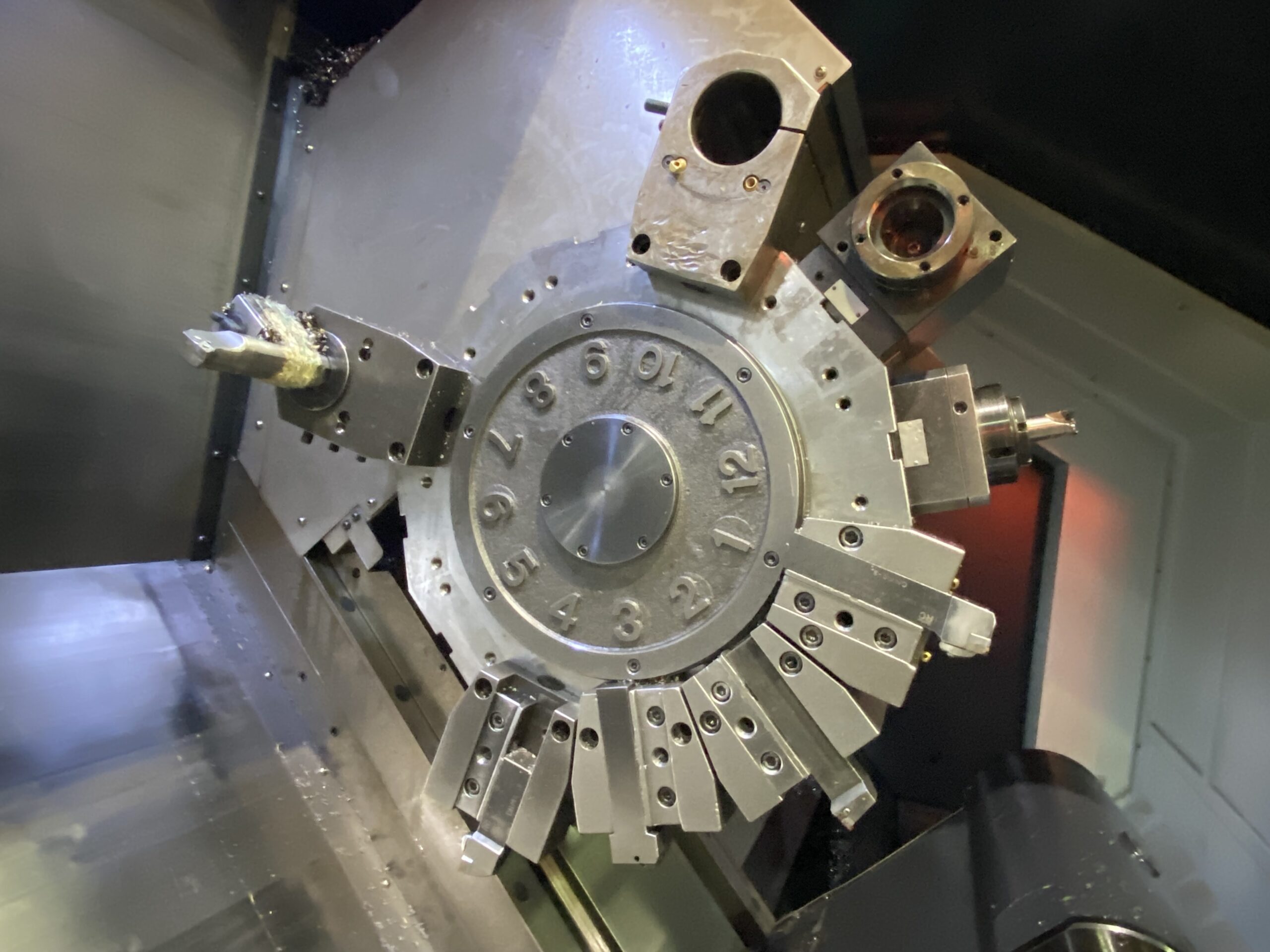

Turret Positions: 12-Station

Spindle Motor Power: 45kw

Spindle Speed: 1500RPM

Milling RPM: 3000RPM

Machine Dimensions: 7430 x 3020 x 2770mm

Machine Weight: 2300kg



For further information on this machine, please contact us on;

+44(0)1506 417620

+44(0)7831 293503
