Product description
Technical Specification

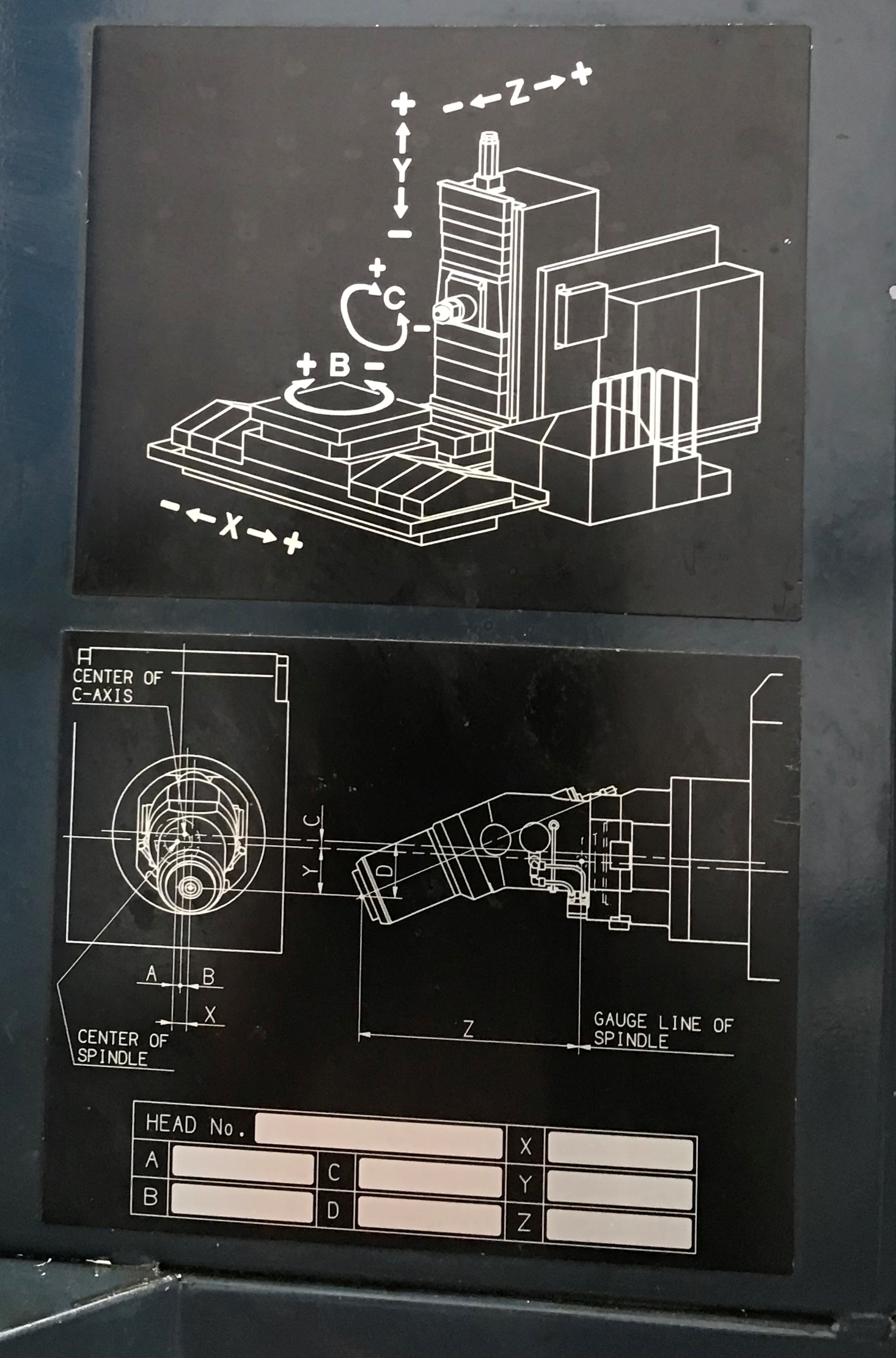

Range of Movements:
Table X-Axis: 2000mm
Spindle Y-Axis: 1600mm
Column Z-axis: 1500mm
Spindle centre to pallet top: 50 to 1650mm
Spindle nose to pallet centre: 450 to 1950mm

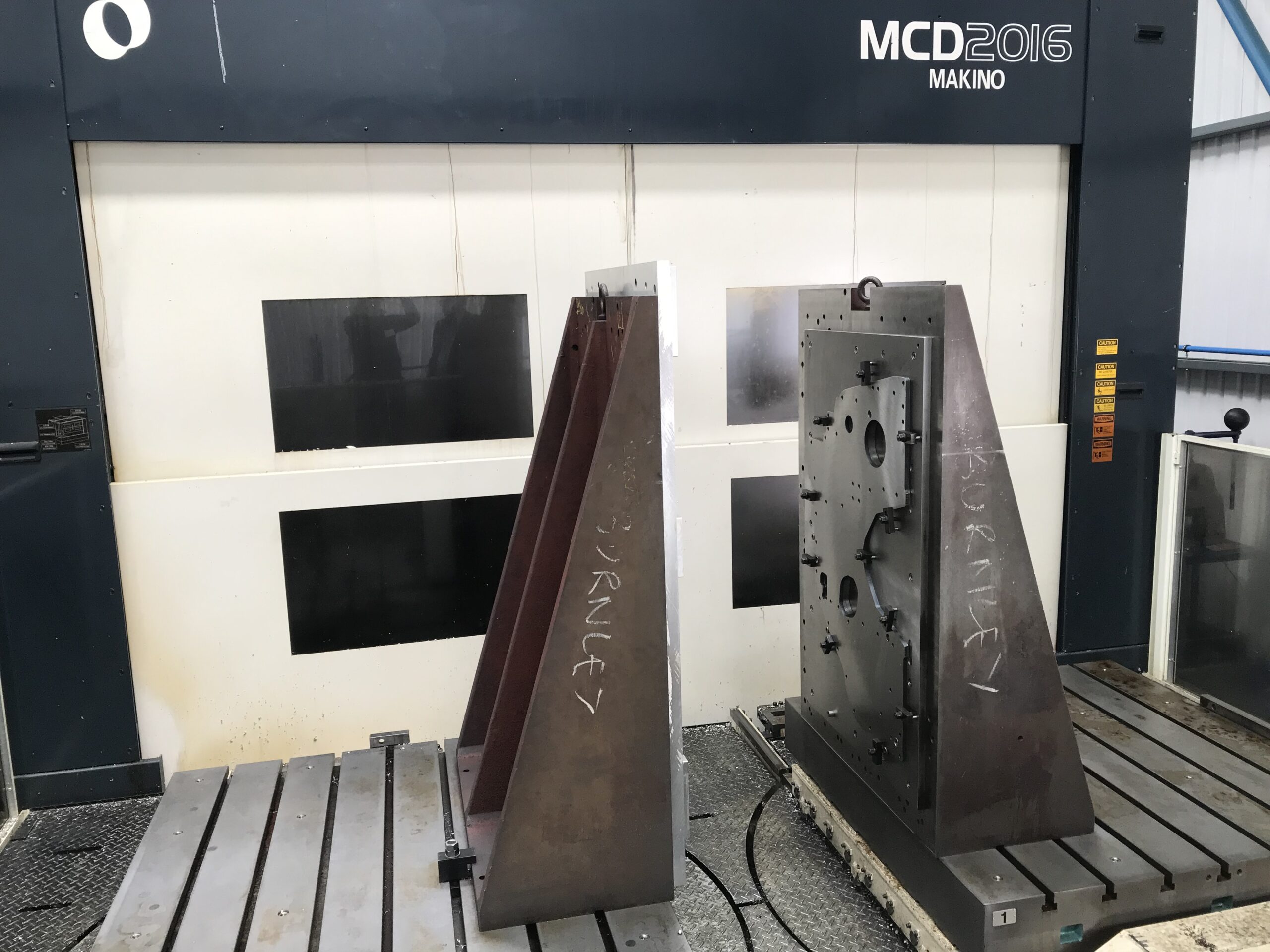

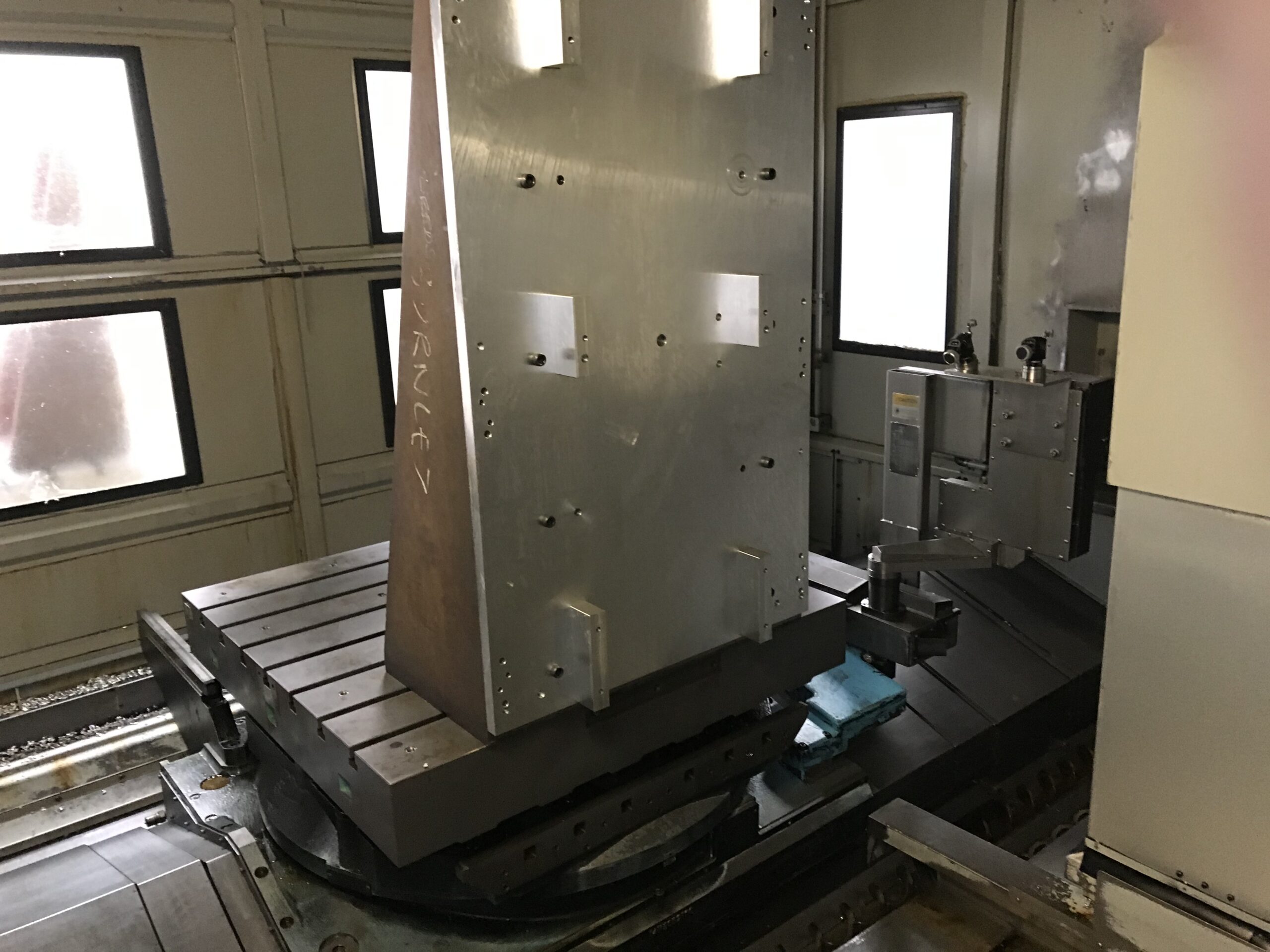

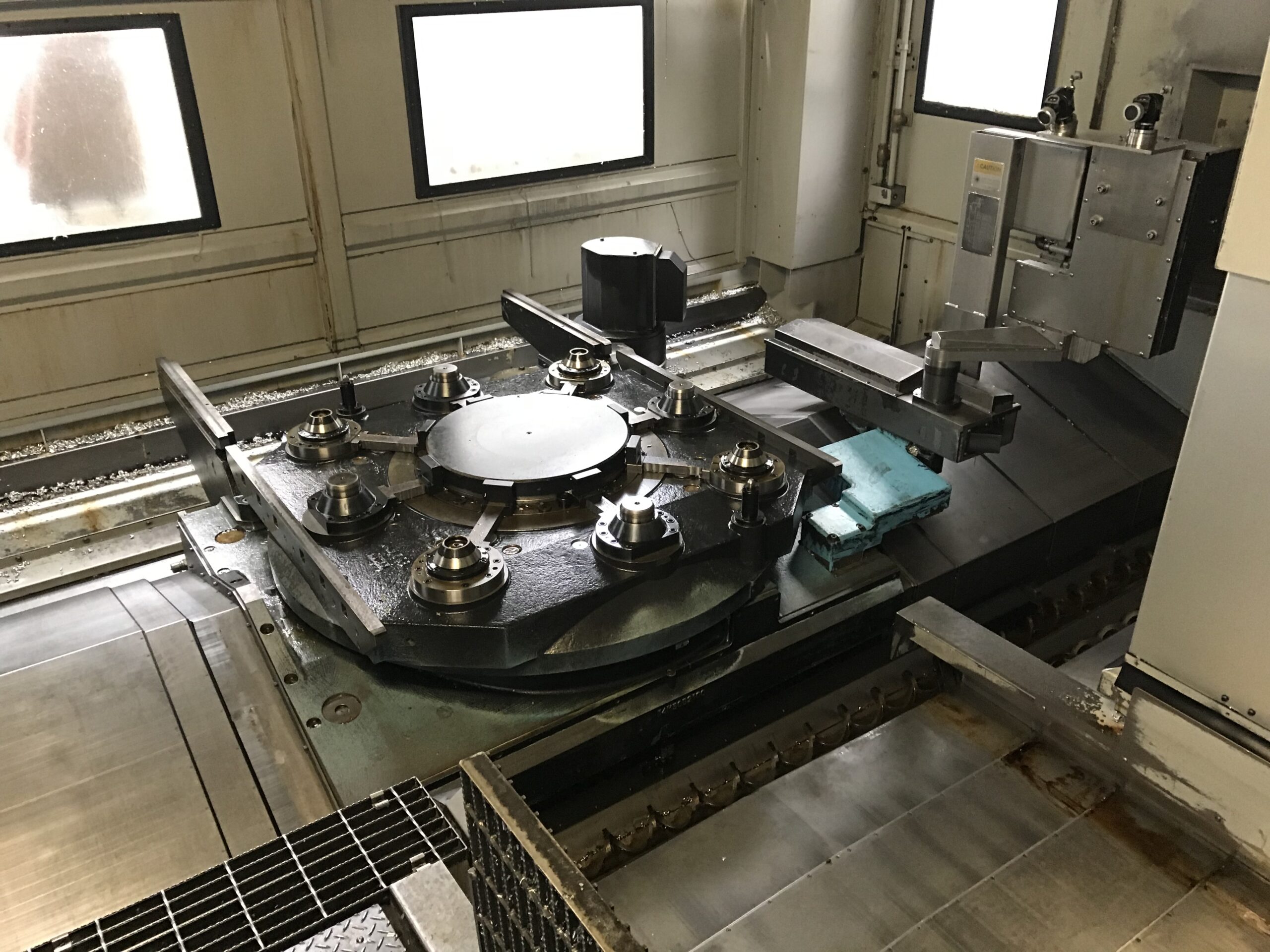

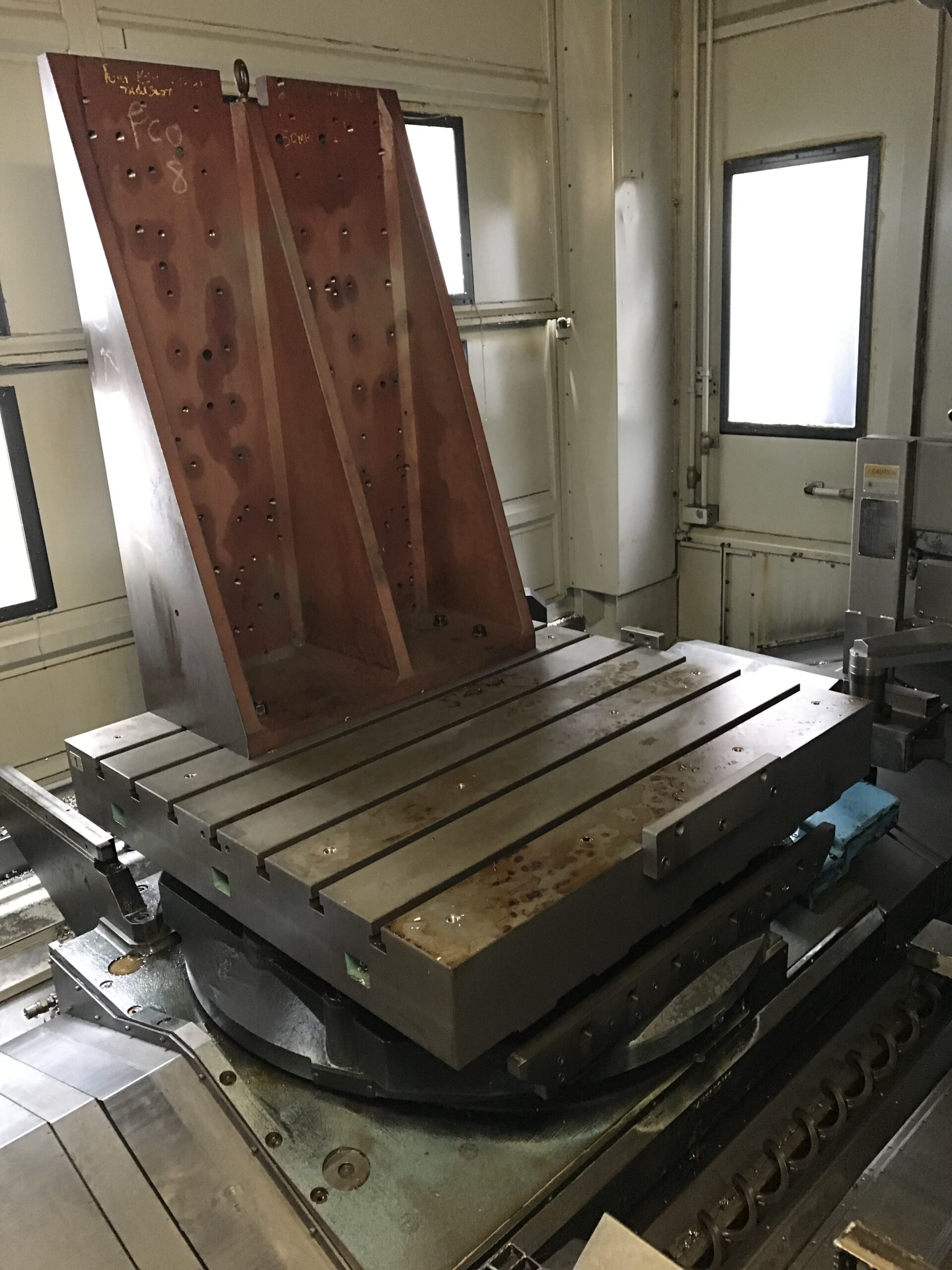

Pallet:
Size: 1300 x 1300mm
Pallet surface – T slots: 22mm H8 x 7
Maximum load on pallet: 12,000kg
Pallet weight: 1,500kg
Feedrates:
X/Y/Z
Minimum increment: 0.001mm
Jogging: 1-4,000mm/min
Cutting: 1-16,000mm/min
Rapid: 16m/min

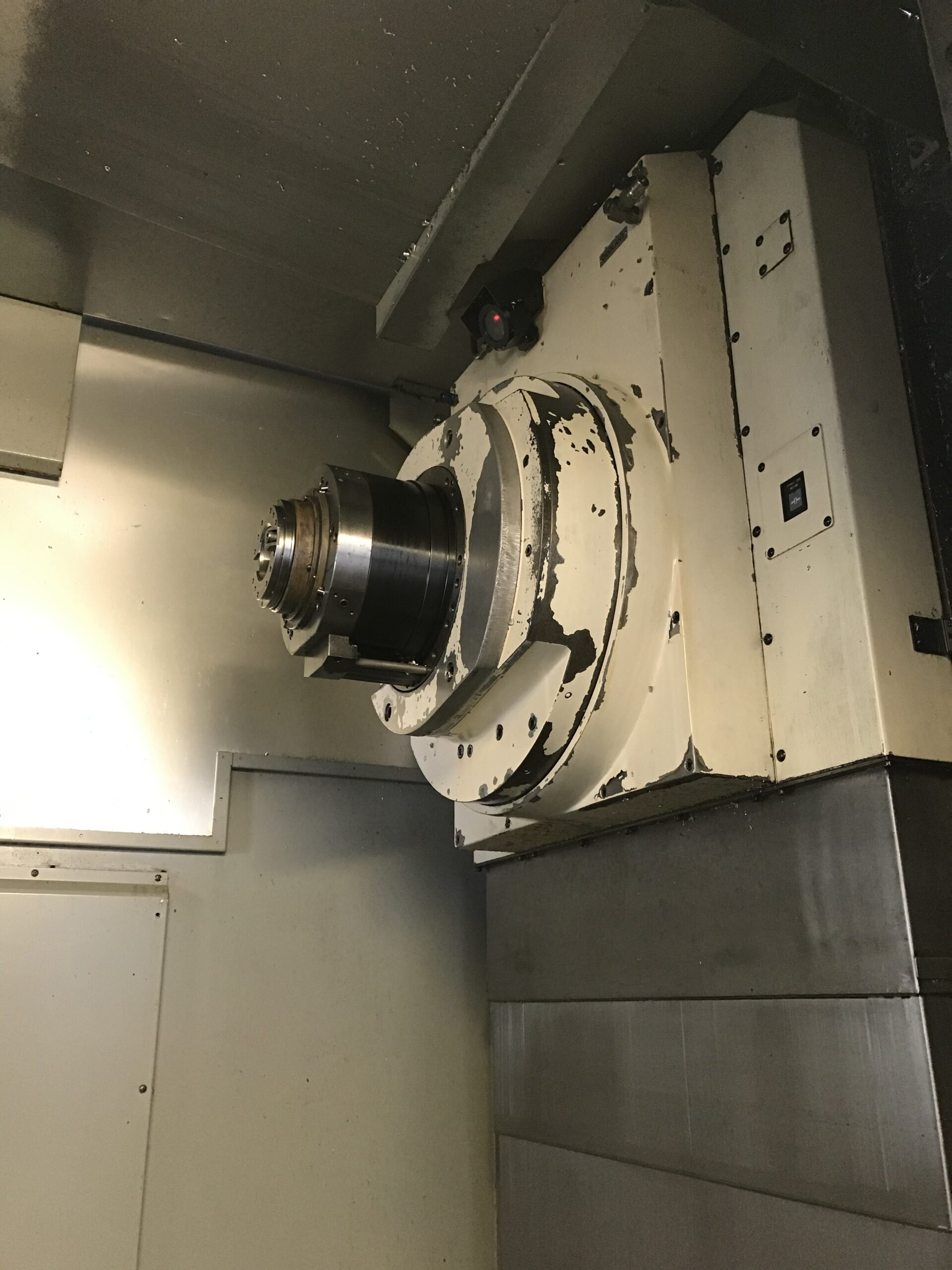

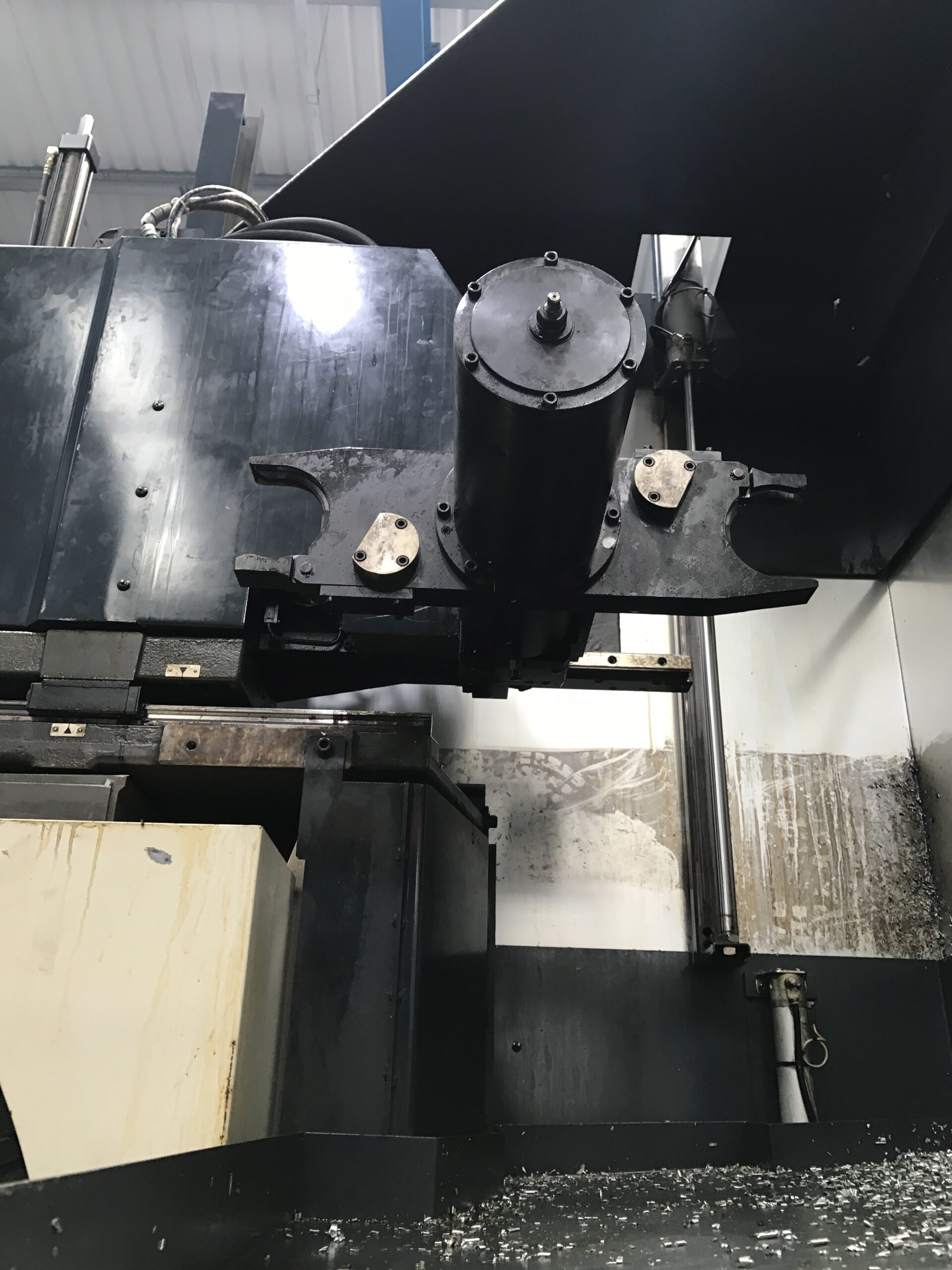

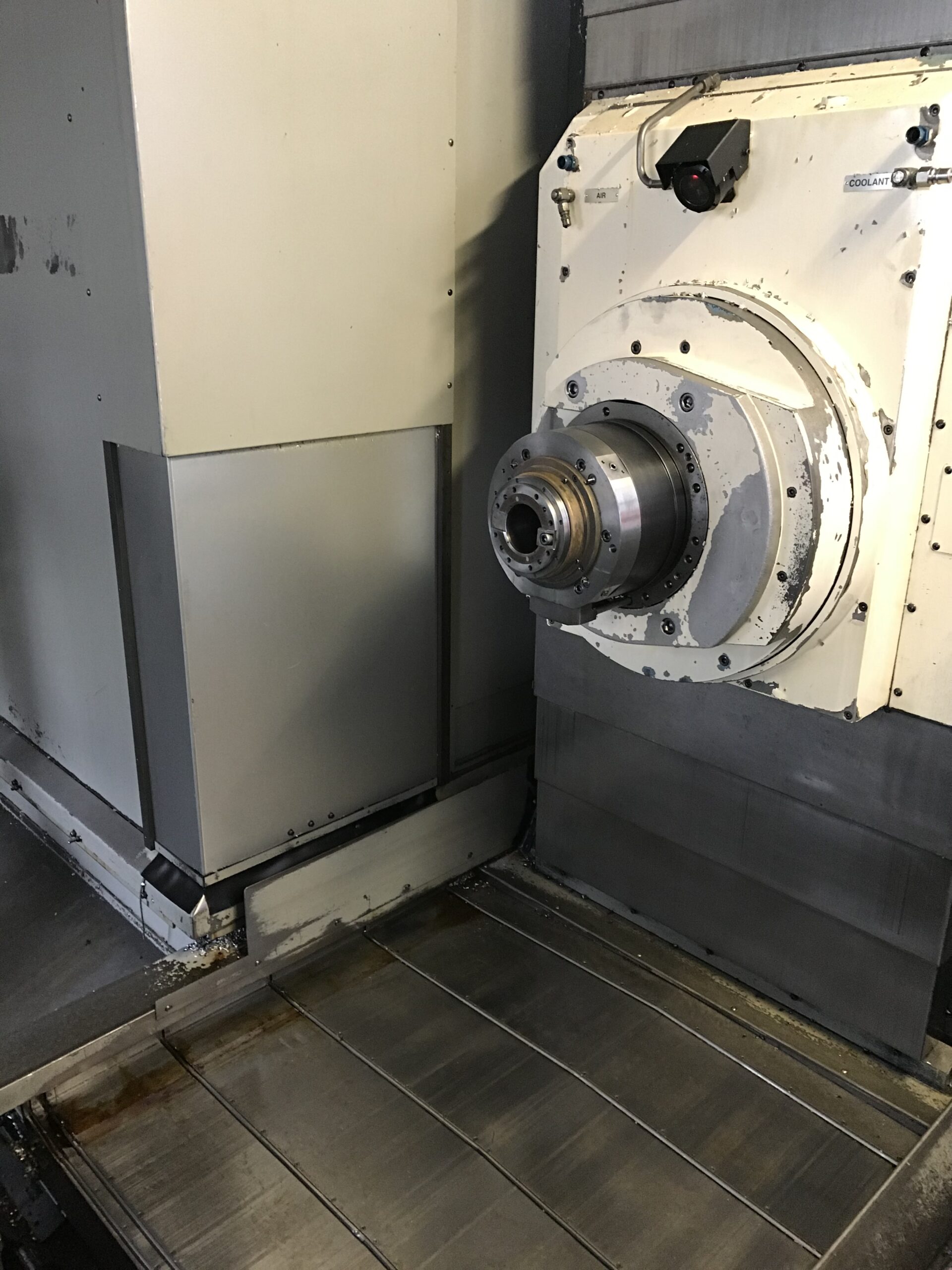

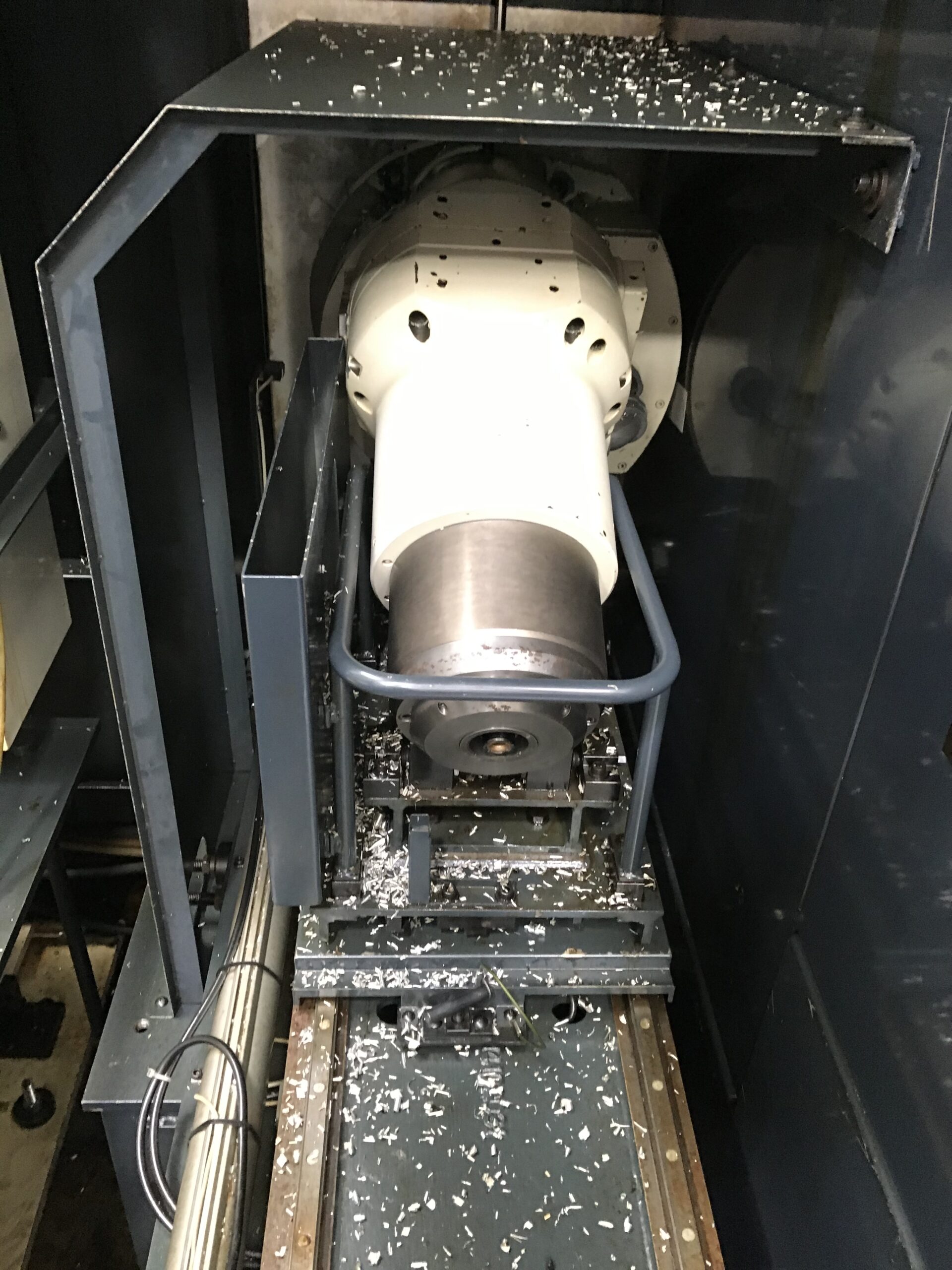

RJ 15/50 Spindle:
Spindle nose: BT50 Big Plus
Spindle motor: 50kw
Spindle speed: 20-15000rpm

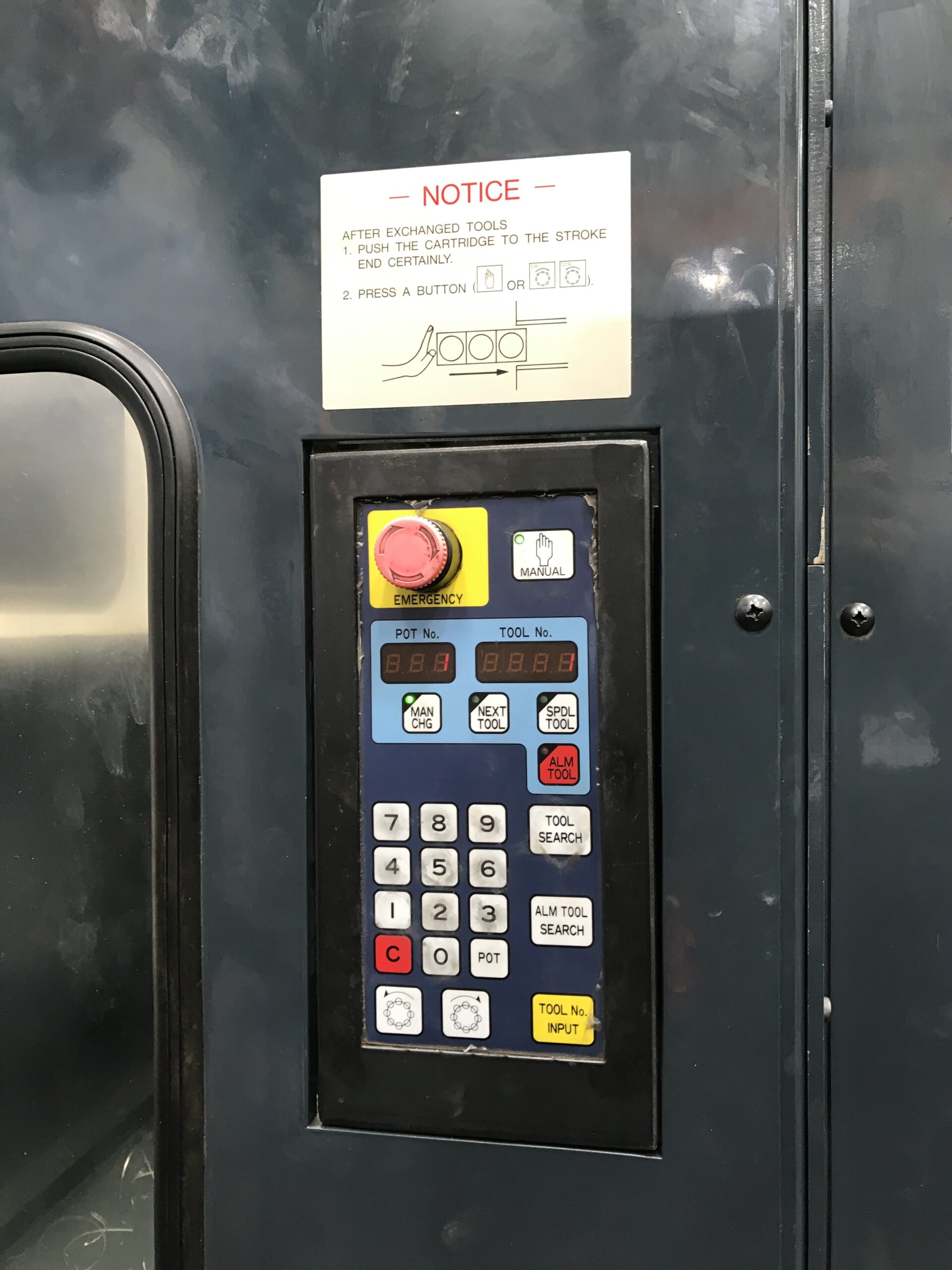

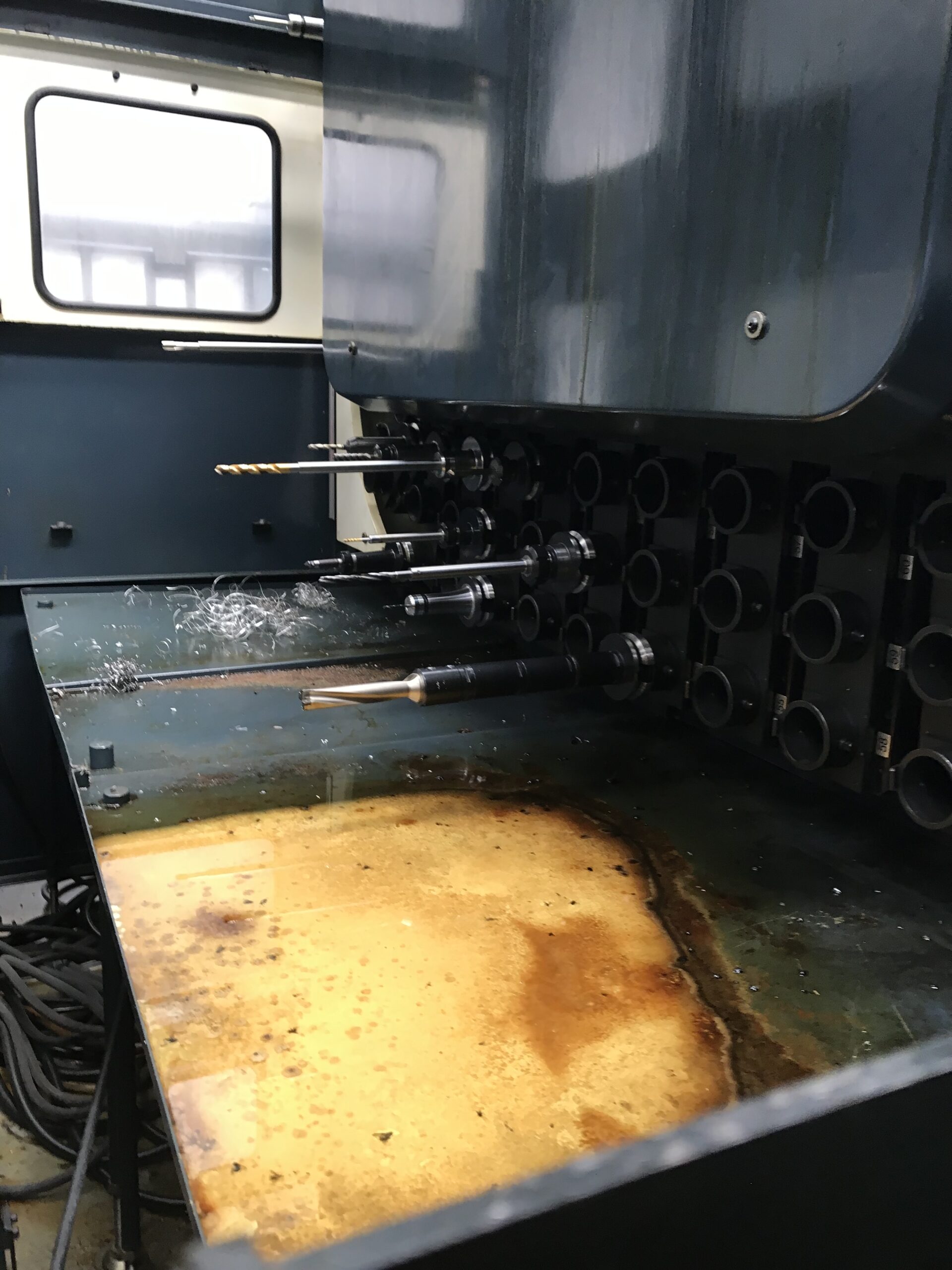

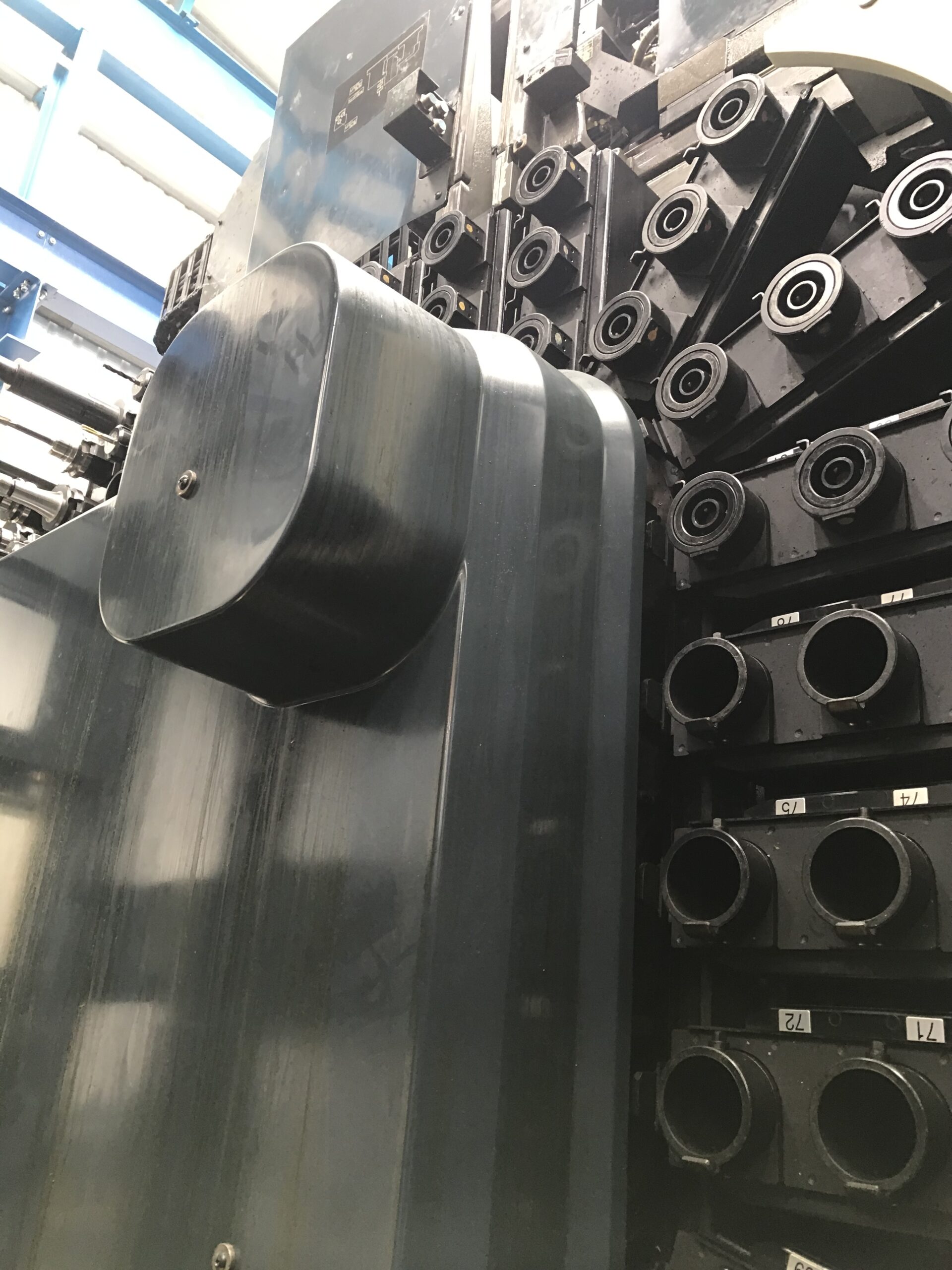

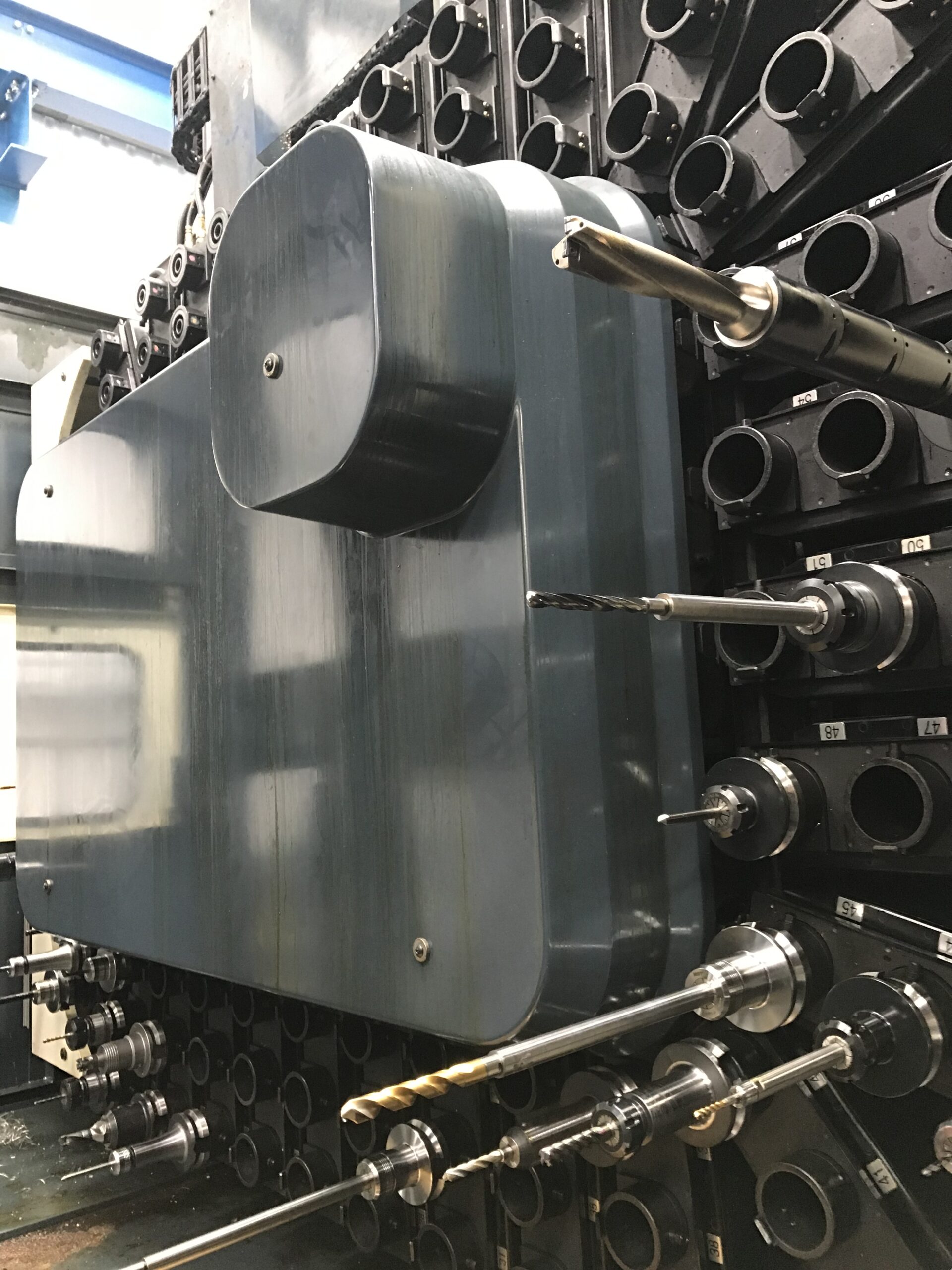

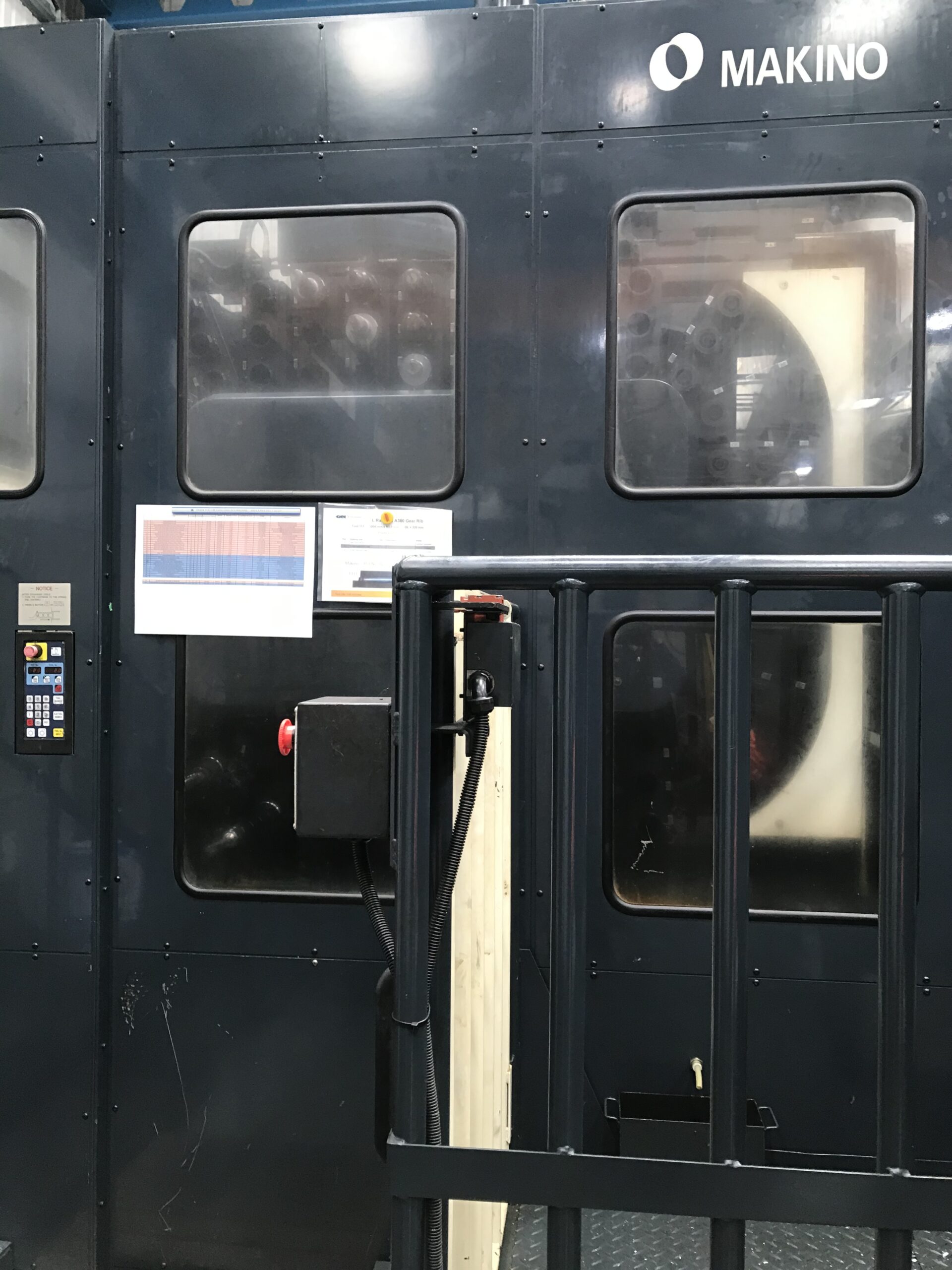

Automatic Tool Changer:
Magazine capacity: 99
Tool shank: MAS403-BT50
Maximum diameter of tool: 300mm
Maximum length of tool: 700mm
Maximum weight of tool: 30kg
Machine Weight:
32,000kg
For further information on this machine, please contact us on;
+44(0)1506 417620
+44(0)7831 293503
