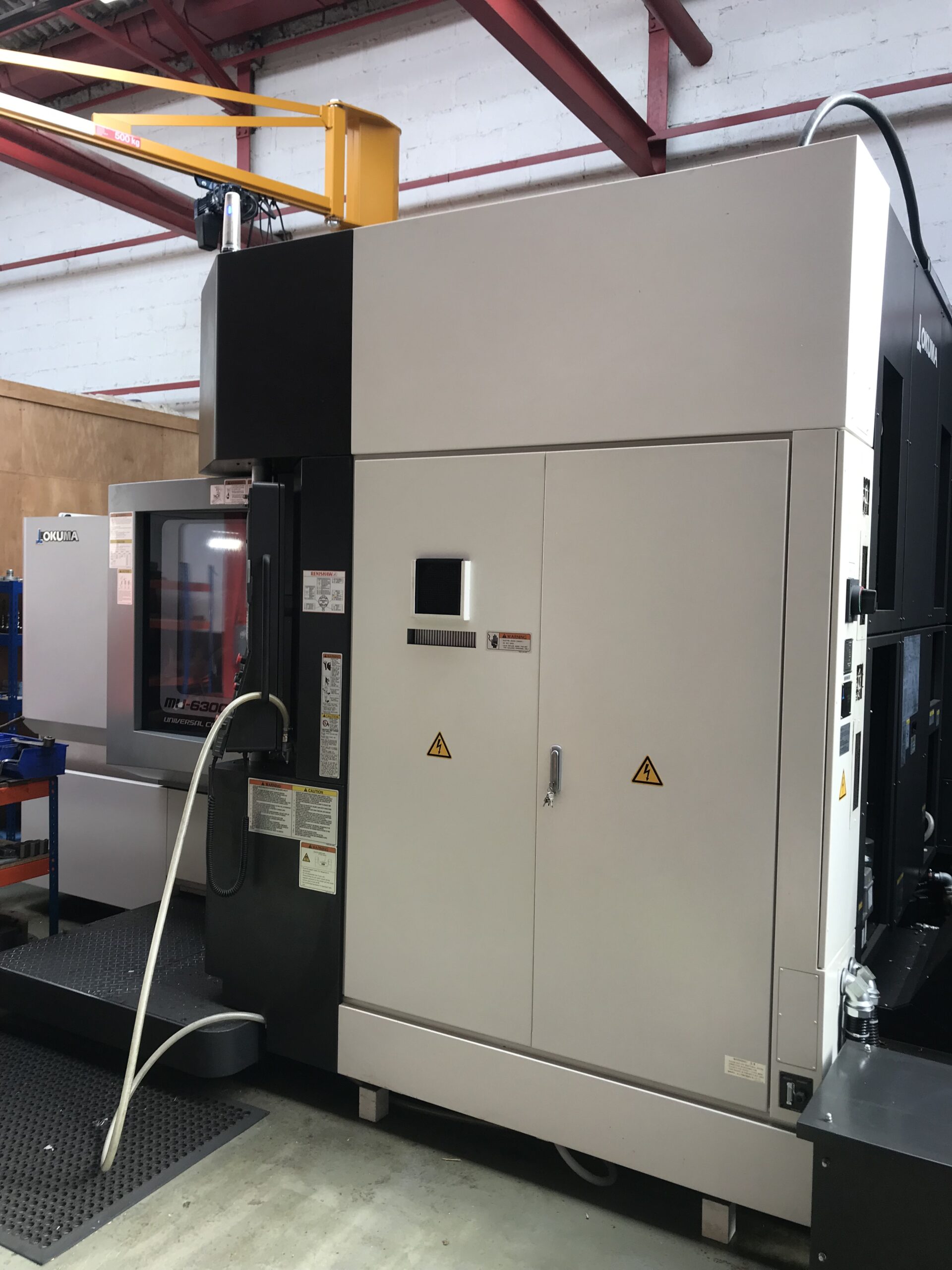

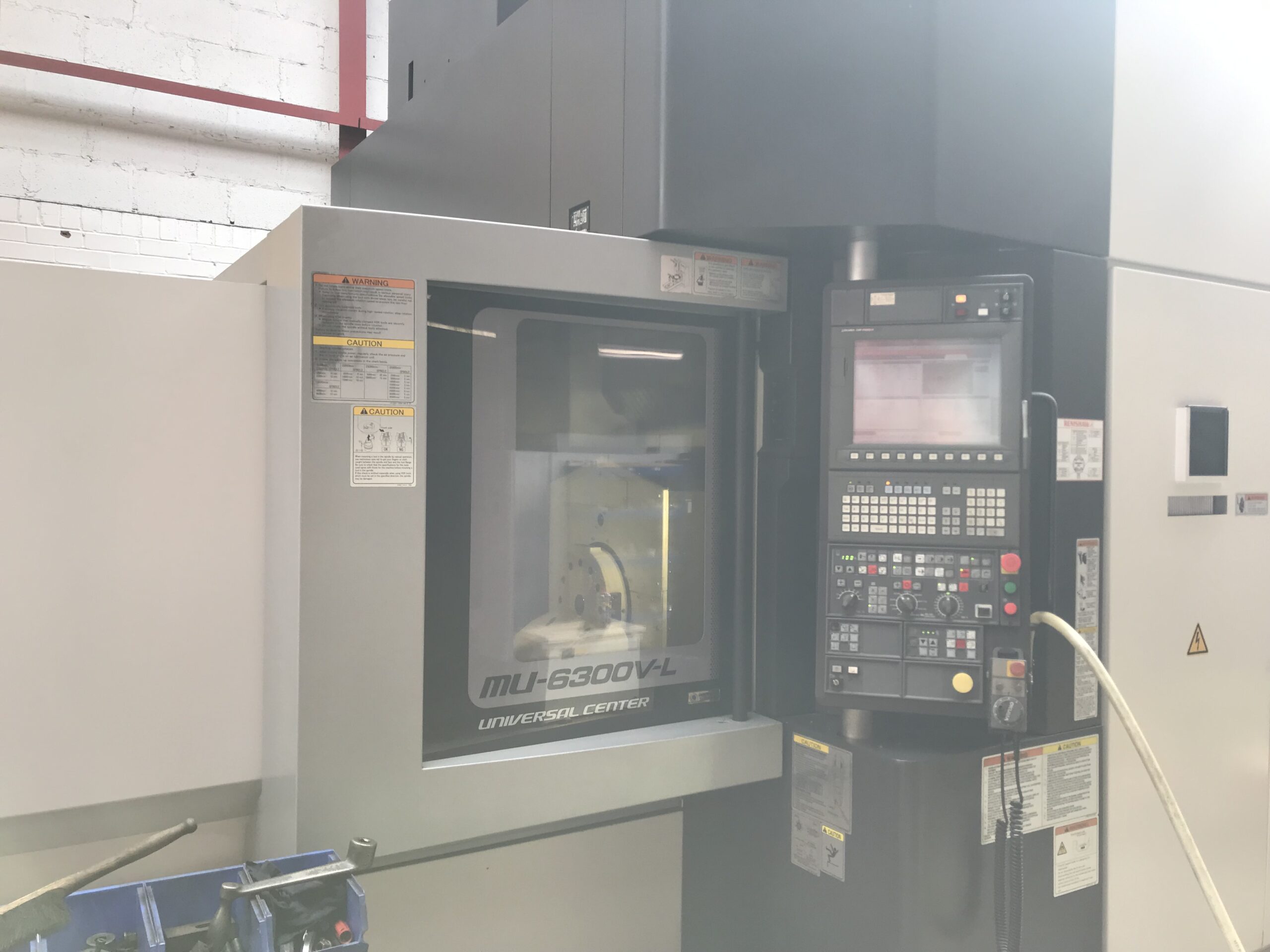

SOLD 2016 OKUMA MU-6300V-L 5-Axis Vertical Turning & Machining Centre

Manufacturer: OKUMA

Series/Model: MU-6300V-L 5-Axis Vertical Turning & Machining Centre

Control System: OSP-P300SA-H (19inch OSP suite)

Year of Manufacture: 2016 (*installed in 2018 – low hours machine)

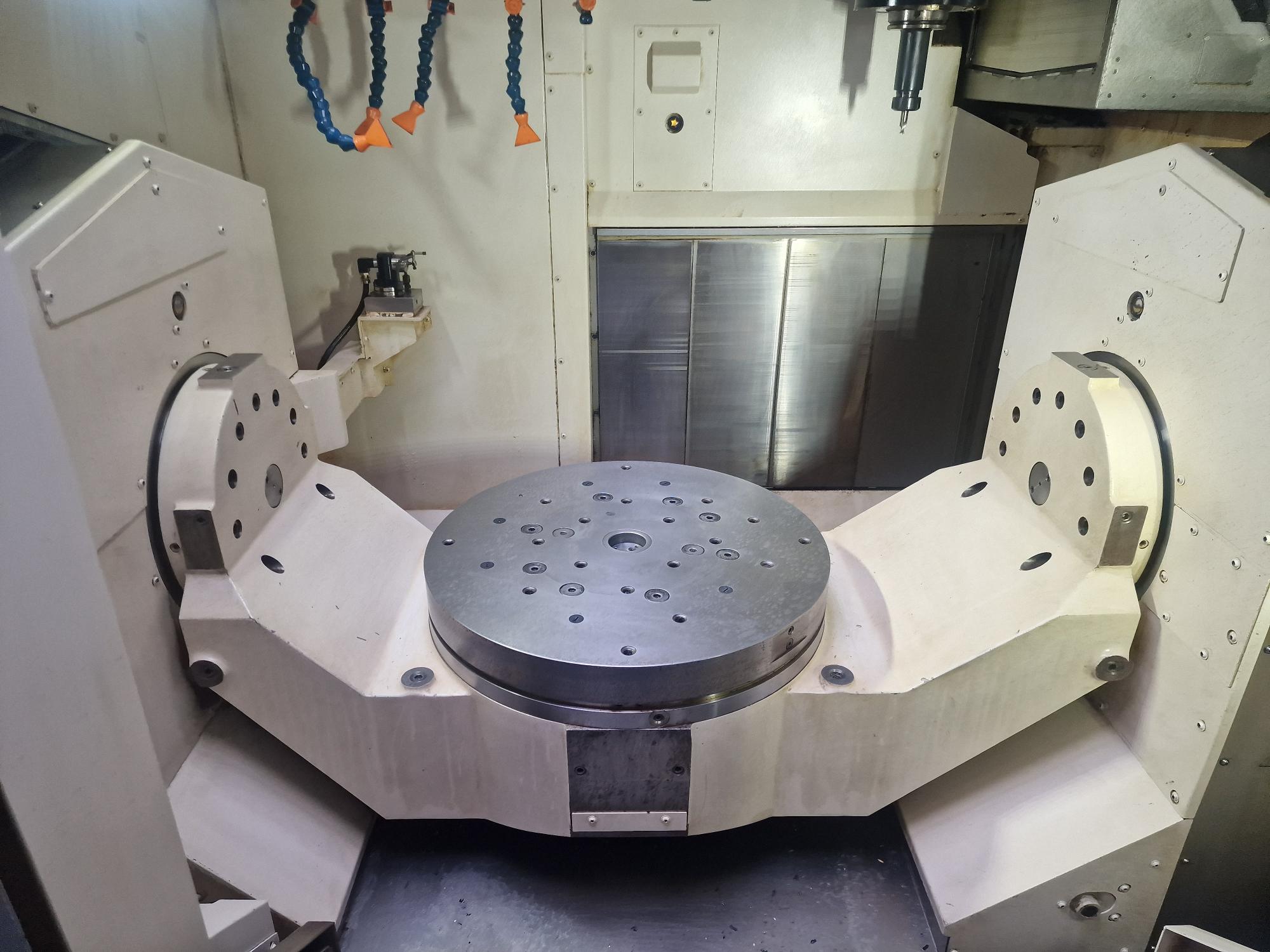

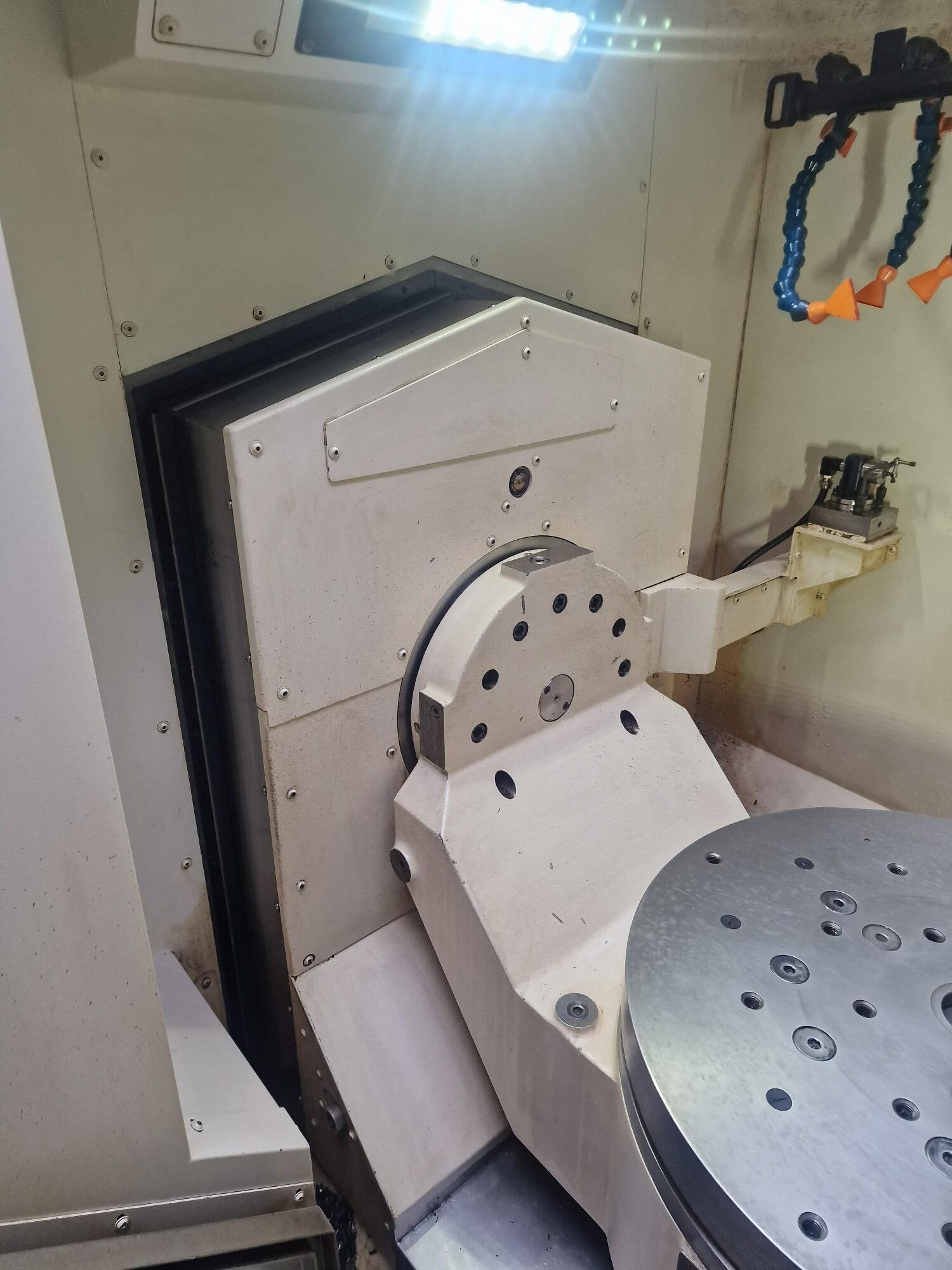

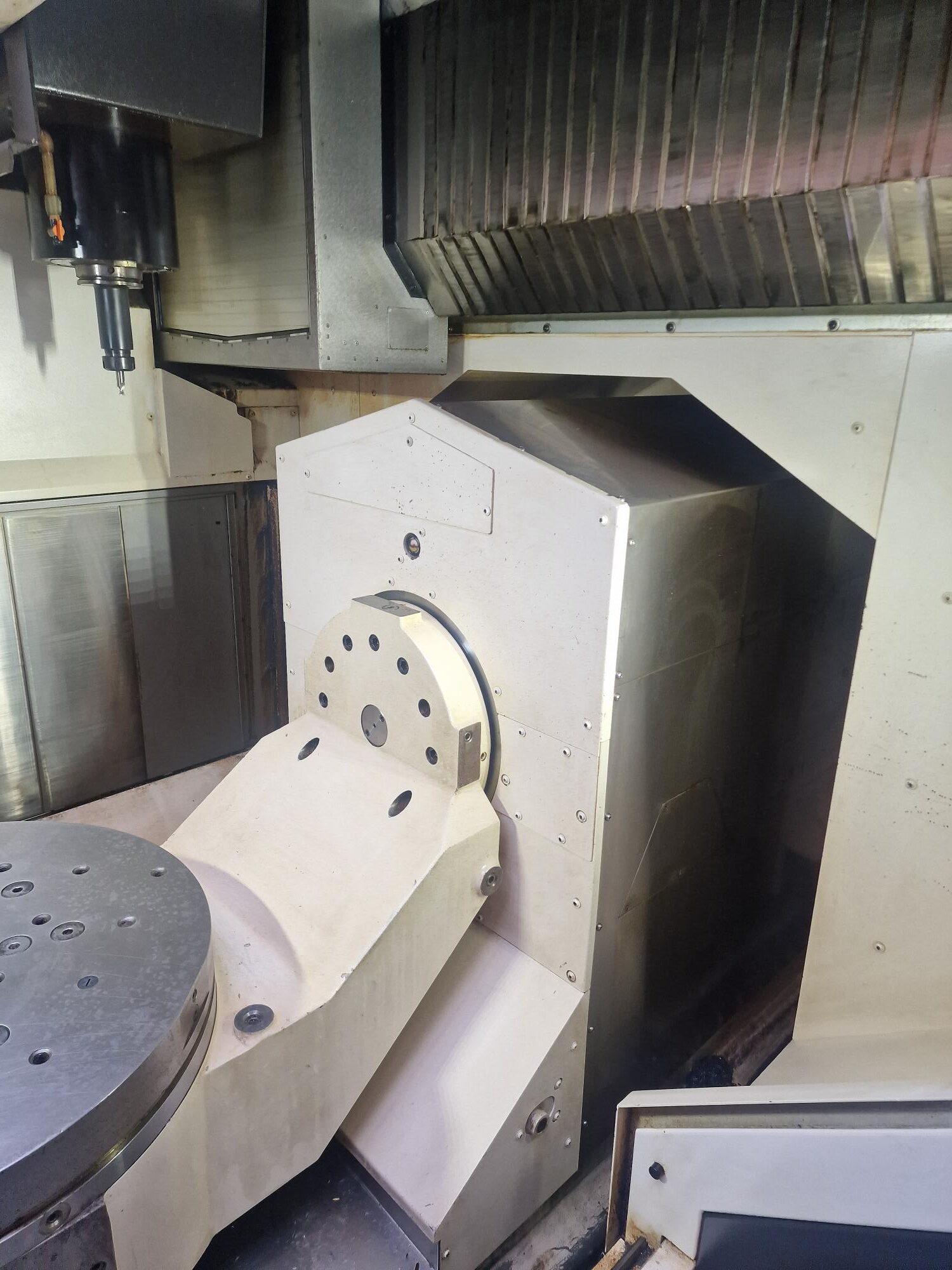

Machine Information: The UNIVERSAL CENTER MU-V provides the power of process-intensive machining and high-speed, high-accuracy cutting through the combination of turning and 5-axis multitasking machining. The fast yet powerful trunnion table allows simultaneous 5-axis machining and one-chuck multi-sided machining of complex shapes.

Machine Price:

£ POA

Product description

Technical Specification:

-Multi-tasking spindle, 50 – 10,000

-26/18.5kW (10 min./cont.) for MU-6300V-L

-Absoscale X/Y/Z-axis

-Table Size: 630mm

-Maximum Worksize: 830mm x H550mm

-Turning RPM: 800rpm

-Milling Spindle Speeds: 10,000rpm

-Spindle: HSK-A100

-Shower coolant supply

-Tool breakage detection incl. auto tool length offset Renishaw sensor TS27R

-Pre-arrangement for Auto zero offset function

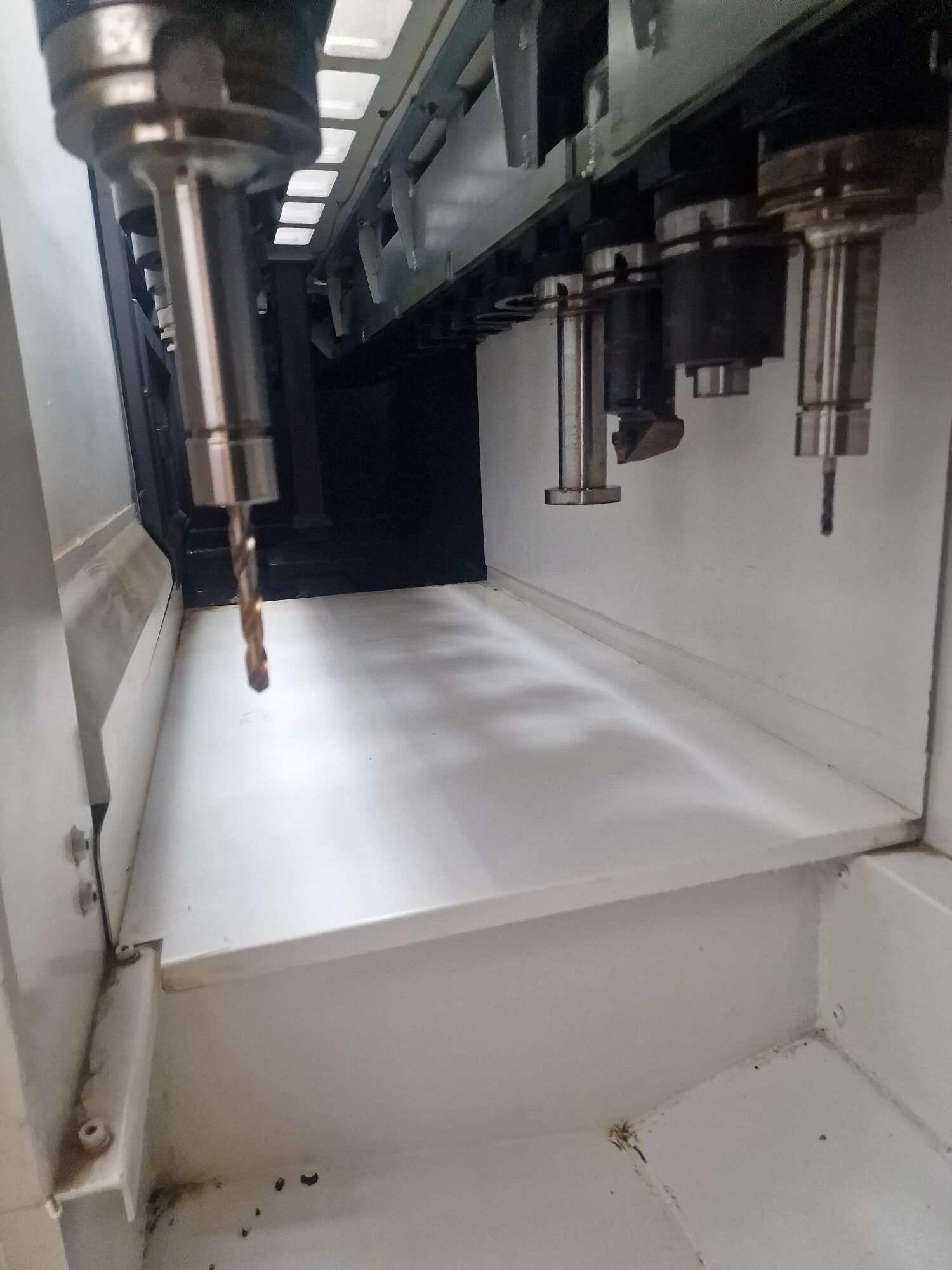

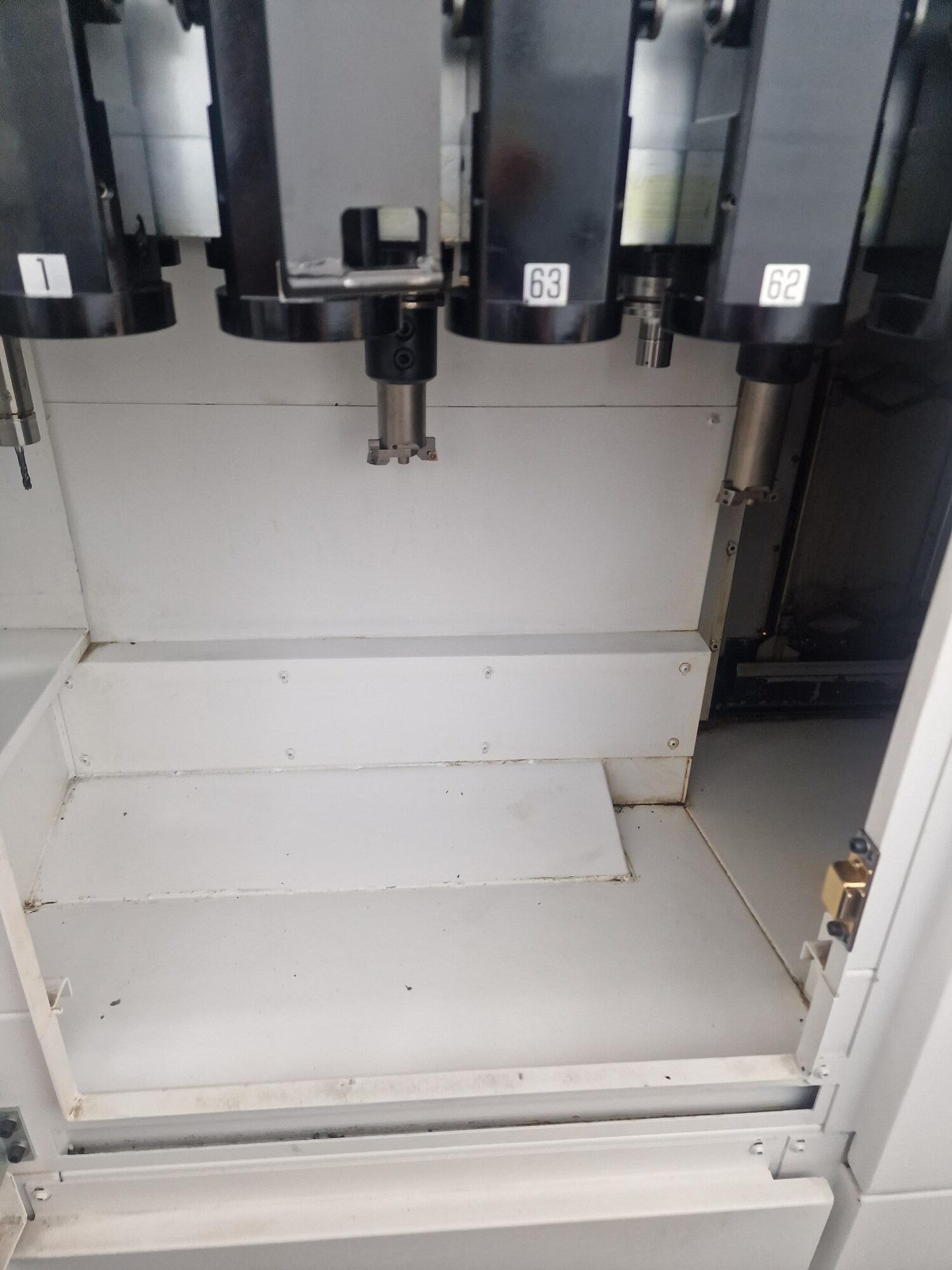

-64-tool ATC (Chain type) for HSK-A100 spindle

-Windows API Library 2

Options:

-Simultaneous 5-axis KIT

-SUPER NURBS 5-axis

-Tool center point control II (incl. tool posture compensation)

-Anchored tool tip manual feed

-Table origin coordinate system manual feed

-Slope machining function

-Inverse time feed

-DNC-DT

-Tool posture command

-Gear machining function

Swarf & Coolant Management:

-SIII conveyor

-Coolant tank complete with equipment (increased capacity)

-Chip bucket

-RMP600 Radio inspection probe system (strain gauge)

-RMI Receiver & Mounting bracket, Stylus, shank, Inspection+ software

For further information/full technical specification on this machine, please contact us on:

+44(0)1506 417620

+44(0)7831 293503
